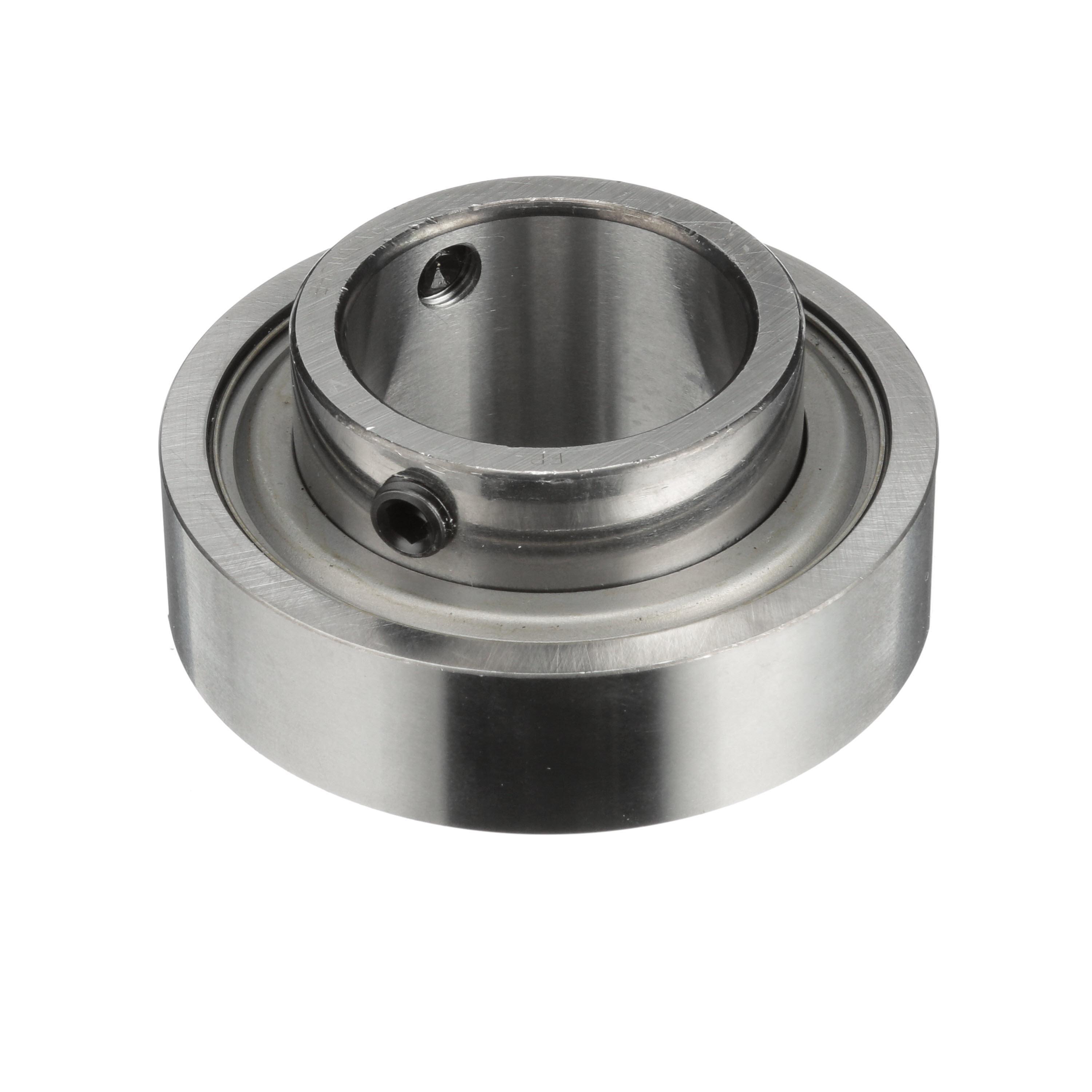

Browning® 767207 BROSLS123
Browning® 767207 SLS 100 Light Duty Straight Bore Ball Bearing Insert, 1-7/16 in Dia Bore, 2.8346 in OD, 1 Rows, 1-9/32 in W, 5782 lb Dynamic/3493 lb Static Load
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROSLS123
- Alt Part Number: SLS-123
- MPN: 767207
- UPC: 662460344010
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Insert, Light Duty Straight Bore, Series: SLS 100, 1-7/16 in Bore, 2.8346 in OD, 1 Rows, 1-9/32 in Width, Double Seal Closure, 5782 lb Dynamic/3493 lb Static Load, Steel Bearing, Nitrile Rubber Seal, Plastic Cage, 2500 rpm Maximum, -20 to 200 deg F, Black Oxide Coated
| Bearing Material | : | Steel |
| Bore Diameter | : | 1-7/16 in |
| Cage Material | : | Plastic |
| Closure Type | : | Double Seal |
| Finish | : | Black Oxide Coated |
| Load Capacity | : | 5782 lb Dynamic/3493 lb Static |
| Maximum Speed | : | 2500 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 2.8346 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | SLS 100 |
| Temperature Rating | : | -20 to 200 deg F |
| Type | : | Light Duty Straight Bore |
| Width | : | 1-9/32 in |
- Cylindrical O.D. narrow inner ring bearing insert with no lubrication
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
