Browning® 767126 BROSSF3TS112
  1. pin-int

Browning® 767126 BROSSF3TS112

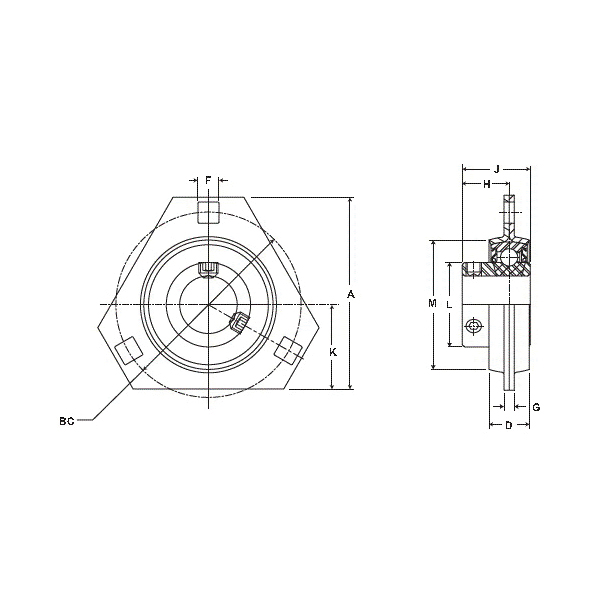

Browning® 767126 SSF3TS 100 Non-Expansion Light Duty Round/Straight Bore Ball Bearing Unit, 3/4 in Dia Bore, 2-13/16 in Dia Bolt Circle, 3-Bolt Triangular Flange Mount

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROSSF3TS112
  • Alt Part Number: SSF3TS-112
  • MPN: 767126
  • UPC: 662460337296
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Unit, Non-Expansion Light Duty Round/Straight Bore, Series: SSF3TS 100, 3/4 in Bore, 2-13/16 in Diameter Bolt Circle, 3-Bolt Triangular Flange Mounting, 1-1/16 in Overall Depth, 3 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2611 lb Dynamic/1444 lb Static Load, 4000 rpm Maximum, 200 deg F, Uncoated

Bearing Material      :      Steel
Bolt Circle Diameter      :      2-13/16 in
Bore Diameter      :      3/4 in
Finish      :      Uncoated
Flange Mounting Type      :      3-Bolt Triangular
Load Capacity      :      2611 lb Dynamic/1444 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      4000 rpm
Overall Depth      :      1-1/16 in
Overall Height      :      3 in
Seal Material      :      Nitrile Rubber
Series      :      SSF3TS 100
Temperature Rating      :      200 deg F
Type      :      Non-Expansion Light Duty Round/Straight Bore
  • A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Semi solid cast iron base
  • Zone hardened inner race
  • Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
  • Plastic retainer
  • 52100 black oxide coated insert
  • Without seal flinger
