Browning® 766957 BROVF2B216
  1. pin-int

Browning® 766957 BROVF2B216

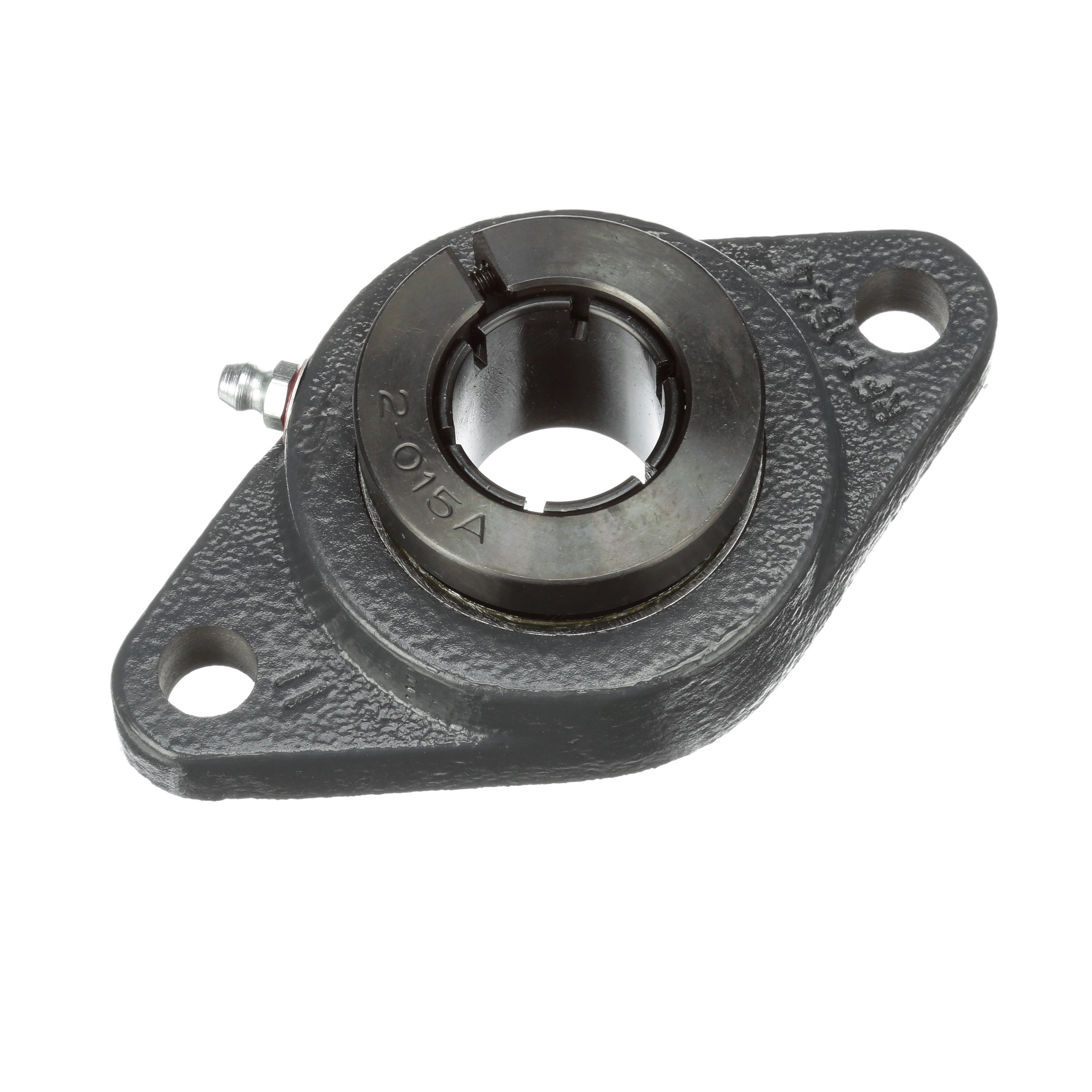

Browning® 766957 VF2B 200 Non-Expansion Normal Duty Ball Bearing Unit With Seal Flinger, 1 in Dia Bore, 3-57/64 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 4-7/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVF2B216
  • Alt Part Number: VF2B-216
  • MPN: 766957
  • UPC: 662460347189
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Unit, Non-Expansion Normal Duty, Series: VF2B 200, 1 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 4-7/8 in Overall Length/Diameter, 1-1/2 in Overall Depth, 2-3/4 in Overall Height, BOA Concentric Locking Device, Steel Bearing, Nitrile Rubber Seal, 2801 lb Dynamic/1651 lb Static Load, 5500 rpm Maximum, 200 deg F, Gray Painted

Bearing Material      :      Steel
Bolt Center-to-Center Length      :      3-57/64 in
Bore Diameter      :      1 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      2801 lb Dynamic/1651 lb Static
Locking Device      :      BOA Concentric
Maximum Speed      :      5500 rpm
Overall Depth      :      1-1/2 in
Overall Height      :      2-3/4 in
Overall Length/Diameter      :      4-7/8 in
Seal Material      :      Nitrile Rubber
Series      :      VF2B 200
Temperature Rating      :      200 deg F
Type      :      Non-Expansion Normal Duty
  • A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Semi solid cast iron base
  • Zone hardened inner race
  • BOA is a concentric locking collar clamp design that results in near-perfect concentricity of the shaft to the bearing bore
  • Nylon retainer
  • 52100 bearing insert
  • NLGI 2 lithium complex grease lubrication
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_VF2B212_Specification_Sheet.pdf
