Browning® 766861 BROVTWE127
  1. pin-int

Browning® 766861 BROVTWE127

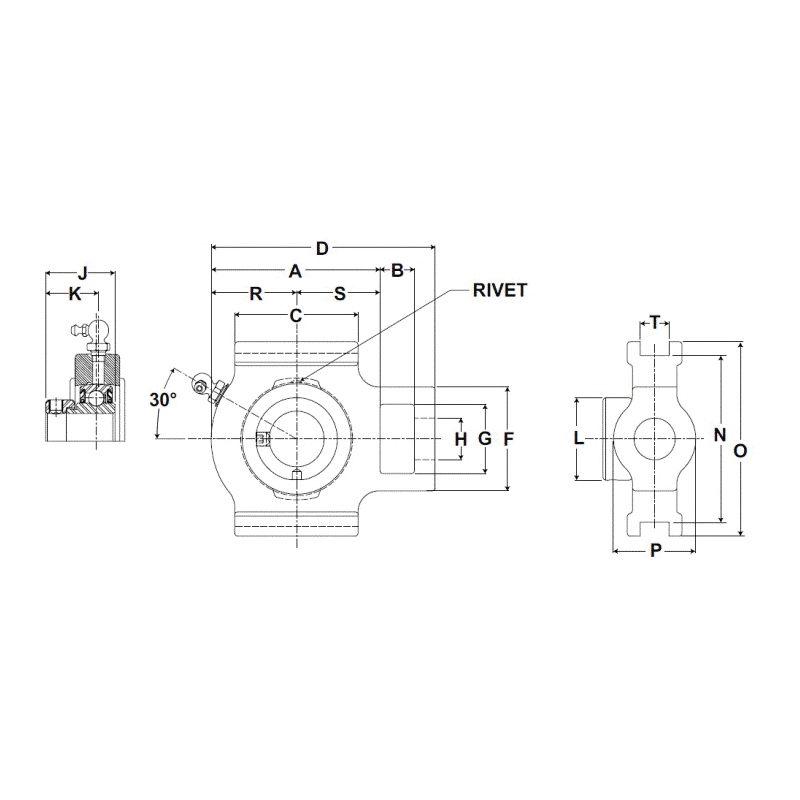

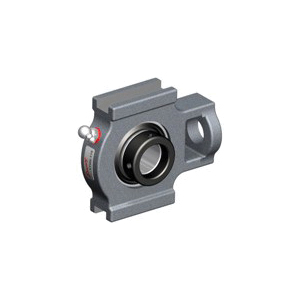

Browning® 766861 VTWE Non-Expansion Intermediate Duty Take-Up Ball Bearing Unit, 1-11/16 in Dia Bore, 5-3/4 in L x 2-1/8 in W x 4-1/2 in H, 7901 lb Dynamic/5139 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVTWE127
  • Alt Part Number: VTWE-127
  • MPN: 766861
  • UPC: 662460339610
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Take-Up Ball Bearing Unit, Non-Expansion Intermediate Duty, Series: VTWE, 1-11/16 in Bore, 5-3/4 in Length, 2-1/8 in Width, 4-1/2 in Height, 7901 lb Dynamic/5139 lb Static Load, For Use With: 18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frames, Steel Bearing, -20 to 200 deg F, Black Oxide Coated

Bearing Material      :      Steel
Bore Diameter      :      1-11/16 in
Finish      :      Black Oxide Coated
Height      :      4-1/2 in
Length      :      5-3/4 in
Load Capacity      :      7901 lb Dynamic/5139 lb Static
Series      :      VTWE
Suitable For Use With      :      18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frames
Temperature Rating      :      -20 to 200 deg F
Type      :      Non-Expansion Intermediate Duty
Width      :      2-1/8 in
  • Eccentric locking device
  • Single lip contact seal
  • Cast iron housing material
  • Nylon retainer
  • Wide slot
  • Zone hardened inner race
