Browning® 765886 BROVPS120CTY
  1. pin-int

Browning® 765886 BROVPS120CTY

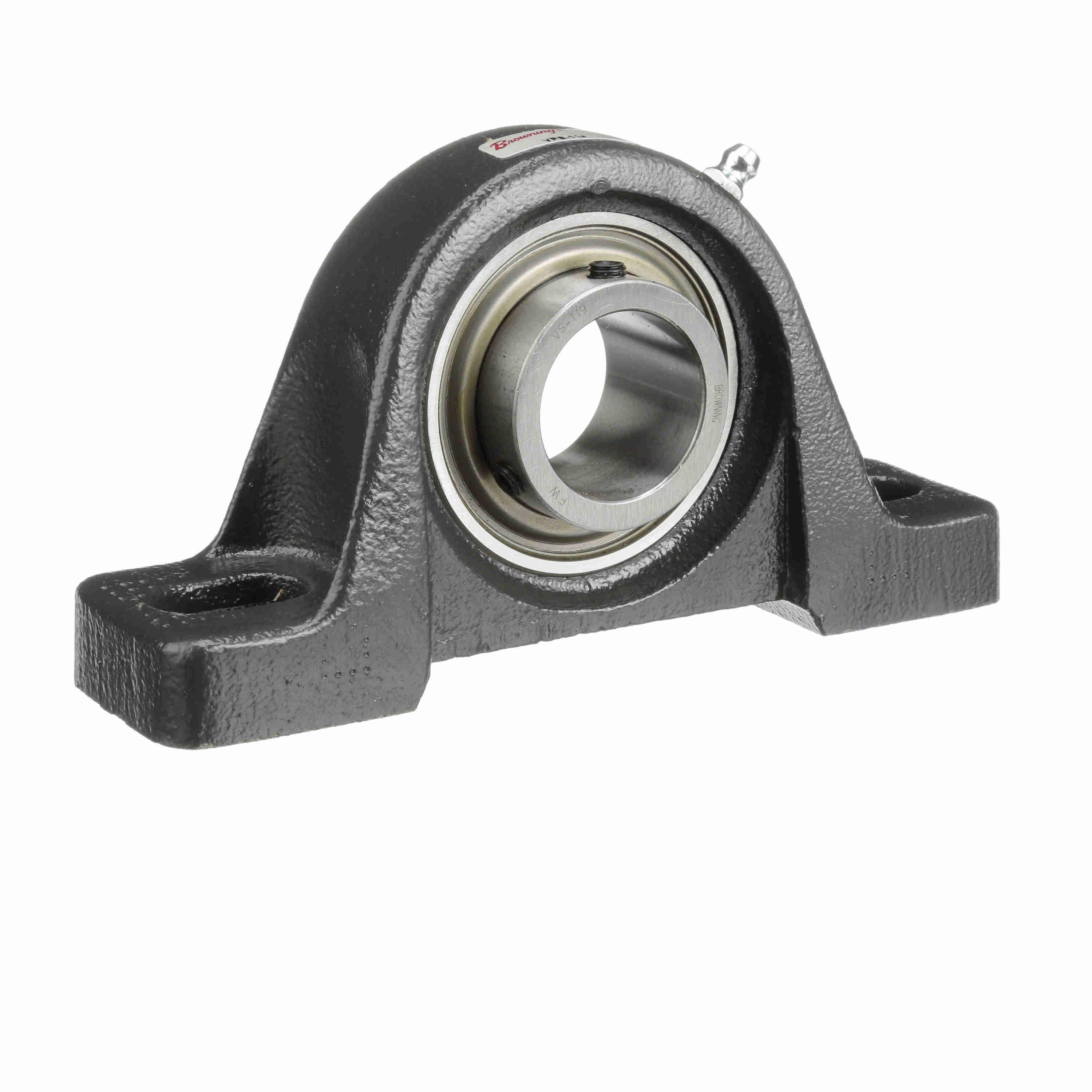

Browning® 765886 VPS 100 Intermediate Duty High Base Pillow Block Ball Bearing Unit, 1-1/4 in Dia Bore, 4-5/8 to 5-3/8 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 6-3/4 in OAL x 3-11/16 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROVPS120CTY
  • Alt Part Number: VPS-120 CTY
  • MPN: 765886
  • UPC: 662289981991
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Pillow Block Ball Bearing Unit, Intermediate Duty High Base, Series: VPS 100, 1-1/4 in Bore, 4-5/8 to 5-3/8 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6-3/4 in Overall Length, 3-11/16 in Overall Height, Two-Bolt Base Mounting, 1-3/4 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 5782 lb Dynamic/3493 lb Static Load, 200 to 250 deg F, 3000 rpm Maximum, Cast Iron

Base Width      :      1-3/4 in
Base to Bore Centerline      :      1-7/8 in
Bolt Center-to-Center Length      :      4-5/8 to 5-3/8 in
Bore Diameter      :      1-1/4 in
Expansion Type      :      Non-Expansion (Fixed)
Load Capacity      :      5782 lb Dynamic/3493 lb Static
Locking Device      :      Set Screw
Material      :      Cast Iron
Maximum Speed      :      3000 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      3-11/16 in
Overall Length      :      6-3/4 in
Seal Type      :      Single Lip
Series      :      VPS 100
Temperature Rating      :      200 to 250 deg F
Type      :      Intermediate Duty High Base
  • A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
  • An anti-rotation rivet prevents outer ring creep or rotation within the housing
  • Semi solid cast iron rugged base design provides an excellent mounting foundation
  • Zone hardened inner race
  • Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
  • Nylon retainer
  • 52100 steel insert
  • Alemite fitting lubrication
  • Plugged lubed hole
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_765886_Catalog.pdf
