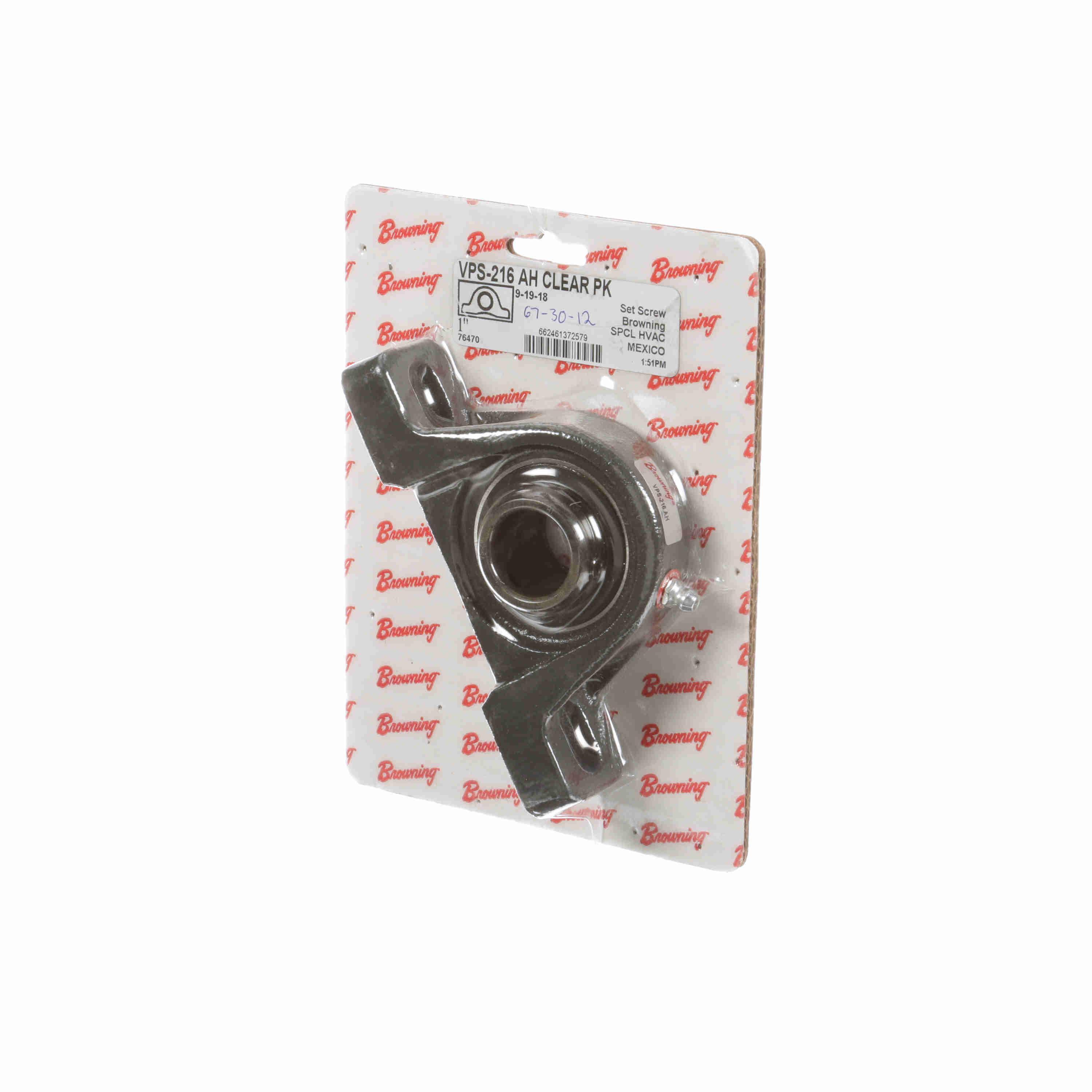

Browning® 764701 BROVPS216AHCLEARPK

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with set screw, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

Browning® Pillow Block Ball Bearing, 1-Piece Normal Duty, Series: VPS 200, 1-1/2 in Bore Dia, 4-7/8 to 5-7/8 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 7-1/8 in Overall Length, 1-3/8 in Overall Width, 4 in Overall Height, Two-Bolt Base Mount, Straight Bore Type, 1.938 in Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion, 2801 lb Dynamic, 200 deg F, 3500 rpm Maximum, 52100 Steel, Black Oxide

• Epoxy powder coated cast iron housing
• Zone hardened inner ring with 120 deg spacing set screw locking with diamond faceted set screws
• Air handling noise check for quiet operation
• Looser than standard housing fit for ease of alignment on lightweight frames

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764269_Catalog.pdf
