Browning® 764427 BROVFBS219

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

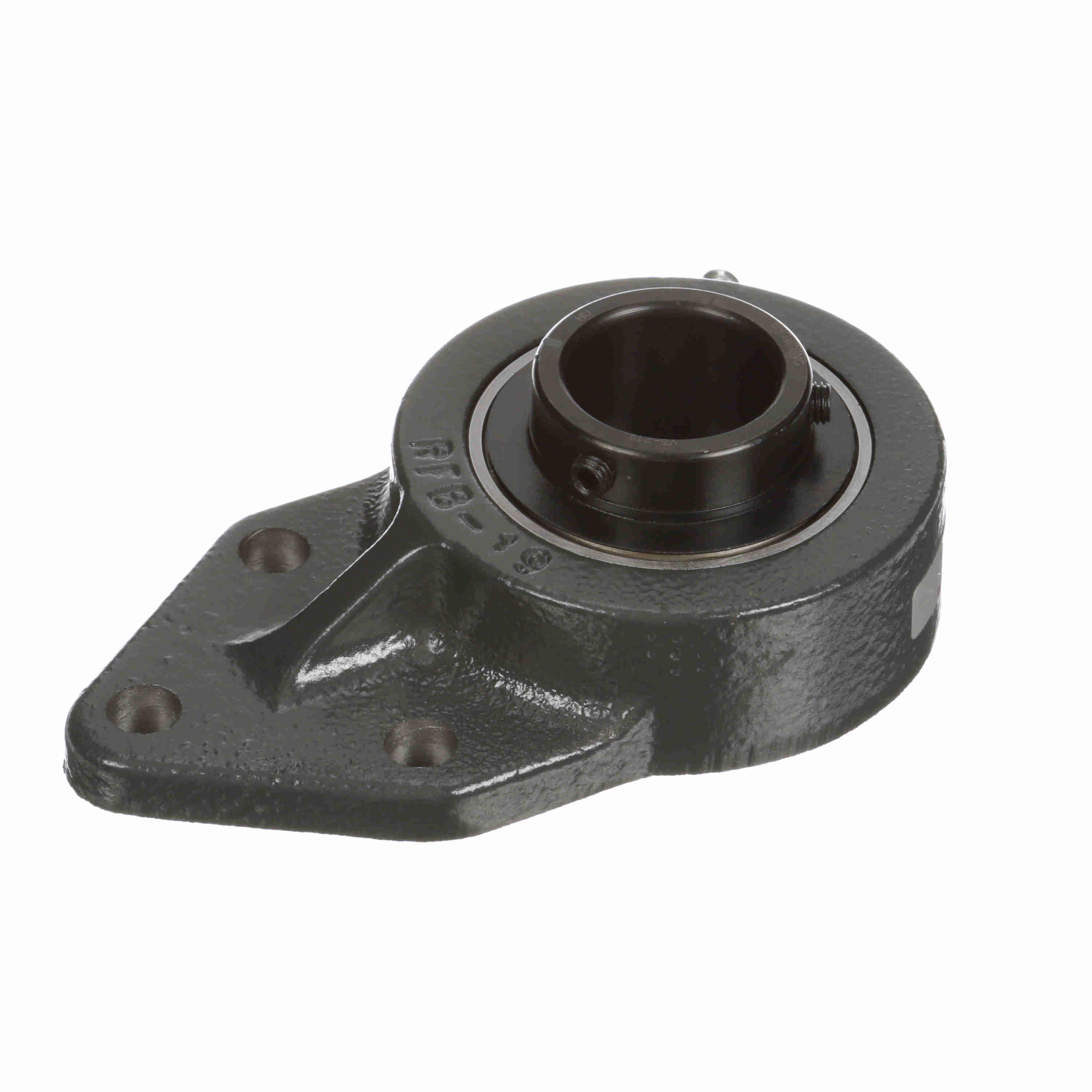

Browning® Ball Bearing Unit, Non-Expansion Normal Duty Round/Straight Bore, Series: VFBS 200, 1-3/16 in Bore, 1-7/8 in Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 3-7/32 in Overall Length/Diameter, 1-5/8 in Overall Depth, 5-23/64 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 4500 rpm Maximum, 200 deg F, Gray Painted

• A positive-contact molded nitrile rubber contact seal with an auxiliary flinger element comes standard
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron base
• Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
• Nylon retainer
• 52100 black oxide coated insert
• Powder coat epoxy cast iron housing
• Used with Bore Bushings
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
