Browning® 764101 BROSF2SS219

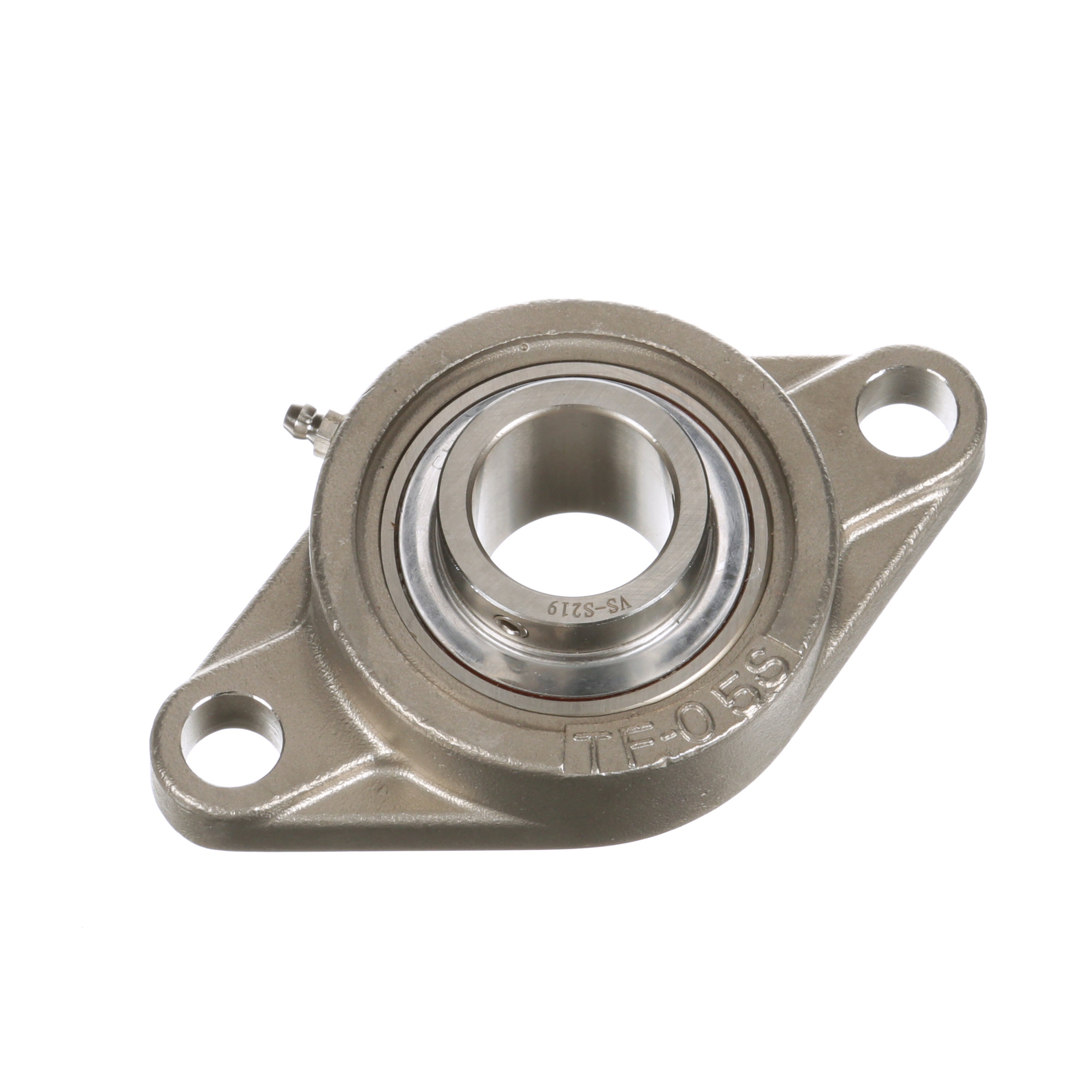

Browning® 764101 SF2S-S Non-Expansion Normal Duty Ball Bearing Unit With Seal Flinger, 1-3/16 in Dia Bore, 4-19/32 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 5-5/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROSF2SS219
  • Alt Part Number: SF2S-S219
  • MPN: 764101
  • UPC: 662460400723
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Ball Bearing Unit, Non-Expansion Normal Duty, Series: SF2S-S, 1-3/16 in Bore, 4-19/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 1-37/64 in Overall Depth, 3-9/64 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 4500 rpm Maximum, 200 deg F, Gray Painted

Bearing Material      :      Stainless Steel
Bolt Center-to-Center Length      :      4-19/32 in
Bore Diameter      :      1-3/16 in
Finish      :      Gray Painted
Flange Mounting Type      :      2-Bolt
Load Capacity      :      4381 lb Dynamic/2567 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      4500 rpm
Overall Depth      :      1-37/64 in
Overall Height      :      3-9/64 in
Overall Length/Diameter      :      5-5/8 in
Seal Material      :      Nitrile Rubber
Series      :      SF2S-S
Temperature Rating      :      200 deg F
Type      :      Non-Expansion Normal Duty
  • 440C Stainless Steel bearing inner and outer ring with setscrew lock
  • 304 Passivated stainless steel investment cast housing
  • Molded silicone single lip contact seal with 300 series stainless steel flinger
  • H1 Food Grade grease
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764105_Installation_Manual.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_SF2SS212_Specification_Sheet.pdf
