Browning® 764094 BROSF4SS220S

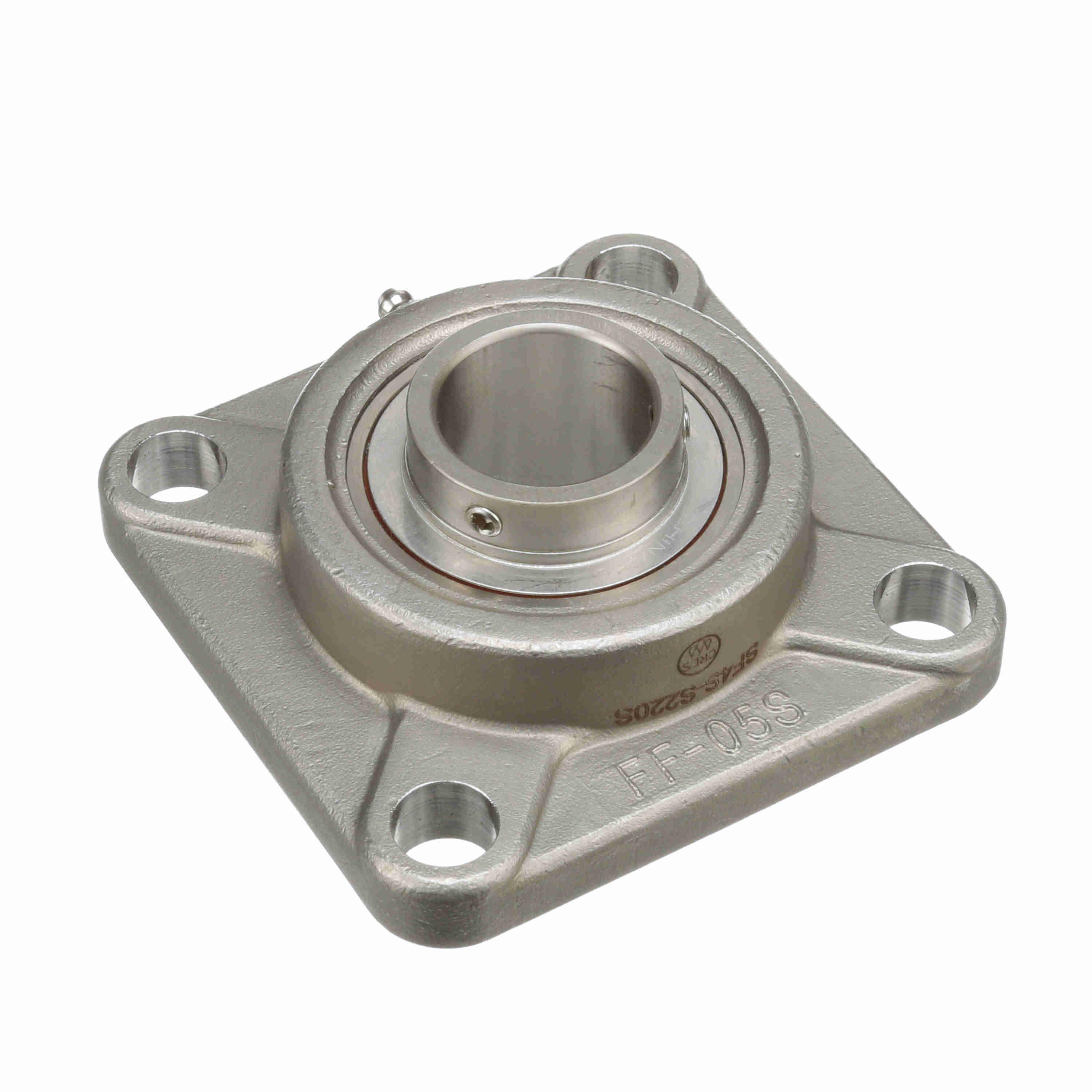

Browning® 764094 SF4S-S Non-Expansion Extra Heavy Duty Ball Bearing Unit, 1-1/4 in Dia Bore, 3-1/4 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 4-1/4 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROSF4SS220S
- Alt Part Number: SF4S-S220S
- MPN: 764094
- UPC: 662460400662
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
Browning® Ball Bearing Unit, Non-Expansion Extra Heavy Duty, Series: SF4S-S, 1-1/4 in Bore, 3-1/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 4-1/4 in Overall Length/Diameter, 1-37/64 in Overall Depth, Set Screw Locking Device, Stainless Steel Bearing, Nitrile Rubber Seal, 4381 lb Dynamic/2567 lb Static Load, 4500 rpm Maximum, 250 deg F, Uncoated
| Bearing Material | : | Stainless Steel |
| Bolt Center-to-Center Length | : | 3-1/4 in |
| Bore Diameter | : | 1-1/4 in |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Load Capacity | : | 4381 lb Dynamic/2567 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4500 rpm |
| Overall Depth | : | 1-37/64 in |
| Overall Length/Diameter | : | 4-1/4 in |
| Seal Material | : | Nitrile Rubber |
| Series | : | SF4S-S |
| Temperature Rating | : | 250 deg F |
| Type | : | Non-Expansion Extra Heavy Duty |
- 440C Stainless Steel bearing inner and outer ring with setscrew lock 304 Passivated stainless steel investment cast housing Molded silicone single lip contact seal with 300 series stainless steel flinger H1 Food Grade grease
