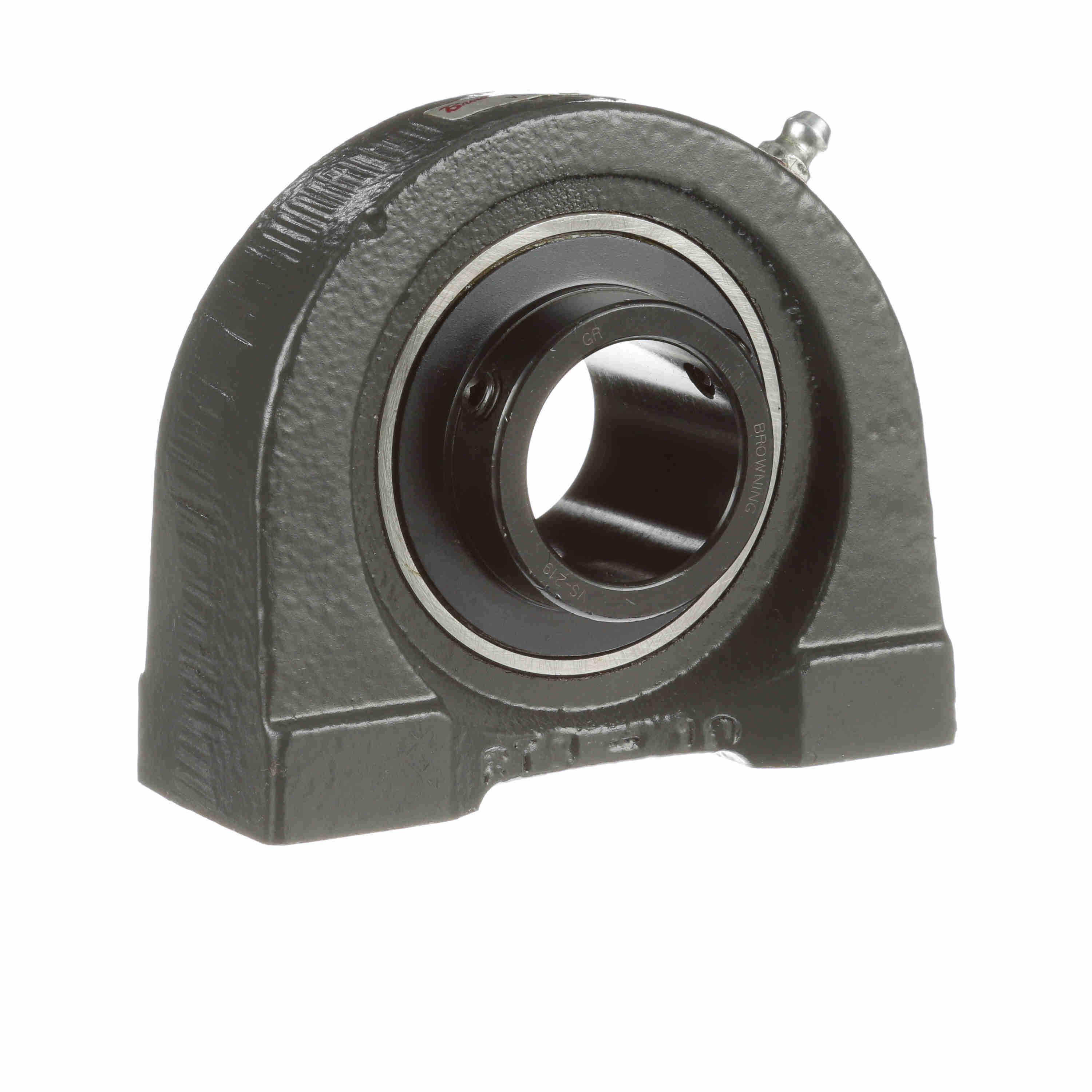

Browning® 732692 BROVTBS25MM

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

Browning® Pillow Block Ball Bearing Unit, Normal Duty, Series: VTBS, 25 mm Bore, 50.8 mm Bolt Center-to-Center Length, 36.5 mm Base to Bore Centerline, 36.5 mm Overall Length, 71.4 mm Overall Height, Tapped Base Mounting, 38.1 mm Base Width, Set Screw Locking Device, Single Lip Contact with Flinger Seal, Non-Expansion (Fixed) Expansion, 12459 N Dynamic/7344 N Static Load, 94 to 121 deg C, 5500 rpm Maximum, Cast Iron

• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Semi solid cast iron rugged base design provides an excellent mounting foundation
• Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
• Nylon retainer
• 52100 bearing steel insert
• Alemite fitting lubrication
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_732691_Catalog.pdf
