Browning® 730026 BROFBE920200
  1. pin-int

Browning® 730026 BROFBE920200

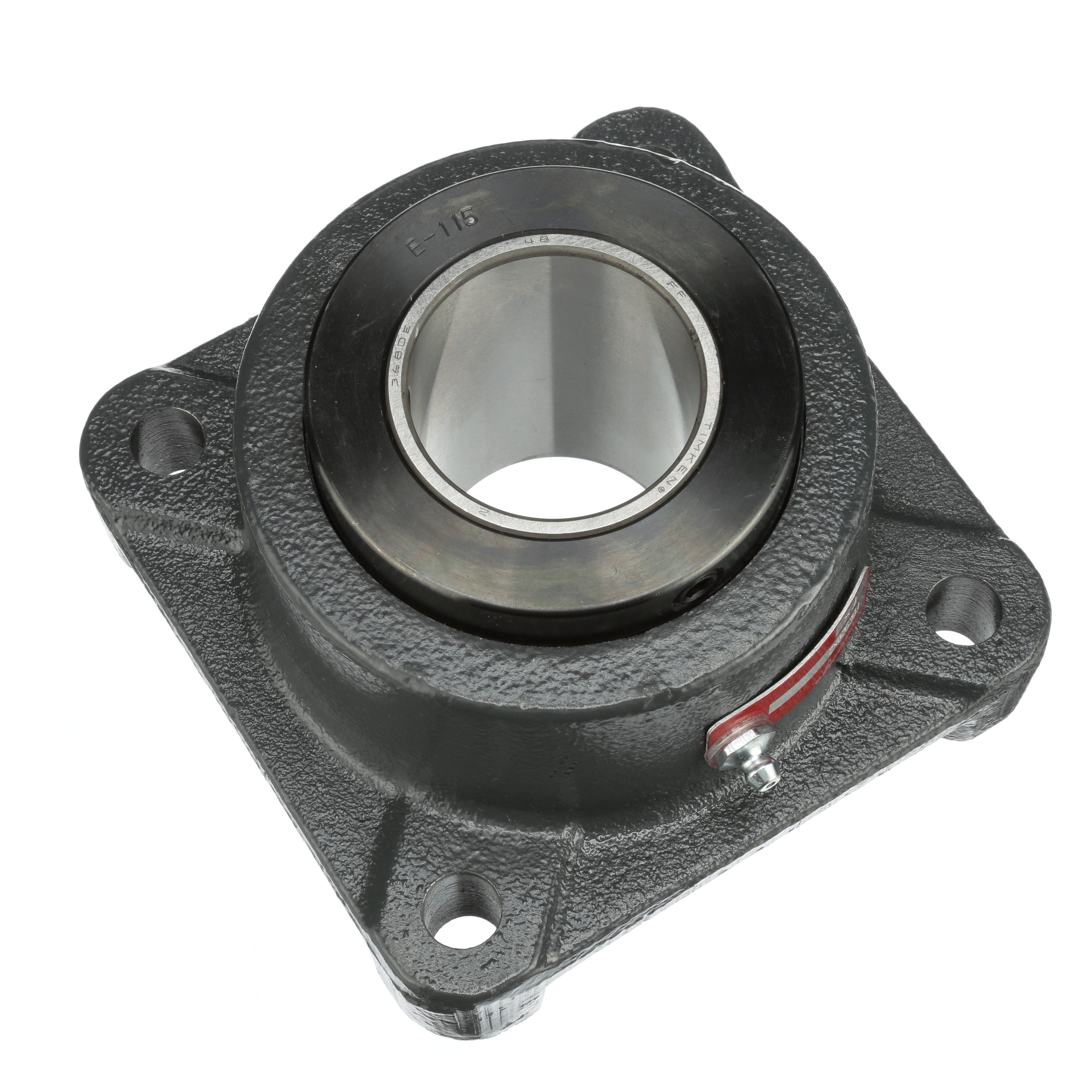

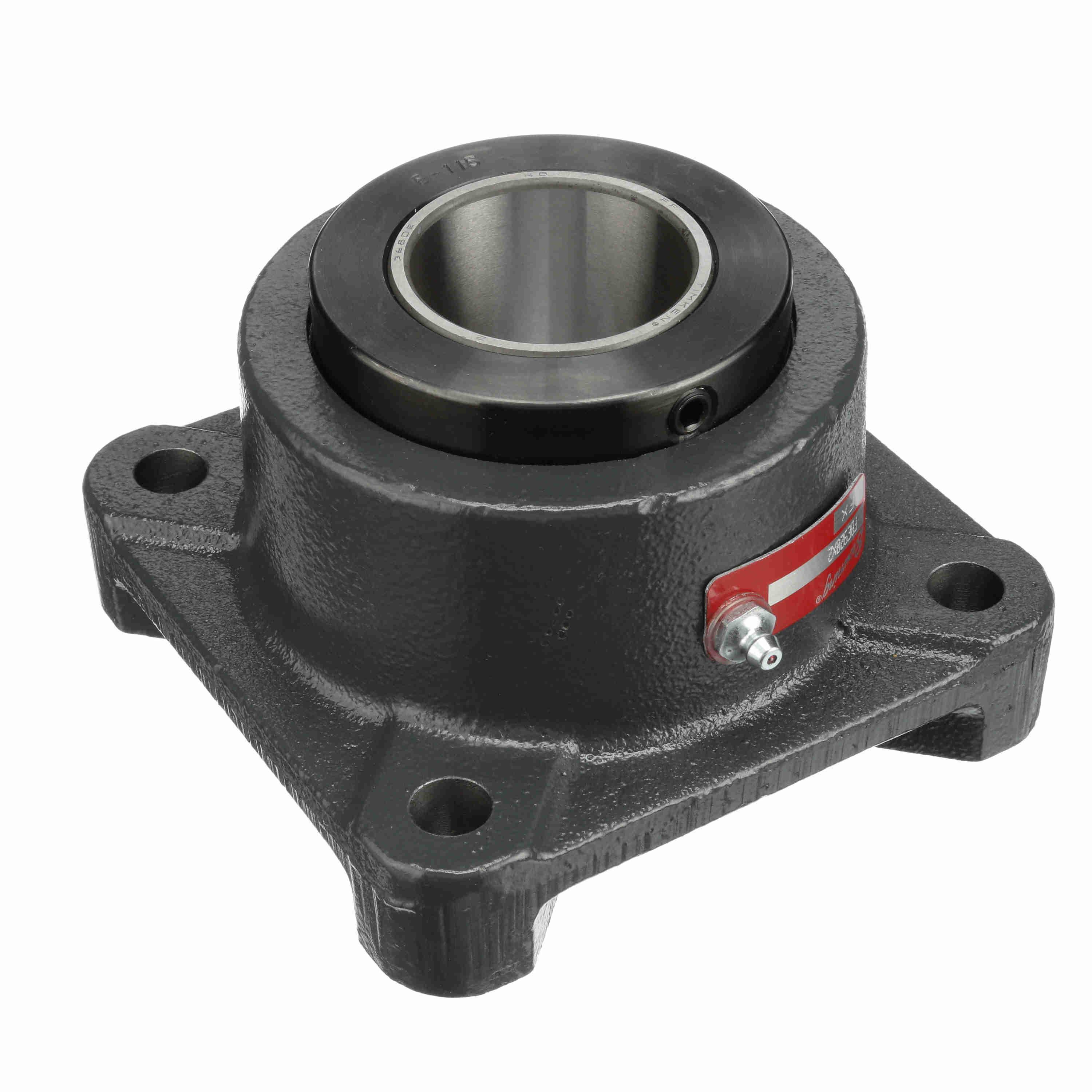

Browning® 730026 FBE920 Non-Expansion Round/Straight Bore Tapered Roller Bearing Unit, 2 in Dia Bore, 4-3/8 in L Bolt Center-to-Center, 6-3/16 in Dia Bolt Circle, 4-Bolt Flange Mount, 5-5/8 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROFBE920200
  • Alt Part Number: FBE920X2
  • MPN: 730026
  • UPC: 662289648719
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® E920 series mounted tapered roller bearings feature durable 1-piece non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation. It also contains a contact face riding seal in order to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.

Browning® Tapered Roller Bearing Unit, Non-Expansion Round/Straight Bore, Series: FBE920, 2 in Bore, 4-3/8 in Bolt Center-to-Center Length, 6-3/16 in Diameter Bolt Circle, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 3-5/8 in Overall Depth, 5-5/8 in Overall Height, Double Set Screw Collar Locking Device, Cast Iron Bearing, Rubber Seal, 8070 lb Dynamic Load, 2000 rpm Maximum, -20 to 200 deg F, Uncoated

Bearing Material      :      Cast Iron
Bolt Center-to-Center Length      :      4-3/8 in
Bolt Circle Diameter      :      6-3/16 in
Bore Diameter      :      2 in
Finish      :      Uncoated
Flange Mounting Type      :      4-Bolt
Load Capacity      :      8070 lb Dynamic
Locking Device      :      Double Set Screw Collar
Maximum Speed      :      2000 rpm
Overall Depth      :      3-5/8 in
Overall Height      :      5-5/8 in
Overall Length/Diameter      :      5-5/8 in
Seal Material      :      Rubber
Series      :      FBE920
Temperature Rating      :      -20 to 200 deg F
Type      :      Non-Expansion Round/Straight Bore
  • Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
  • Single lip contact face-riding seals rotate with the shaft
  • Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
  • Powder coat epoxy 2-bolt cast iron housing
