Browning® 730006 BROPBE920115
  1. pin-int

Browning® 730006 BROPBE920115

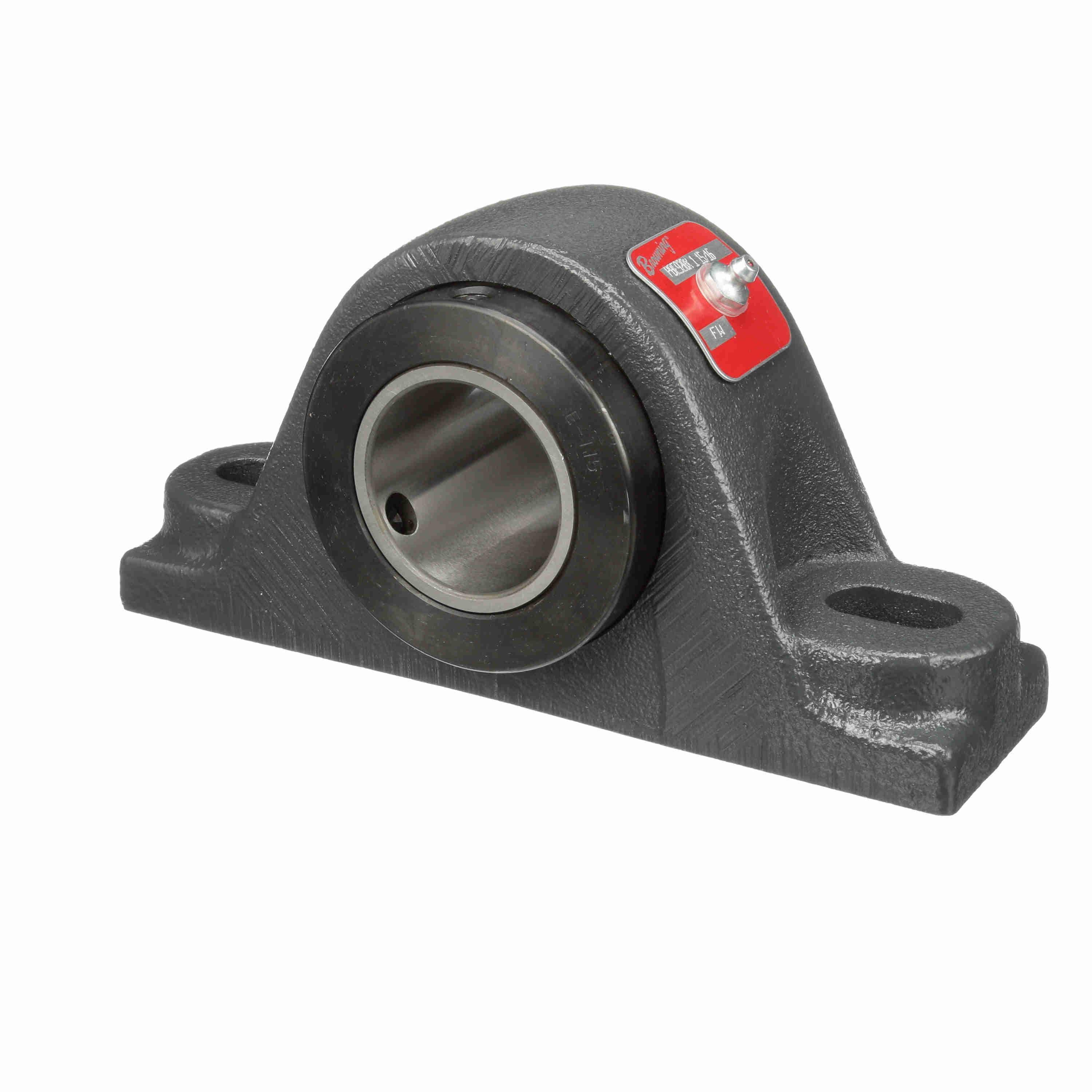

Browning® 730006 PBE920 Heavy Duty Type SR Pillow Block Roller Bearing Unit, 1-15/16 in Dia Bore, 6-3/16 to 7-1/4 in L Bolt Center-to-Center, 2-1/4 in Base to Bore Centerline, 8-7/8 in OAL x 4-1/2 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROPBE920115
  • Alt Part Number: PBE920X 1 15/16
  • MPN: 730006
  • UPC: 662289626717
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® E920 series mounted tapered roller bearings feature durable 1-piece non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation. It also contains a contact face riding seal in order to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.

Browning® Pillow Block Roller Bearing Unit, Heavy Duty Type SR, Series: PBE920, 1-15/16 in Bore, 6-3/16 to 7-1/4 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-1/2 in Overall Width, 4-1/2 in Overall Height, Two-Bolt Base Mounting, Round/Tapered Bore, 2-1/2 in Base Width, Double Set Screw Collar Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 8070 lb Dynamic Load, -20 to 200 deg F, 2000 rpm Maximum, Cast Iron, Gray Painted

Base Width      :      2-1/2 in
Base to Bore Centerline      :      2-1/4 in
Bolt Center-to-Center Length      :      6-3/16 to 7-1/4 in
Bore Diameter      :      1-15/16 in
Bore Type      :      Round/Tapered
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Gray Painted
Load Capacity      :      8070 lb Dynamic
Locking Device      :      Double Set Screw Collar
Material      :      Cast Iron
Maximum Speed      :      2000 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      4-1/2 in
Overall Length      :      8-7/8 in
Overall Width      :      3-1/2 in
Seal Type      :      Contact
Series      :      PBE920
Temperature Rating      :      -20 to 200 deg F
Type      :      Heavy Duty Type SR
  • Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
  • Single lip contact face-riding seals rotate with the shaft
  • Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
  • Powder coat epoxy 2-bolt cast iron housing
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_730000_Specification_Sheet.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
