Browning® 3790755 MORH60TLB24

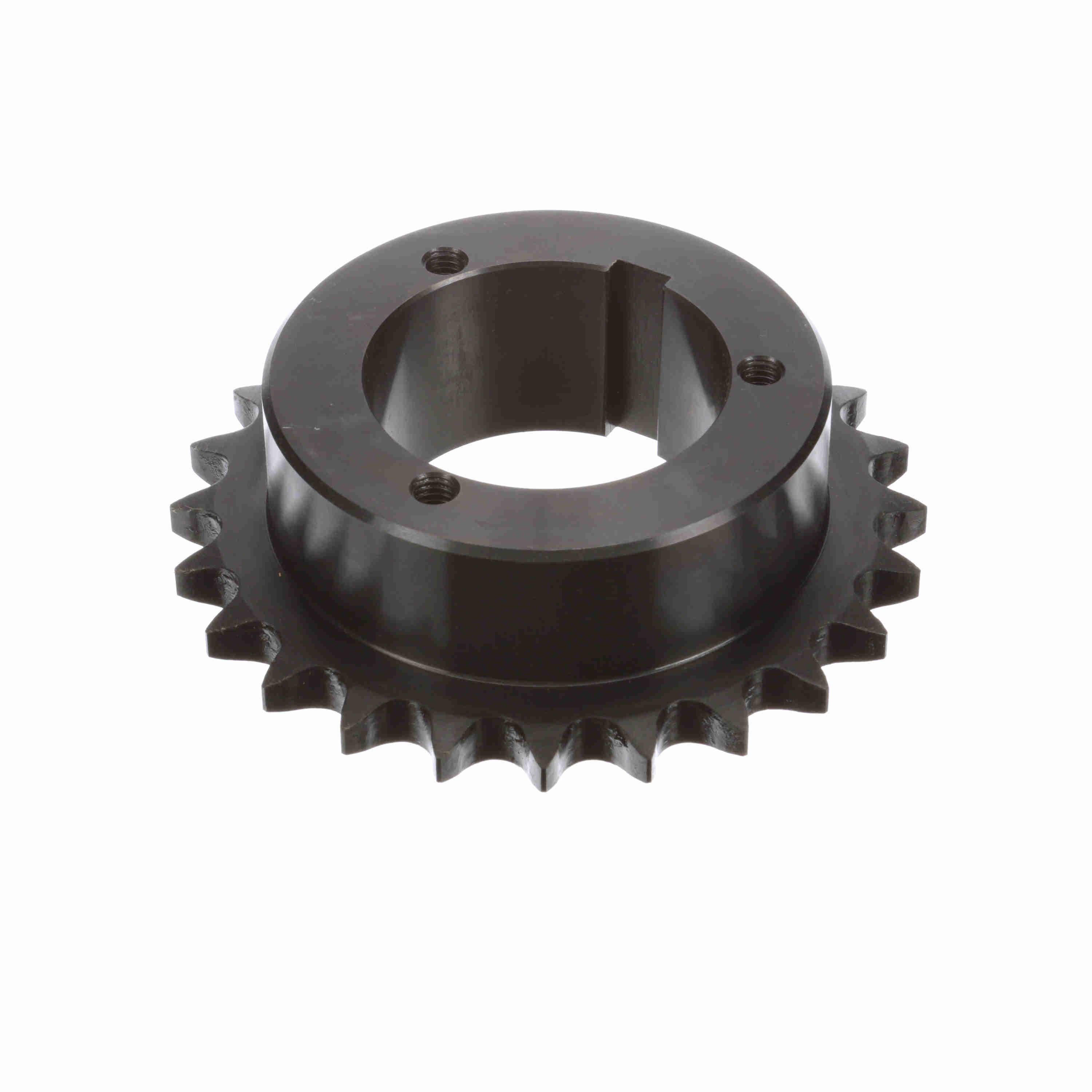

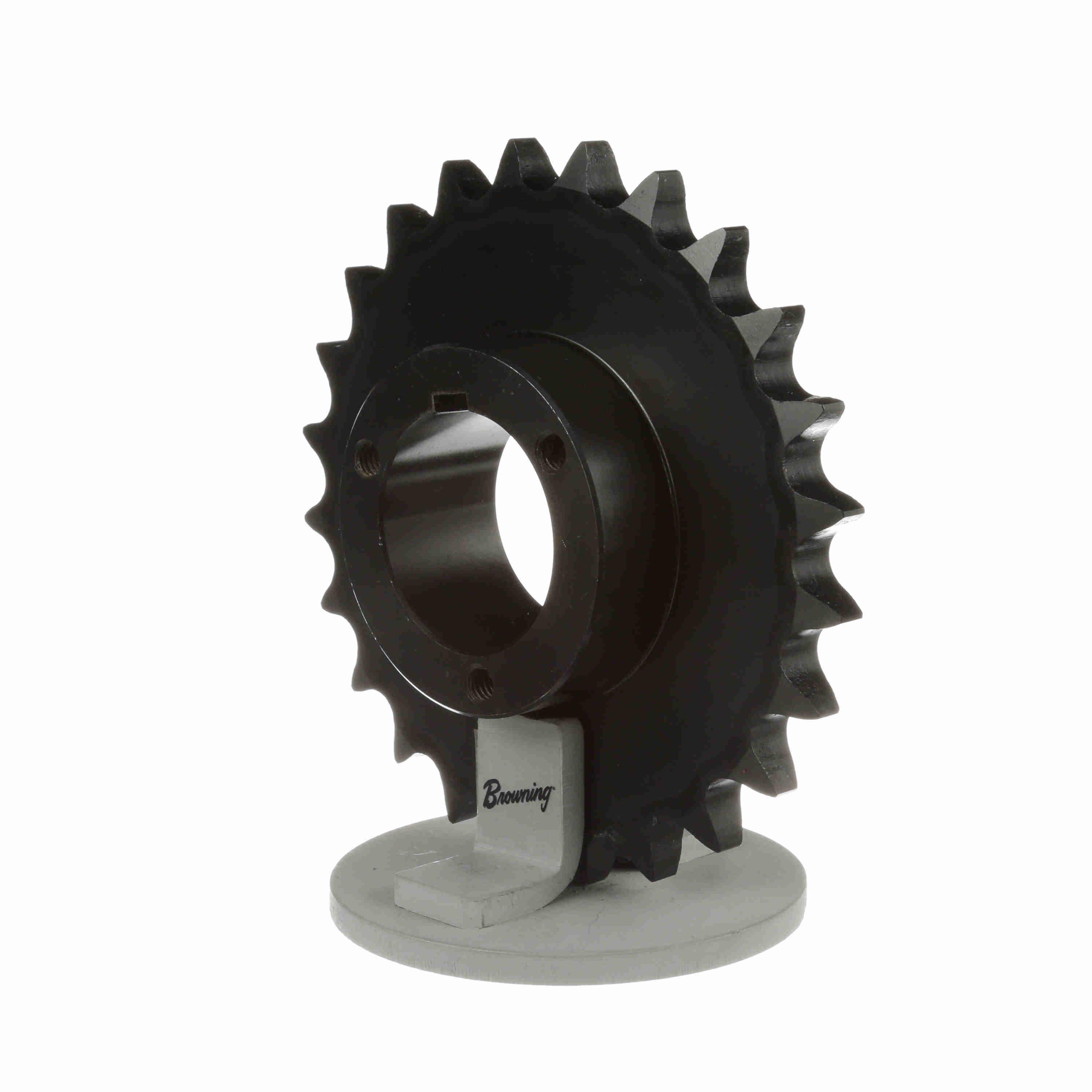

Browning® 3790755 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 6.147 in OD, #60 Chain, 24 Teeth, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: MORH60TLB24
- Alt Part Number: H60TB24
- MPN: 3790755
- UPC: 662289230297
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Taper Bore Bushed Type 1, 1/2 in Bore Dia, 6.147 in Outside Dia, #60 Chain, 24 Teeth, 5.746 in, 3.563 in Hub Dia, 1-1/4 in Length Through Bore, Steel
| Bore Diameter | : | 1/2 in |
| Chain Size | : | #60 |
| Hub Diameter | : | 3.563 in |
| Length Through Bore | : | 1-1/4 in |
| Material | : | Steel |
| Number of Teeth | : | 24 |
| Outside Diameter | : | 6.147 in |
| Pitch Diameter | : | 5.746 in |
| Type | : | Single Strand Taper Bore Bushed Type 1 |
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 3/4 in pitch ANSI chain
