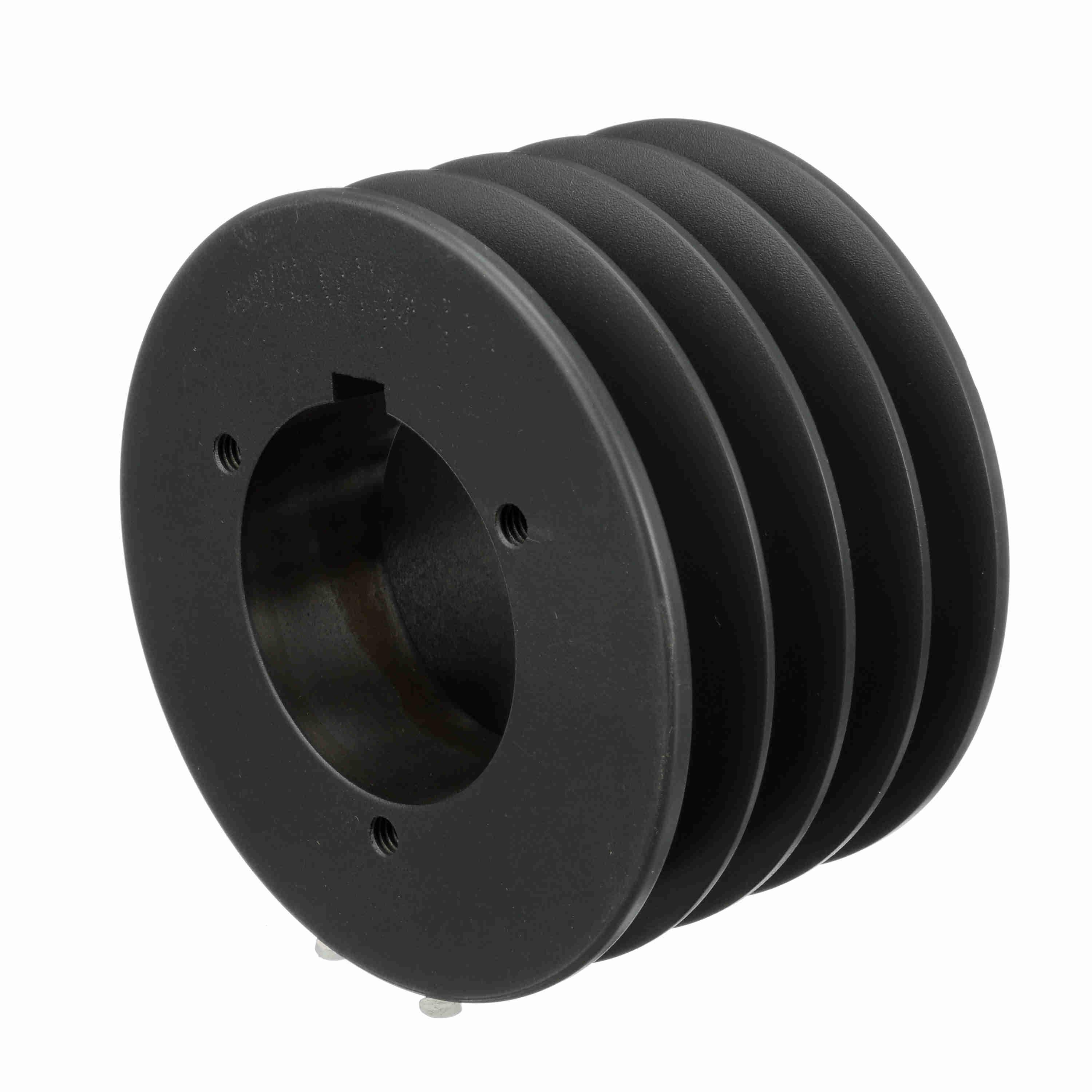

Browning® 3694460 BRO4B5V50

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 5, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 5.28 in Outside Dia, 5.1 in (5V)/4.8 in (A)/5.3 in (B), 4 Grooves, 3-5/32 in Face Width, 55/64 in Hub Projection, B Bushing, 4-7/32 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
