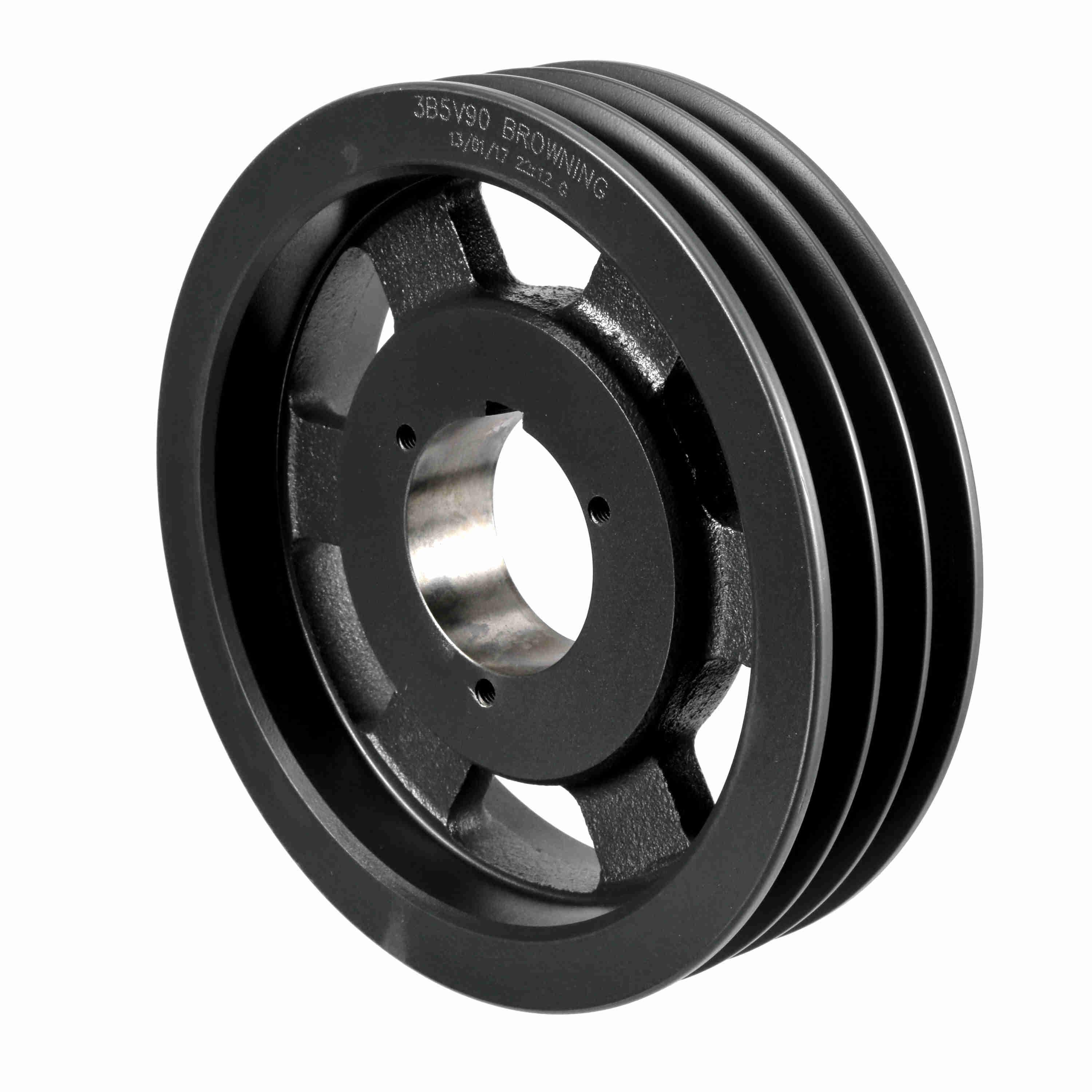

Browning® 3694320 BRO3B5V90

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Arm Type 4, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 9.28 in Outside Dia, 9.1 in (5V)/8.8 in (A)/9.3 in (B), 3 Grooves, 2-7/16 in Face Width, 17/64 in Hub Projection, B Bushing, 2-29/32 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

• New casting design the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
• Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
• More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
• This enables you to reduce drive cost
• Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
