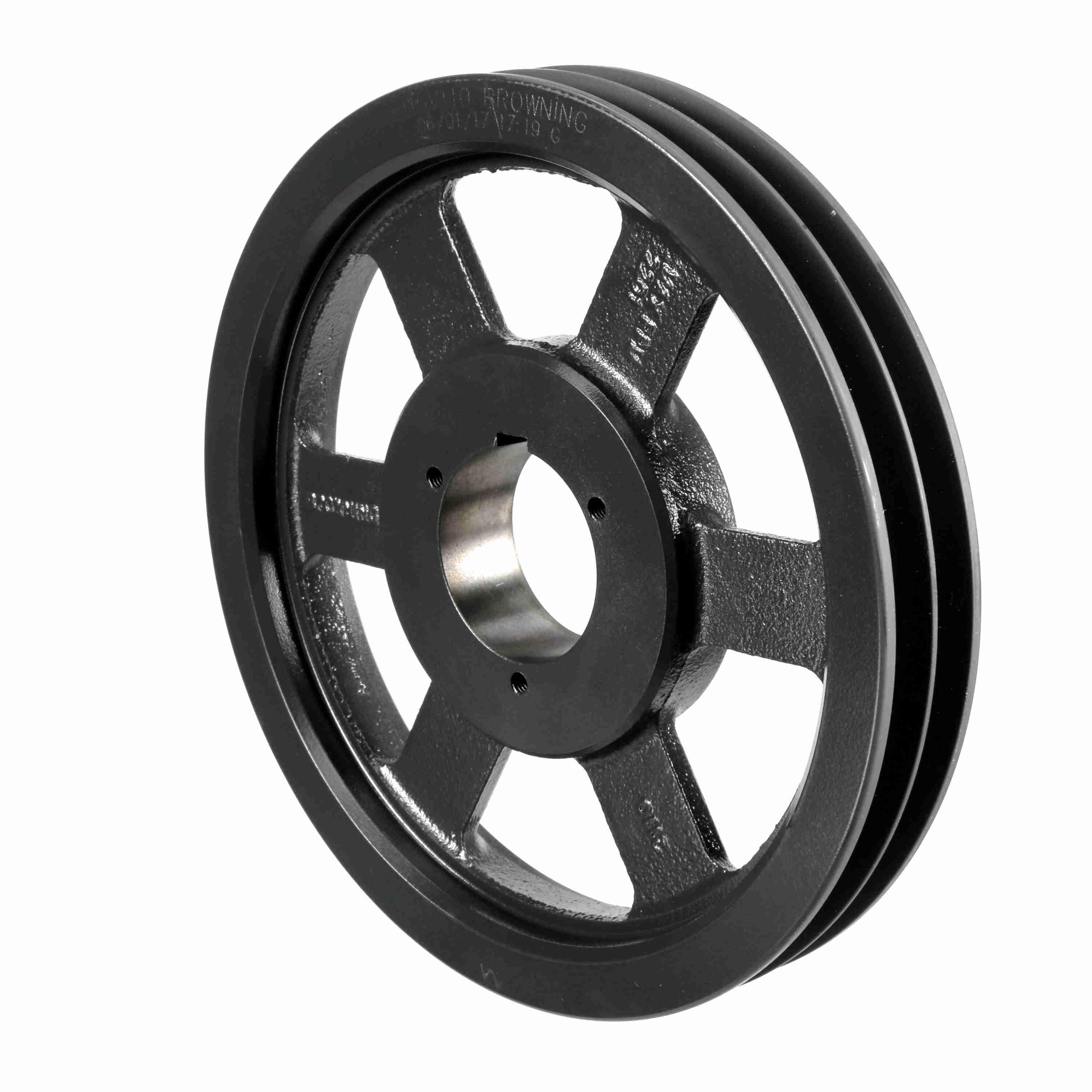

Browning® 3694064 BRO2B5V110

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Arm Type 4, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 11.28 in Outside Dia, 11.1 in (5V)/10.8 in (A)/11.3 in (B), 2 Grooves, 1-23/32 in Face Width, 5/8 in Hub Projection, B Bushing, 2-35/64 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

• New casting design the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
• Largest selection in the Industry - Browning offers the widest range of variable speed sheaves in the market today
• VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
• The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
• When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
