Browning® 3693934 BRO2B5V56
  1. pin-int

Browning® 3693934 BRO2B5V56

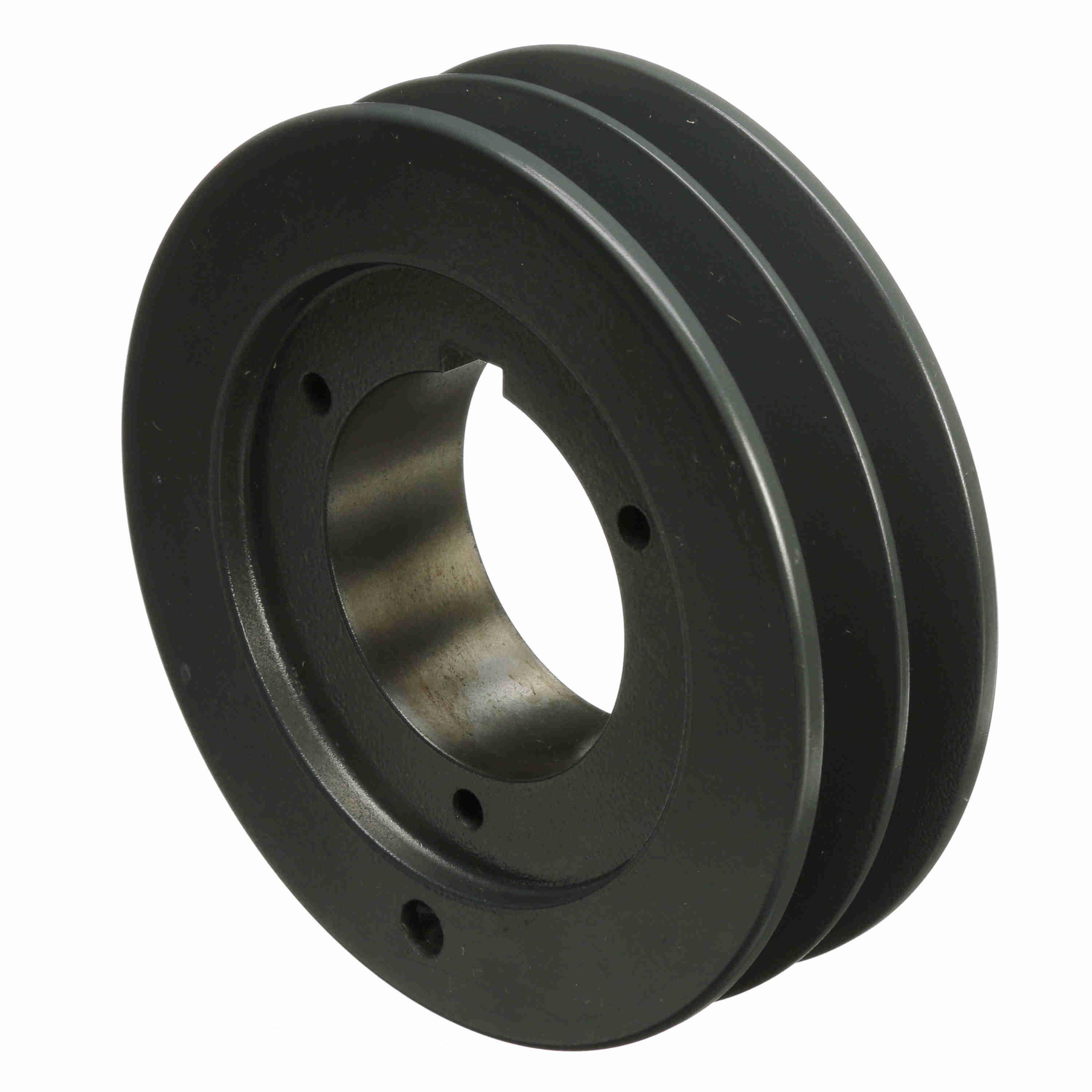

Browning® 3693934 B5V® Type 3 Multiple Sheave, 1/2 to 1-15/16 in Split Taper Bore, 5.88 in OD, 2 Grooves, 5.7 in (5V)/5.4 in (A)/5.9 in (B) Dia Pitch, 1-23/32 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO2B5V56
  • Alt Part Number: 2B5V56
  • MPN: 3693934
  • UPC: 662289034529
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 3, Series: B5V®, Split Taper Bore, 1/2 to 1-15/16 in Bore Dia, 5.88 in Outside Dia, 5.7 in (5V)/5.4 in (A)/5.9 in (B), 2 Grooves, 1-23/32 in Face Width, 5/8 in Hub Projection, B Bushing, 2-35/64 in Overall Length, For Use With: Gripbelt® A and B, 5V Cross Section Belts, Cast Iron

Bore Diameter      :      1/2 to 1-15/16 in
Bore Type      :      Split Taper
Bushing Type      :      B
Face Width      :      1-23/32 in
Hub Projection      :      5/8 in
Material      :      Cast Iron
Number of Grooves      :      2
Outside Diameter      :      5.88 in
Overall Length      :      2-35/64 in
Pitch Diameter      :      5.7 in (5V)/5.4 in (A)/5.9 in (B)
Series      :      B5V®
Suitable For Use With      :      Gripbelt® A and B, 5V Cross Section Belts
Type      :      Type 3
  • New casting design the B5V castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
  • Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
  • Cooler running means longer life
  • Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
  • Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
  • High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
  • Assures less vibration and Smoother , quieter performance
  • Notched belts provide higher horsepower than wrapped belts
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
