Browning® 3693793 BRO1B5V124

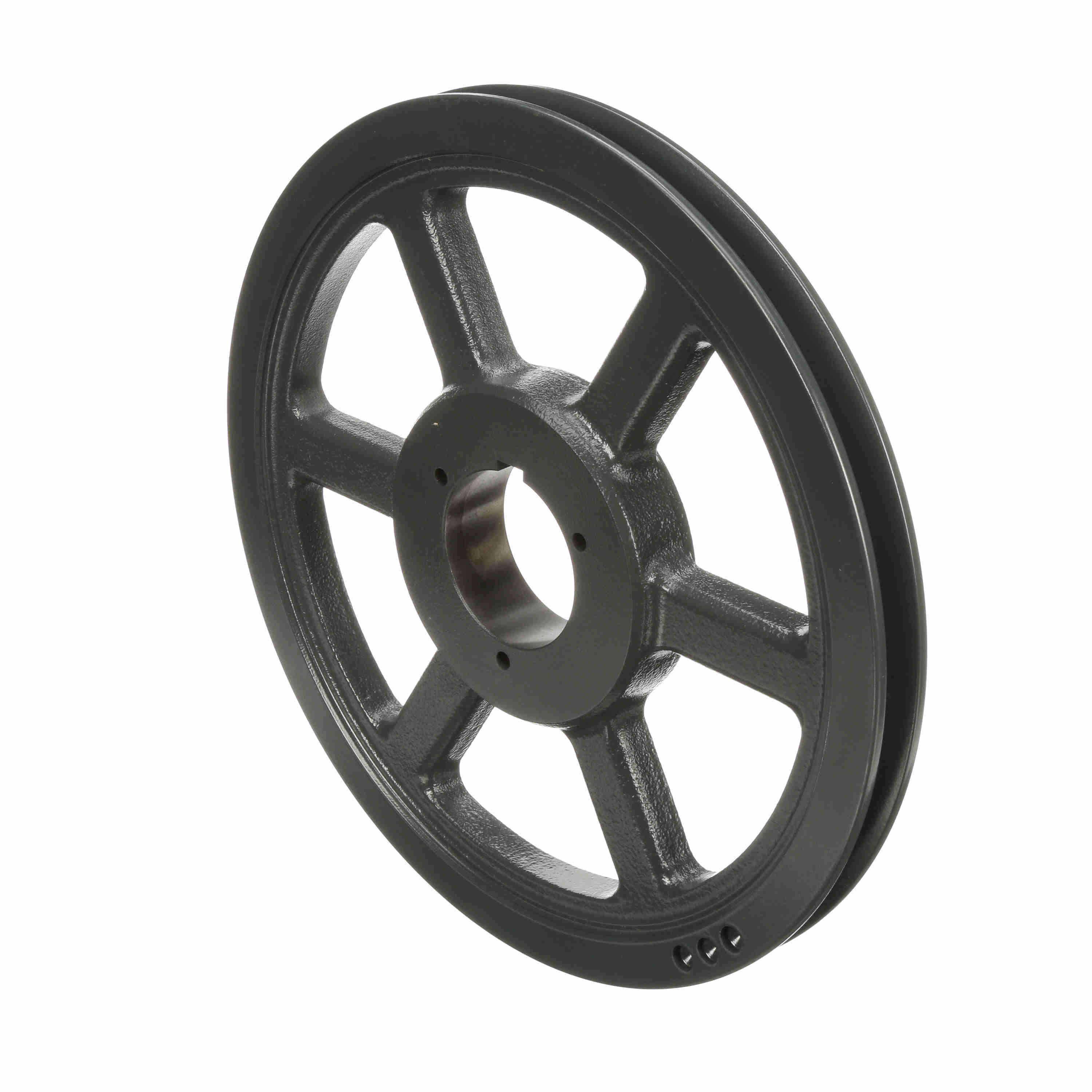

Browning® Classical Gripbelt® 3693793 B5V® Arm Type 2 Single Groove Sheave, Split Taper Bore, 1/2 to 2-7/16 in Dia Bore, 12.68 in OD, 12.2 in (A)/12.7 in (B)/12-1/2 in (BV) Dia Pitch, 1 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO1B5V124
  • Alt Part Number: 1B5V124
  • MPN: 3693793
  • UPC: 662289033577
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Arm Type 2, Series: B5V®, Split Taper Bore, 1/2 to 2-7/16 in Bore Dia, 12.68 in Outside Dia, 12.2 in (A)/12.7 in (B)/12-1/2 in (BV), 1 in Face Width, 3-11/16 in Hub Dia, 63/64 in Hub Projection, B Bushing, 2-5/16 in Overall Length, For Use With: 4L/A, 5L/B and 5V Cross Section Belt, Cast Iron

Bore Diameter      :      1/2 to 2-7/16 in
Bore Type      :      Split Taper
Bushing Type      :      B
Face Width      :      1 in
Hub Diameter      :      3-11/16 in
Hub Projection      :      63/64 in
Material      :      Cast Iron
Outside Diameter      :      12.68 in
Overall Length      :      2-5/16 in
Pitch Diameter      :      12.2 in (A)/12.7 in (B)/12-1/2 in (BV)
Series      :      B5V®
Suitable For Use With      :      4L/A, 5L/B and 5V Cross Section Belt
Type      :      Arm Type 2
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
