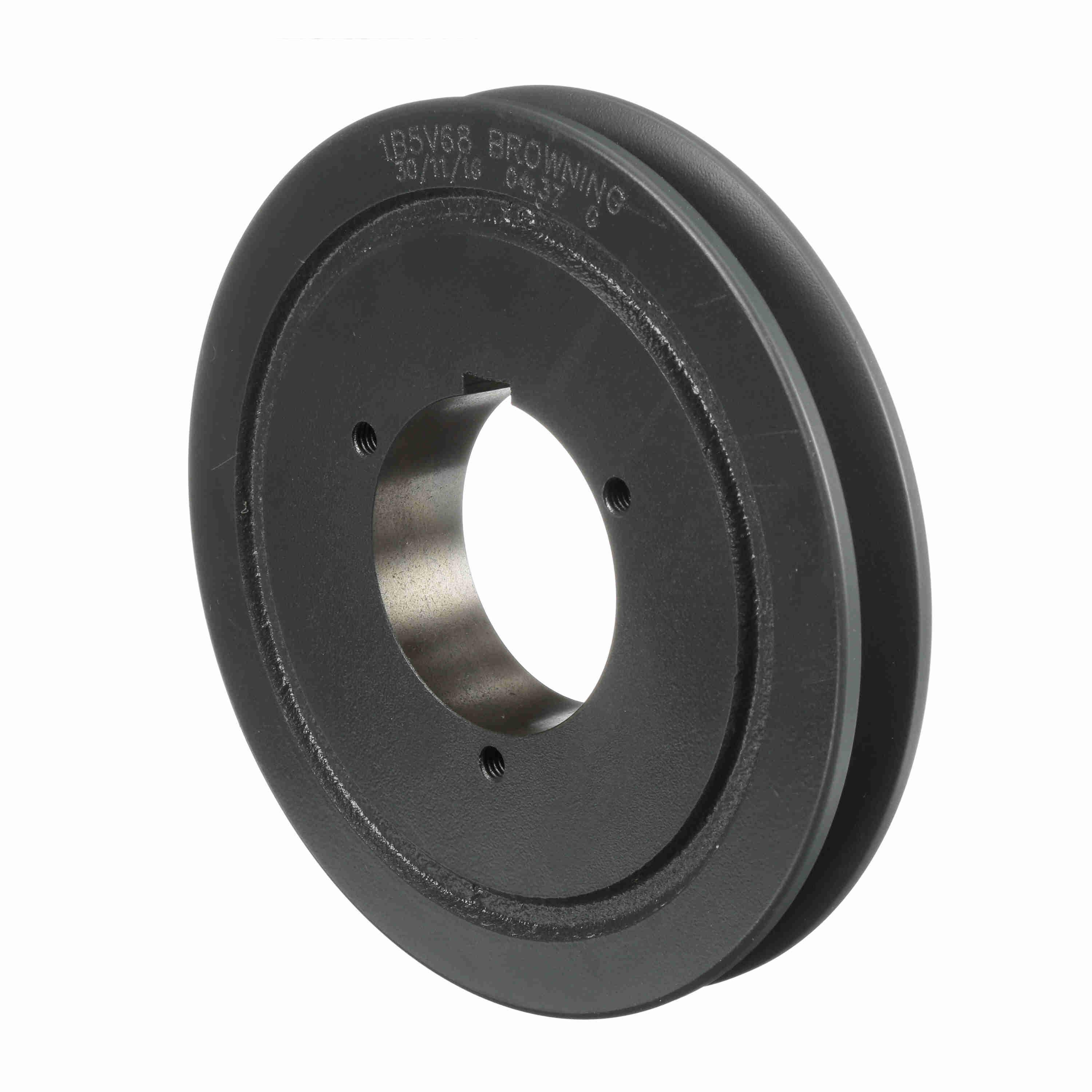

Browning® 3693710 BRO1B5V68

Browning® Classical Gripbelt® Single Groove Sheave, Type 1 Web, Series: B5V®, Split Taper Bore, 1/2 to 2-7/16 in Bore Dia, 7.08 in Outside Dia, 6.6 in (A)/7.1 in (B)/6.9 in (BV), 1 in Face Width, 3-11/16 in Hub Dia, 55/64 in Hub Projection, B Bushing, 2-9/64 in Overall Length, For Use With: 4L/A, 5L/B and 5V Cross Section Belt, Cast Iron

• 5V performance B-groove economy
• 40% more hp per dollar of cost than traditional 5V sheaves (40% cost reduction)
• Reduced need for duplicate inventory of B and 5V sheaves
• External key provides positive drive with no torque on the cap screws
• Highest torque carrying capacity in the Browning® bushing product line
• Double split barrel assures true concentricity
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
