Browning® 3427168 BRONCG16116
  1. pin-int

Browning® 3427168 BRONCG16116

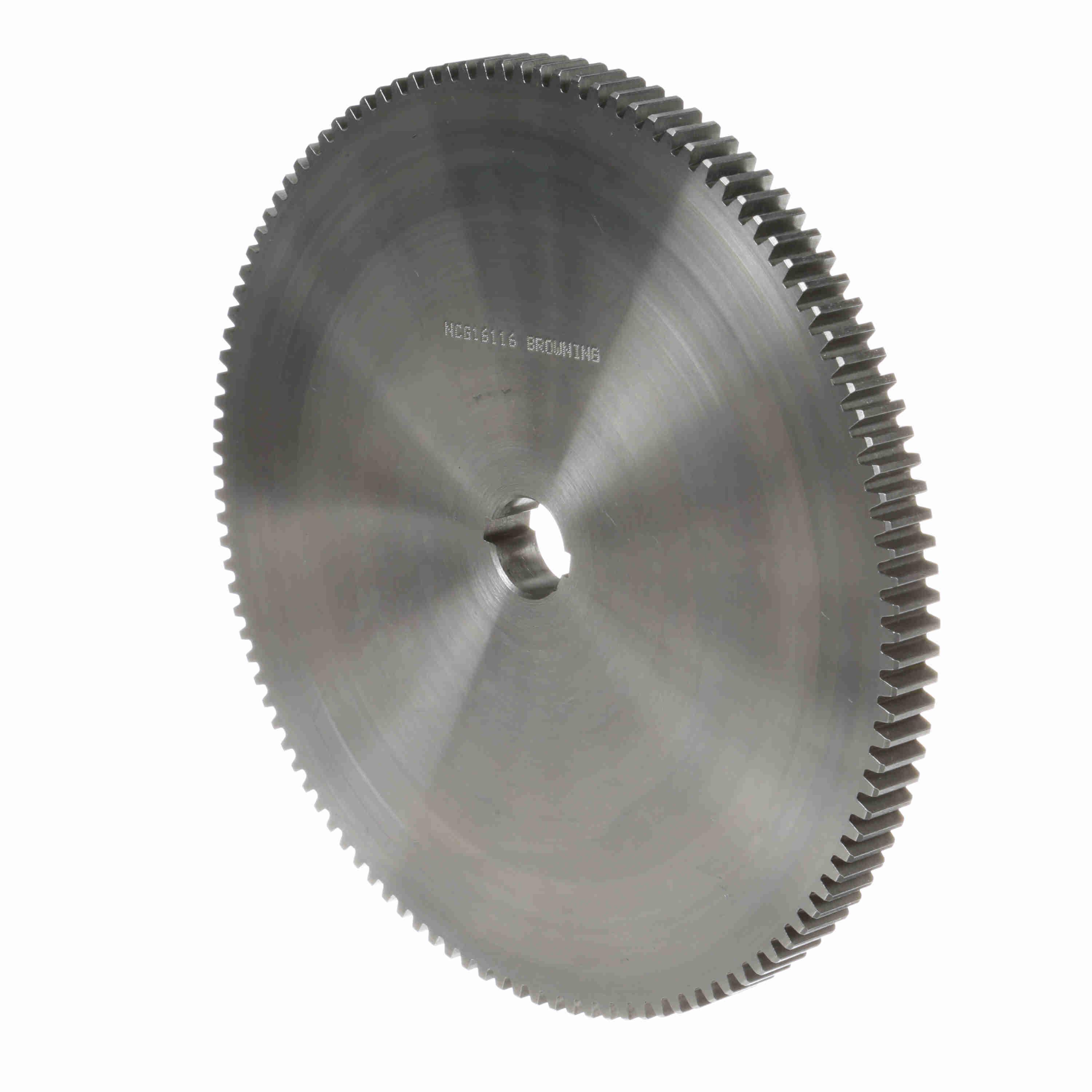

Browning® 3427168 Minimum Plain Bore Type C1 Change Gear Without Hardened Teeth, 3/4 in Dia Bore

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONCG16116
  • Alt Part Number: NCG16116
  • MPN: 3427168
  • UPC: 662289041589
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® is one of the most comprehensive lines of off-the shelf gears in the industry, including spur, miter and bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 dp and 14-1/2 deg pressure angle from 48 to 3 dp all designed to increase output, reduce costs and avoid specials.

Browning® Change Gear, Minimum Plain Bore Type C1, 3/4 in Bore Dia, 7.37 in Outside Dia, 116 Teeth, 16 Diametral Pitch, 7-1/4 in, 1/2 in Face Width, 1/2 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      3/4 in
Diametral Pitch      :      16
Face Width      :      1/2 in
Material      :      Steel
Number of Teeth      :      116
Outside Diameter      :      7.37 in
Overall Length      :      1/2 in
Pitch Diameter      :      7-1/4 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore Type C1
  • Thousands of shaft ready finished bore and bushing types eliminate rework costs, assure true running precision at all times
  • More stock sizes made of steel and weldability plus greater strength, at cast iron prices
  • Extra tooth depth and larger radii provide stronger teeth, a deeper lubrication reservoir and more clearance
  • Many odd tooth sizes
  • Custom gear capabilities up to 60 in Dia and 17 in face
  • Browning Change Gears, change gear bushing sold separately
  • When you think Special Gears - Think Browning
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3426954_Catalog.pdf
