Browning® 3195112 BROAK491 1/8
  1. pin-int

Browning® 3195112 BROAK491 1/8

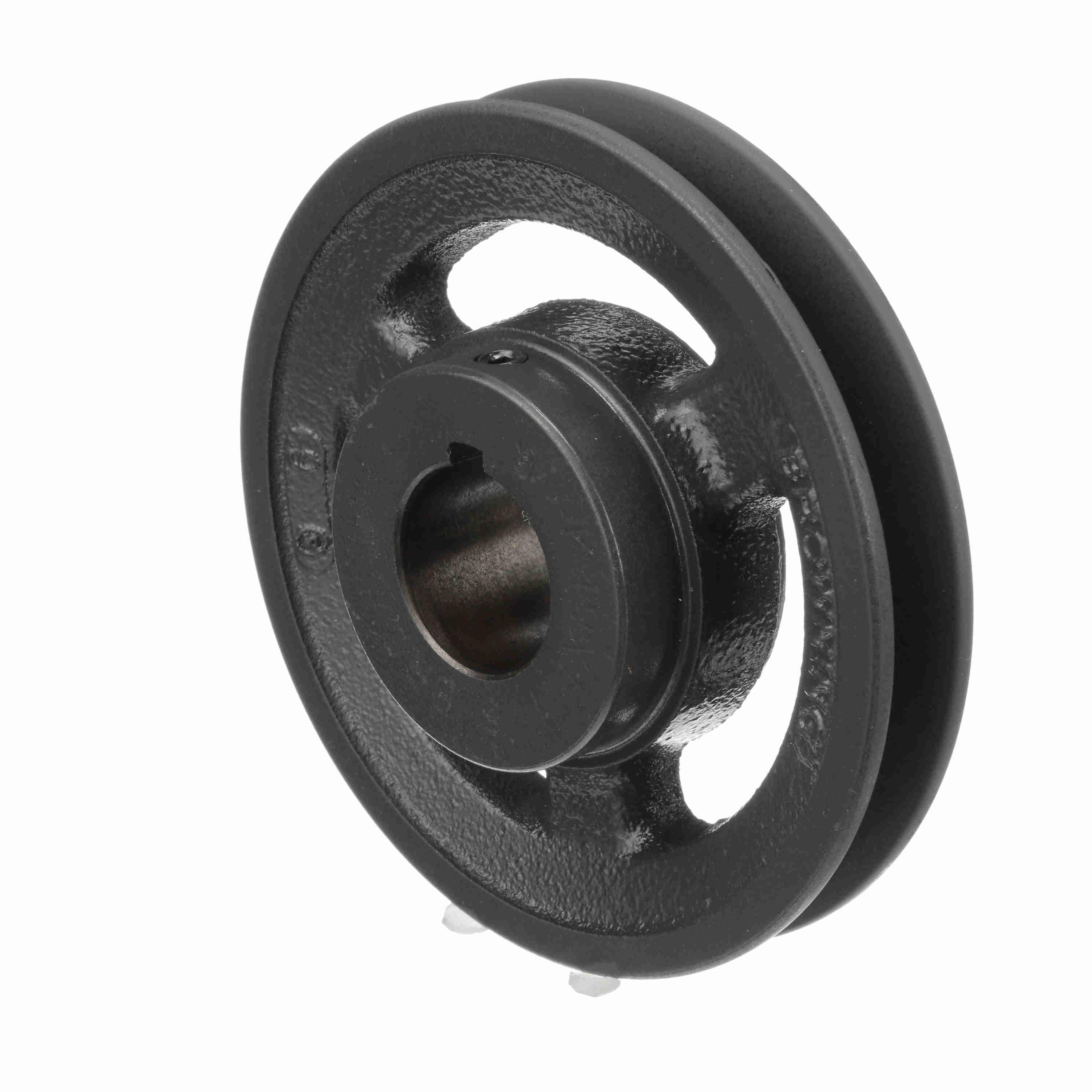

Browning® Classical Gripbelt® 3195112 AK Series Type 3 Single Groove Sheave, Finished Bore, 1-1/8 in Dia Bore, 4-3/4 in OD, 4.7 in (A)/4.16 in (3L) Dia Pitch, 3/4 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROAK491 1/8
  • Alt Part Number: AK49X 1 1/8
  • MPN: 3195112
  • UPC: 662289590988
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: AK Series, Finished Bore, 1-1/8 in Bore Dia, 4-3/4 in Outside Dia, 4.7 in (A)/4.16 in (3L), 3/4 in Face Width, 15/32 in Hub Projection, 1-7/32 in Overall Length, For Use With: 4L/A and 3L Cross Section Belt, Cast Iron

Bore Diameter      :      1-1/8 in
Bore Type      :      Finished
Face Width      :      3/4 in
Hub Projection      :      15/32 in
Material      :      Cast Iron
Outside Diameter      :      4-3/4 in
Overall Length      :      1-7/32 in
Pitch Diameter      :      4.7 in (A)/4.16 in (3L)
Series      :      AK Series
Suitable For Use With      :      4L/A and 3L Cross Section Belt
Type      :      Type 3
  • External rib design provides cooling for longer belt life
  • Increases wall thickness by 30%
  • Increased hub diameter by 20%
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Wrapped construction - Browning offers a full line of wrapped FHP Belts which provides smooth quiet operation
  • Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
