Browning® 1969252 BRO5B5V184

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

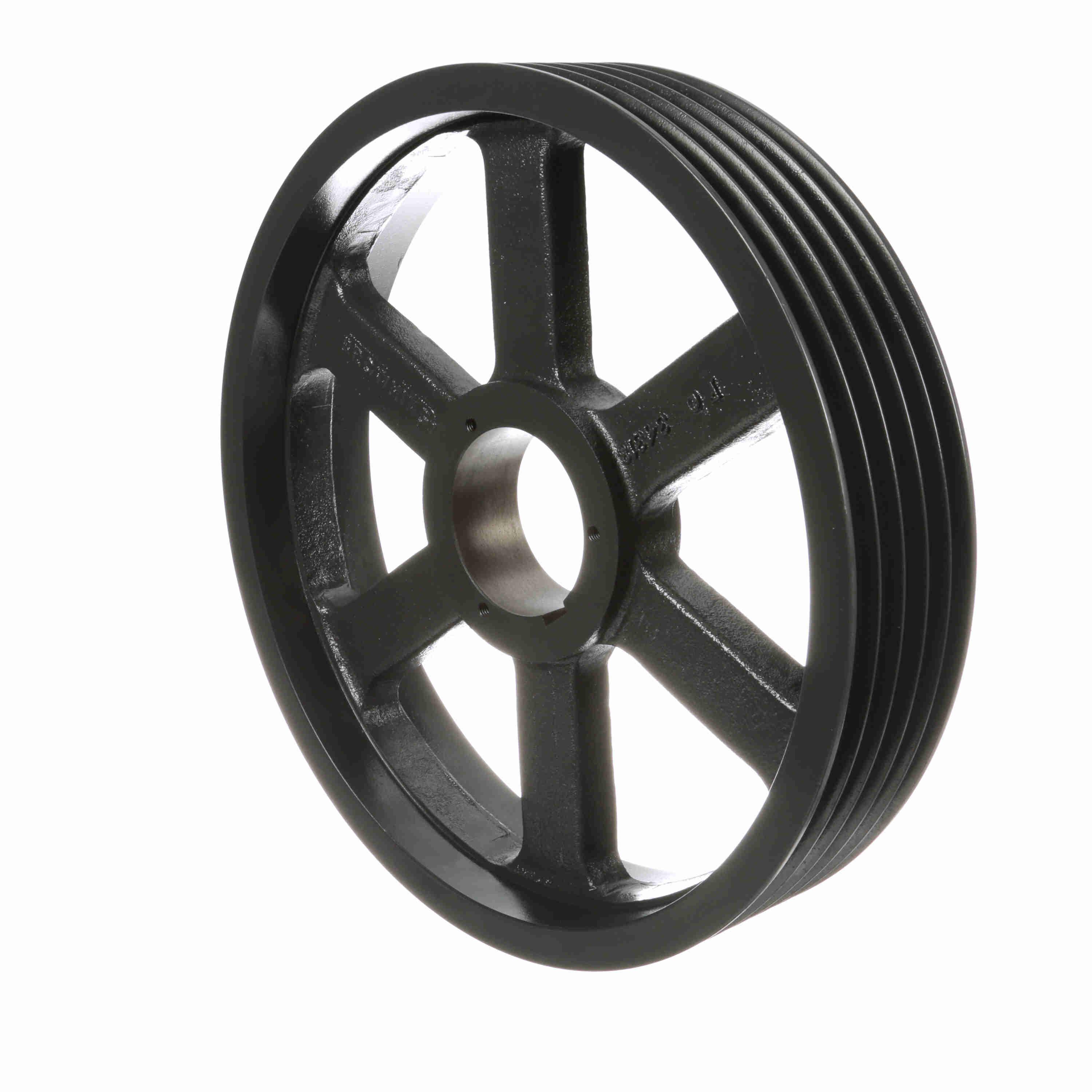

Browning® Multiple Sheave, Type 6 Arm, Series: B5V®, Split Taper Bore, 1.13 to 3.75 in Bore, 18.68 in OD, 18.2 in (A)/18.7 in (B) Pitch Diameter, 5 Grooves, 3-7/8 in Face Width, R1 Bushing, 4-3/32 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron

• Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
• New casting design the B5V® castings were developed using CAD and finite elements analysis to determine where to add and eliminate material
• Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives

• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
