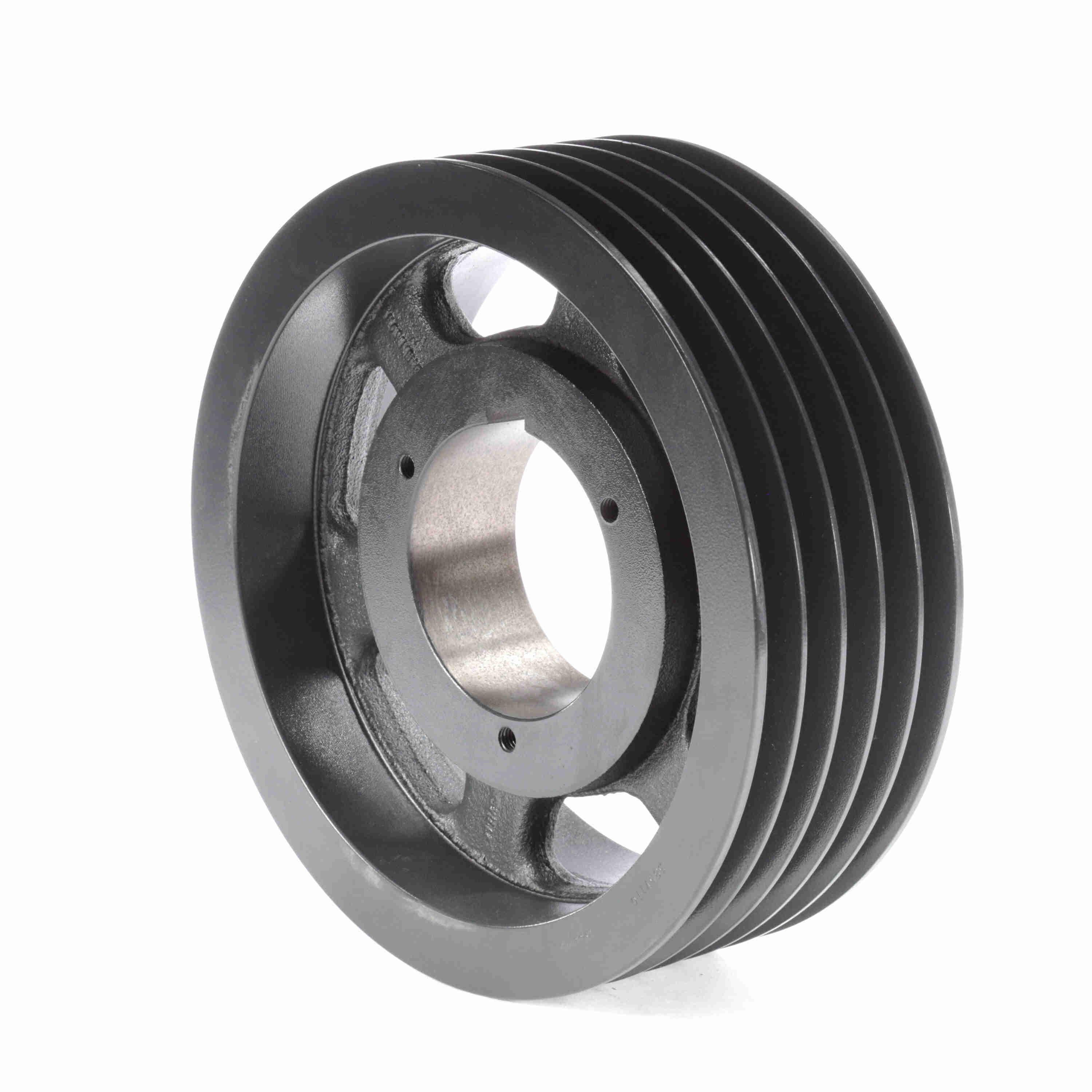

Browning® 1969203 BRO5B5V110

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type 6 Web, Series: B5V®, Split Taper Bore, 1.13 to 3.75 in Bore, 11.28 in OD, 10.8 in (A)/11.3 in (B) Pitch Diameter, 5 Grooves, 3-7/8 in Face Width, R1 Bushing, 4-3/32 in Overall Length, For Use With: GripBelt® A and B, 5V Cross Section V-Belt, Cast Iron

• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
