Browning® 1882281 MORH60181 1/8
  1. pin-int

Browning® 1882281 MORH60181 1/8

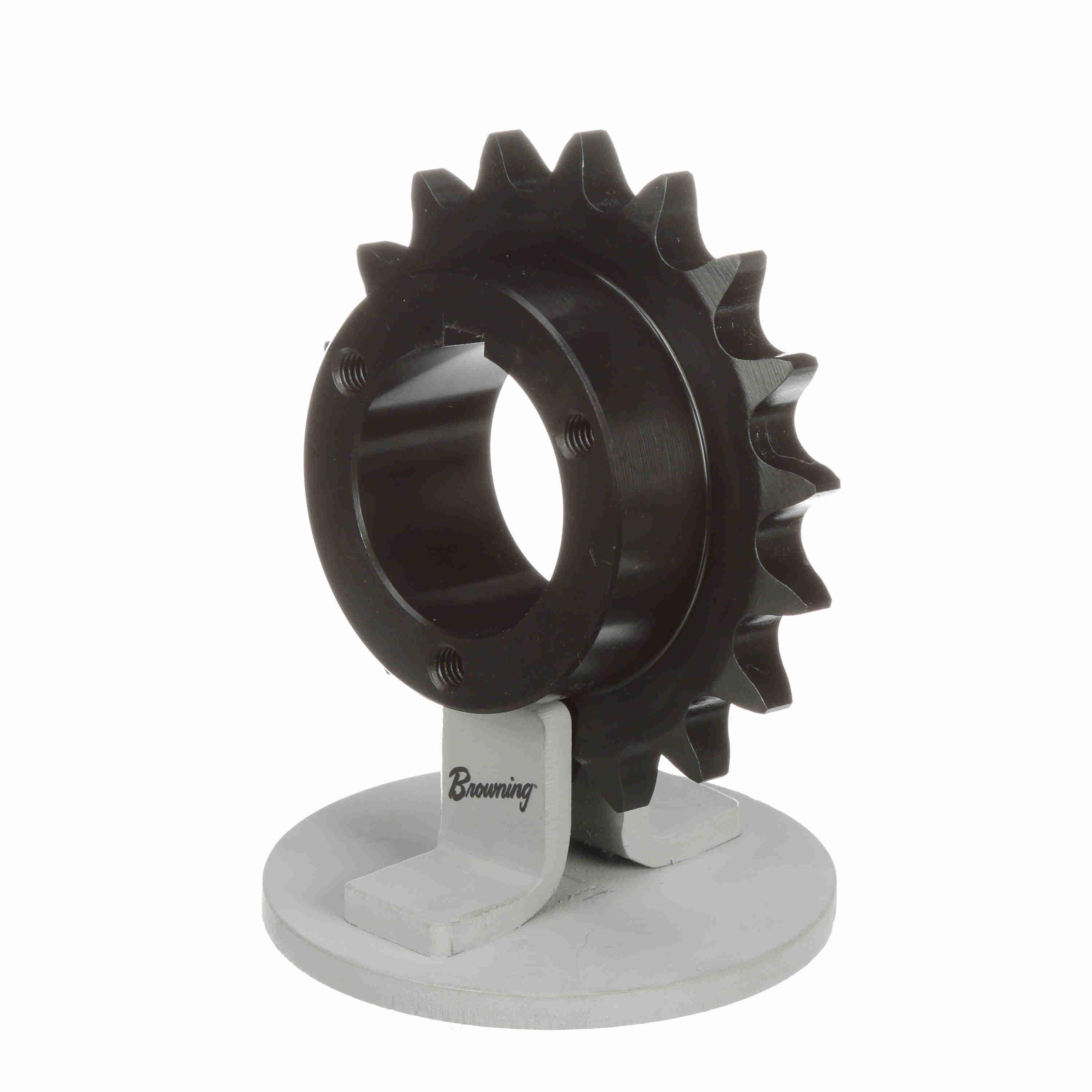

Browning® 1882281 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-1/8 in Dia Bore, 4.7 in OD, #60 Chain, 18 Teeth, 3/4 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH60181 1/8
  • Alt Part Number: H6018X 1 1/8
  • MPN: 1882281
  • UPC: 662289985791
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-1/8 in Bore, 4.7 in OD, #60 Chain, 18 Teeth, 4.319 in Pitch Diameter, 3.516 in Diameter Hub, 1-1/4 in Length Through Bore, Steel

Bore Diameter      :      1-1/8 in
Chain Size      :      #60
Hub Diameter      :      3.516 in
Length Through Bore      :      1-1/4 in
Material      :      Steel
Number of Teeth      :      18
Outside Diameter      :      4.7 in
Pitch Diameter      :      4.319 in
Type      :      Single Strand Finished Bore Type 1
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 3/4 in pitch ANSI chain
  • Additional setscrew at 90 deg to keyway
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_60A10_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
