Browning® 1880004 MORH40221 1/4
  1. pin-int

Browning® 1880004 MORH40221 1/4

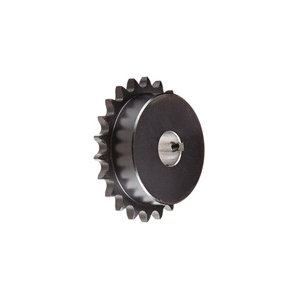

Browning® 1880004 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-1/4 in Dia Bore, 3.78 in OD, #40 Chain, 22 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH40221 1/4
  • Alt Part Number: H4022X 1 1/4
  • MPN: 1880004
  • UPC: 662289983445
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-1/4 in Bore, 3.78 in OD, #40 Chain, 22 Teeth, 3.513 in Pitch Diameter, 2.891 in Diameter Hub, 1 in Length Through Bore, Steel

Bore Diameter      :      1-1/4 in
Chain Size      :      #40
Hub Diameter      :      2.891 in
Length Through Bore      :      1 in
Material      :      Steel
Number of Teeth      :      22
Outside Diameter      :      3.78 in
Pitch Diameter      :      3.513 in
Type      :      Single Strand Finished Bore Type 1
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 1/2 in pitch ANSI chain
  • Additional setscrew at 90 deg to keyway
