Browning® 1879063 MORH35157/8
  1. pin-int

Browning® 1879063 MORH35157/8

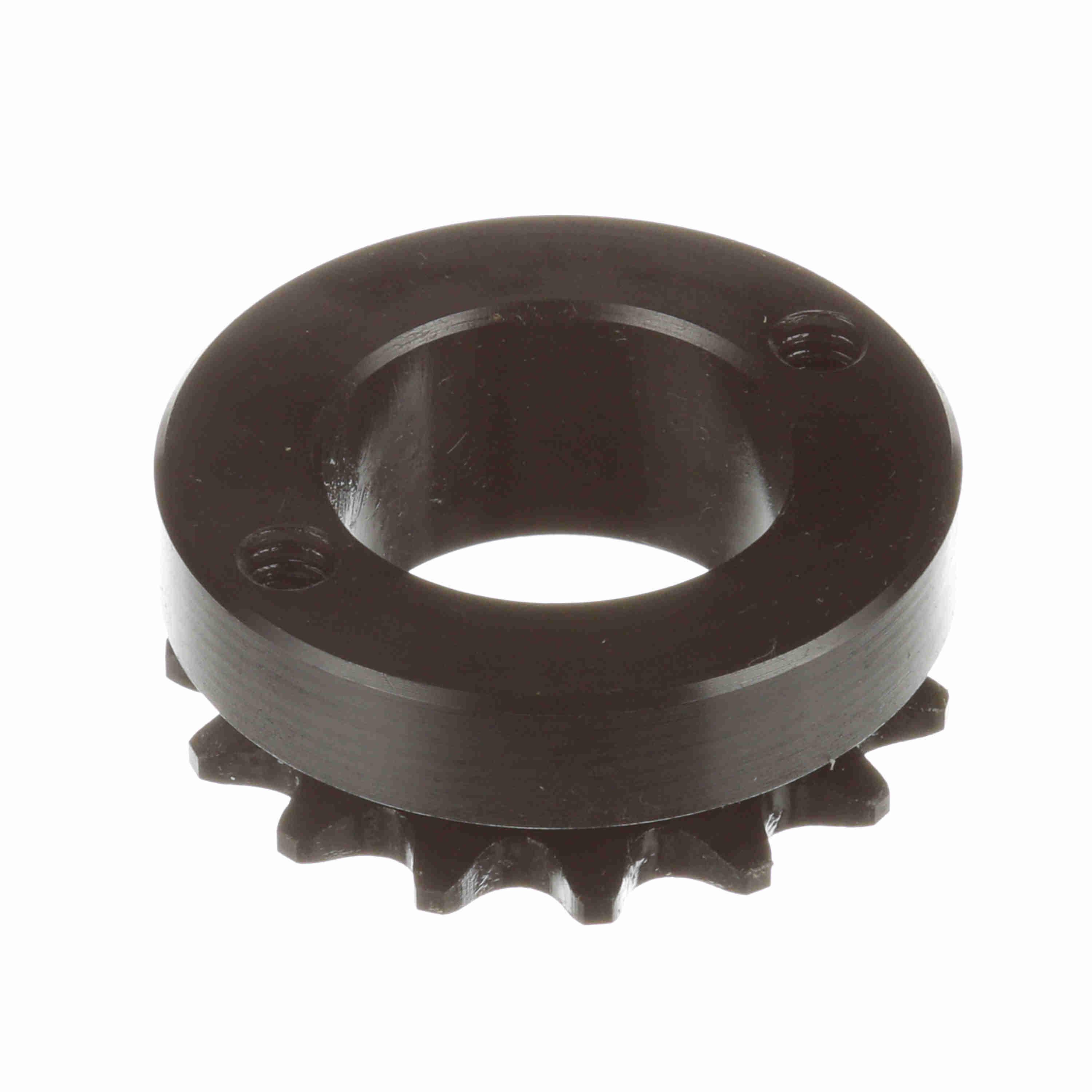

Browning® 1879063 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 7/8 in Dia Bore, 1.989 in OD, #35 Chain, 15 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH35157/8
  • Alt Part Number: H3515X7/8
  • MPN: 1879063
  • UPC: 662289982547
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 7/8 in Bore Dia, 1.989 in Outside Dia, #35 Chain, 15 Teeth, 3/8 in Pitch, 1.804 in, 1-37/64 in Hub Dia, 3/16 x 3/32 in Keyway, 0.766 in Length Through Bore, Steel

Bore Diameter      :      7/8 in
Chain Size      :      #35
Hub Diameter      :      1-37/64 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      0.766 in
Material      :      Steel
Number of Teeth      :      15
Outside Diameter      :      1.989 in
Pitch Diameter      :      1.804 in
Pitch      :      3/8 in
Type      :      Single Strand Finished Bore Type 1
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 3/8 in pitch ANSI chain
  • Additional setscrew at 90 deg to keyway
