Browning® 1642800 MORH50141 3/16
  1. pin-int

Browning® 1642800 MORH50141 3/16

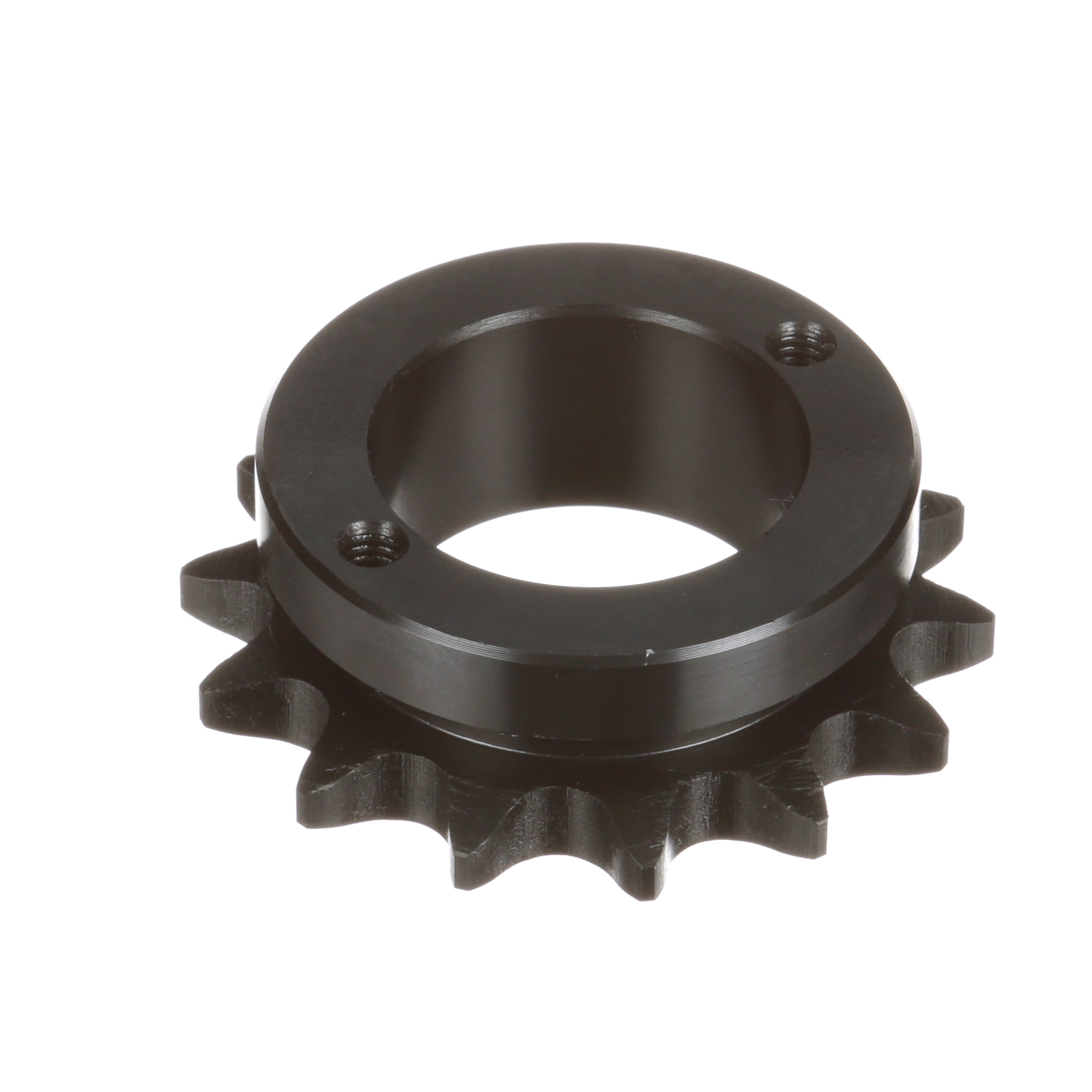

Browning® 1642800 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-3/16 in Dia Bore, 3.113 in OD, #50 Chain, 14 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH50141 3/16
  • Alt Part Number: H5014X 1 3/16
  • MPN: 1642800
  • UPC: 662289862665
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-3/16 in Bore Dia, 3.113 in Outside Dia, #50 Chain, 14 Teeth, 5/8 in Pitch, 2.809 in, 2.141 in Hub Dia, 1/4 x 1/8 in Keyway, 1.016 in Length Through Bore, Split Taper Bushing, Steel

Bore Diameter      :      1-3/16 in
Bushing Type      :      Split Taper
Chain Size      :      #50
Hub Diameter      :      2.141 in
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      1.016 in
Material      :      Steel
Number of Teeth      :      14
Outside Diameter      :      3.113 in
Pitch Diameter      :      2.809 in
Pitch      :      5/8 in
Type      :      Single Strand Finished Bore Type 1
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 5/8 in pitch ANSI chain
  • Additional setscrew at 90 and 180 deg to keyway
