Browning® 1430883 BRO48XLB037S
  1. pin-int

Browning® 1430883 BRO48XLB037S

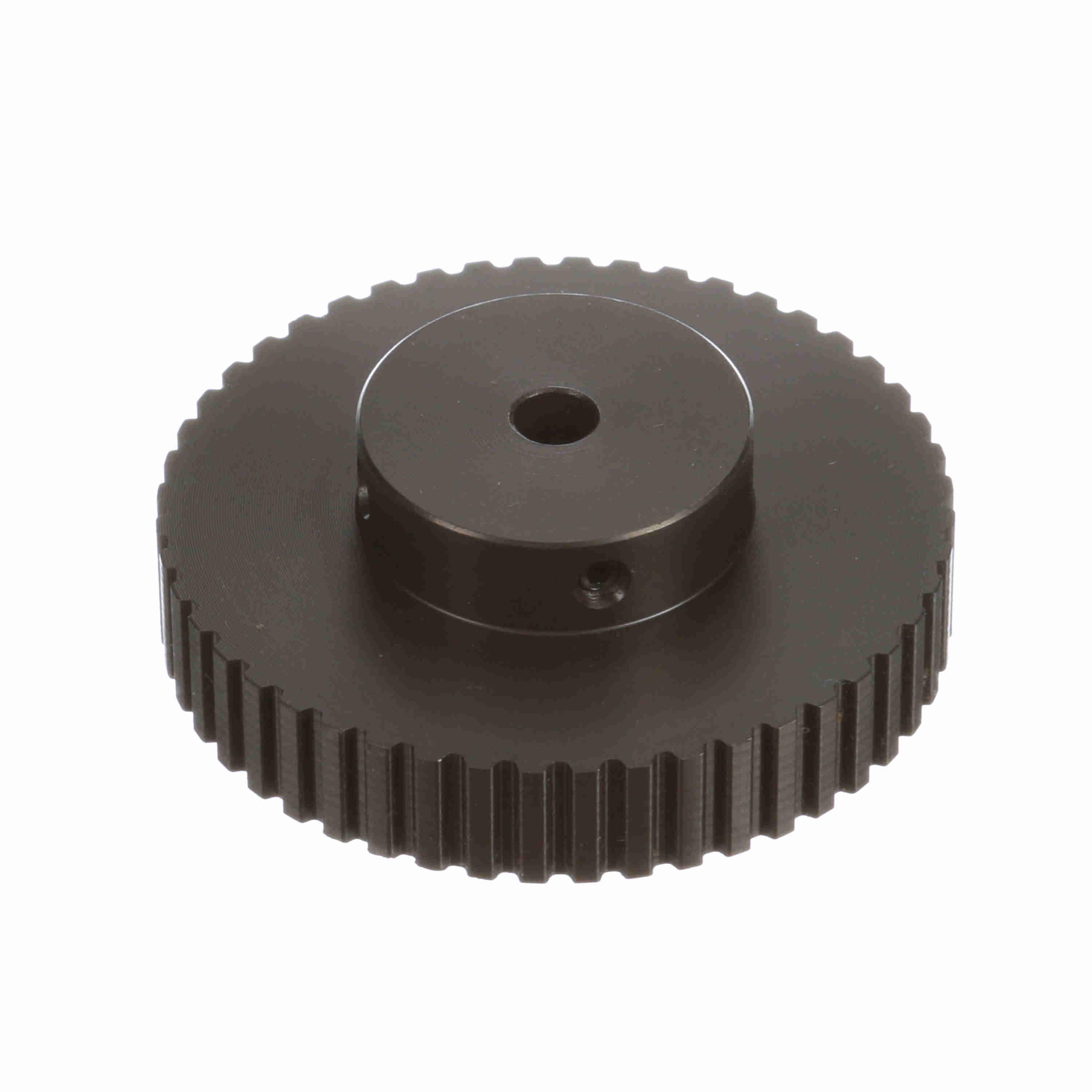

Browning® 1430883 Type 2A Synchronous Timing Pulley, 5/16 to 1 in, 3.036 in OD, 48 Grooves, 3.056 in Dia Pitch, 0.563 in W Face

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO48XLB037S
  • Alt Part Number: 48XLB037S
  • MPN: 1430883
  • UPC: 662289753994
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® Gearbelt® Synchronous Timing Pulley, Type 2A, 5/16 to 1 in Bore, 3.036 in OD, 3.056 in Pitch Diameter, 48 Grooves, 1/5 in Pitch, 0.563 in Face Width, 1-1/2 in Diameter Hub, 0.438 in Hub Projection, MPB Bushing, 1 in Overall Length, For Use With: 3/8 in W Type XL Belt, Steel

Bore Diameter      :      5/16 to 1 in
Bushing Type      :      MPB
Face Width      :      0.563 in
Hub Diameter      :      1-1/2 in
Hub Projection      :      0.438 in
Material      :      Steel
Number of Grooves      :      48
Outside Diameter      :      3.036 in
Overall Length      :      1 in
Pitch Diameter      :      3.056 in
Pitch      :      1/5 in
Suitable For Use With      :      3/8 in W Type XL Belt
Type      :      Type 2A
  • Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
  • Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
  • High modulus strength member, needs minimum take-up
  • Freedom from initial belt tension, reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
  • Less heat, because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
  • Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
  • Cooler running means longer life
  • Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
  • Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
  • High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
  • Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
  • Assures less vibration and Smoother , quieter performance
  • Notched belts provide higher horsepower than wrapped belts
