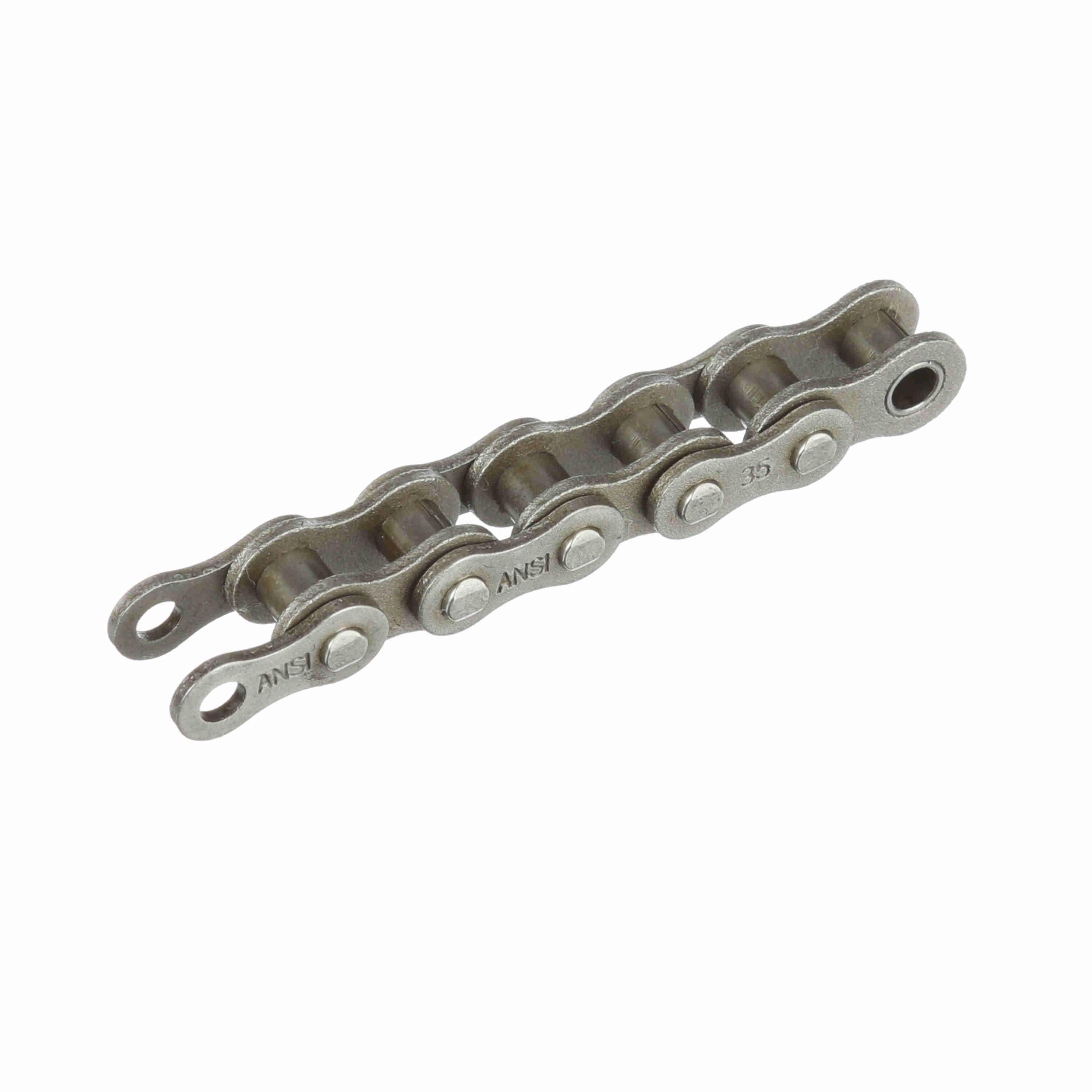

Browning® 1293455 BROJ35R-10
Browning® 1293455 Riveted Standard Duty Roller Chain, 10 ft OAL, 3/8 in Pitch, 0.2 in Dia x 3/16 in W Roller, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROJ35R-10
- Alt Part Number: J35 RIV 10 FT CH
- MPN: 1293455
- UPC: 662289243495
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 10/ft
-
Price:
All Browning® ANSI B29.1 roller chain is prestressed, a production operation that permanently seats the various chain components. Prestressing minimizes the chain stretch which often occurs with ordinary chain during the initial running period, thus avoids excessive early wear and reduces the need for take-up adjustment. Prestressing minimizes tolerance variations too, ensuring balanced loading among all parts and avoiding premature fatigue failure.
Browning® Roller Chain, Riveted Standard Duty, 3/8 in Pitch, 0.141 in Pin Diameter, 0.466 in Pin Length, 0.2 in Roller Diameter, 3/16 in Roller Width, 0.35 in Plate Height, 0.05 in Plate Thickness, 1 Strands, 2100 lb Tensile Strength, 10 ft Overall Length, Steel
| Material | : | Steel |
| Number of Strands | : | 1 |
| Overall Length | : | 10 ft |
| Pin Diameter | : | 0.141 in |
| Pin Length | : | 0.466 in |
| Pitch | : | 3/8 in |
| Plate Height | : | 0.35 in |
| Plate Thickness | : | 0.05 in |
| Roller Diameter | : | 0.2 in |
| Roller Width | : | 3/16 in |
| Tensile Strength | : | 2100 lb |
| Type | : | Riveted Standard Duty |
- Exceptional Quality and Performance in Browning Chain
- Rigid manufacturing processes result in a fully-featured chain
