Browning® 1224153 BRONCG12108
  1. pin-int

Browning® 1224153 BRONCG12108

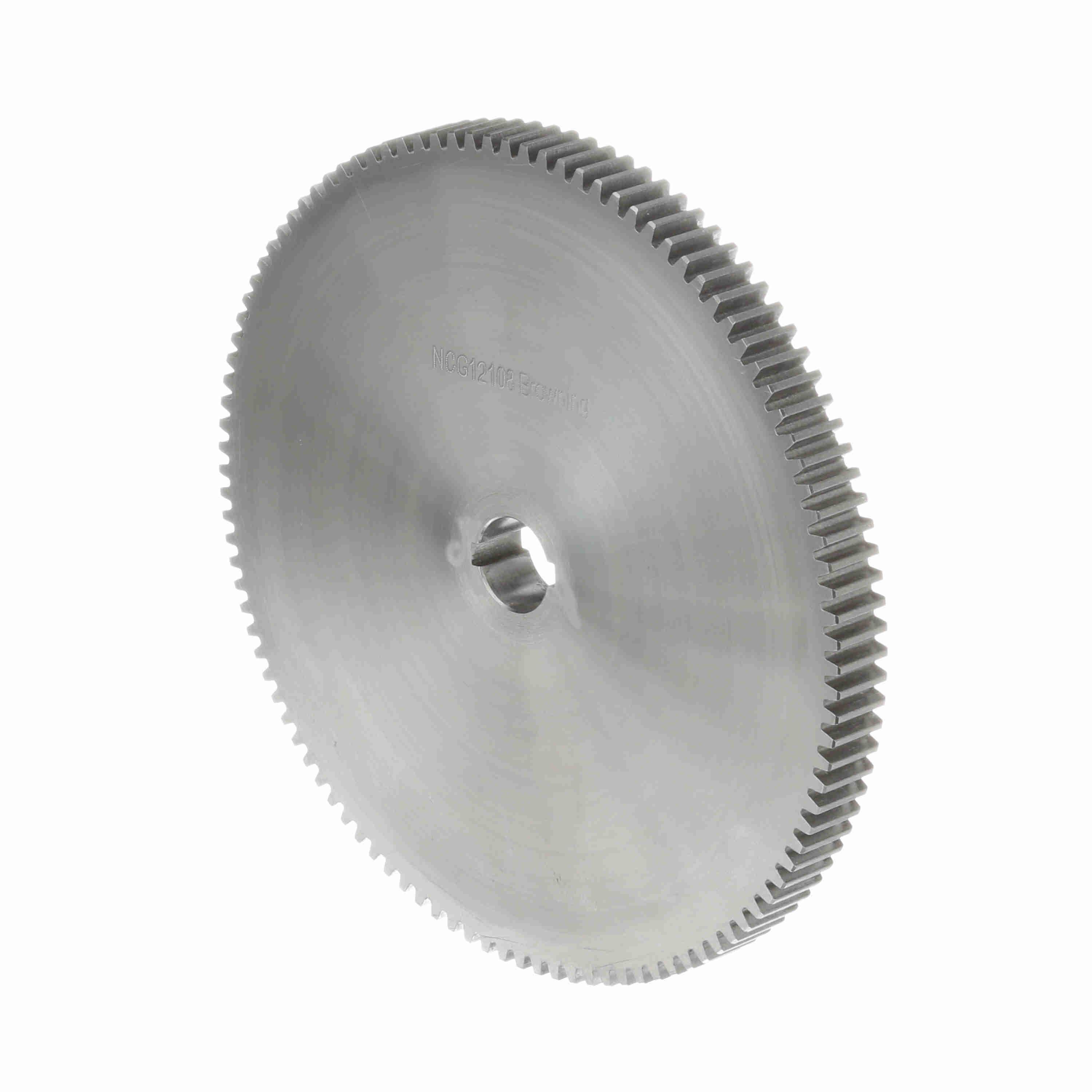

Browning® 1224153 Minimum Plain Bore Type C1 Change Gear Without Hardened Teeth, 1 in Dia Bore

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONCG12108
  • Alt Part Number: NCG12108
  • MPN: 1224153
  • UPC: 662289150724
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® is one of the most comprehensive lines of off-the shelf gears in the industry, including spur, miter and bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 dp and 14-1/2 deg pressure angle from 48 to 3 dp all designed to increase output, reduce costs and avoid specials.

Browning® Change Gear, Minimum Plain Bore Type C1, 1 in Bore Dia, 9.16 in Outside Dia, 108 Teeth, 12 Diametral Pitch, 9 in, 3/4 in Face Width, 3/4 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      1 in
Diametral Pitch      :      12
Face Width      :      3/4 in
Material      :      Steel
Number of Teeth      :      108
Outside Diameter      :      9.16 in
Overall Length      :      3/4 in
Pitch Diameter      :      9 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore Type C1
  • Thousands of shaft-ready finished bore and bushing types eliminate rework costs, assure true-running precision at all times
  • More stock sizes made of steel and weldability plus greater strength, at cast iron prices
  • Extra tooth depth and larger radii provide stronger teeth, a deeper lubrication reservoir and more clearance
  • Many odd tooth sizes
  • Custom gear capabilities up to 60 in Dia and 17 in face
