Browning® 1220243 BROYCS8P72

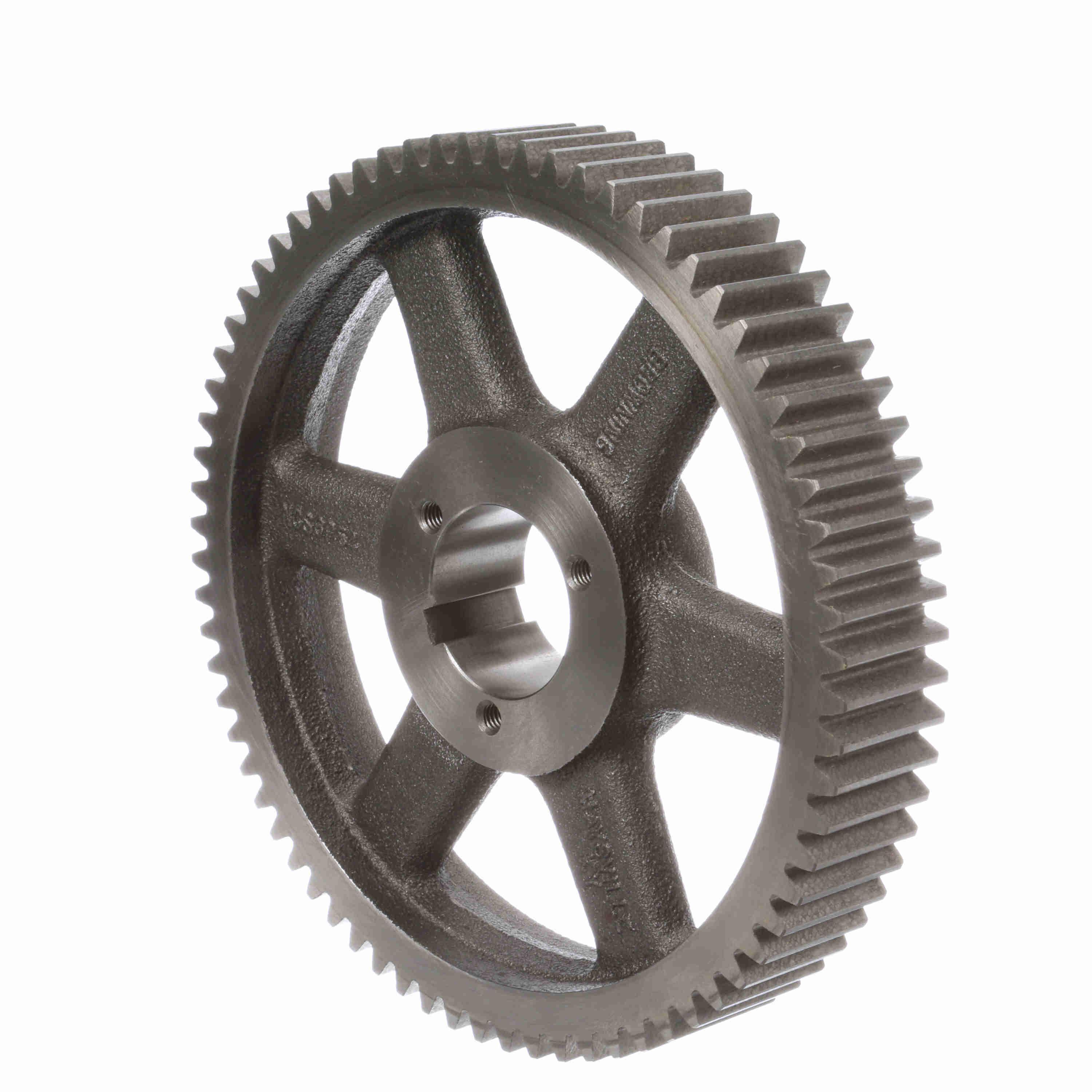

Browning® 1220243 Type 17 Spur Gear With Type P1 Split Taper® Bushing, 8 Diametral Pitch, 20 deg Pressure Angle, 1-1/2 in W Face, 72 Teeth, 9 in Dia Pitch, 1/2 to 1-3/4 in Dia Bore, Cast Iron

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROYCS8P72
  • Alt Part Number: YCS8P72
  • MPN: 1220243
  • UPC: 662289207961
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Type 17, 1/2 to 1-3/4 in Bore, 9-1/4 in OD, 1:1 Gear Ratio, 72 Teeth, 8 Diametral Pitch, 9 in Pitch Diameter, 1-1/2 in Face Width, 3 in Diameter Hub, 7/16 in Hub Projection, 2-3/16 in Overall Length, 20 deg Pressure Angle, 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in Keyway, Cast Iron

Bore Diameter      :      1/2 to 1-3/4 in
Diametral Pitch      :      8
Face Width      :      1-1/2 in
Gear Ratio      :      1:1
Hub Diameter      :      3 in
Hub Projection      :      7/16 in
Keyway Size      :      1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in
Material      :      Cast Iron
Number of Teeth      :      72
Outside Diameter      :      9-1/4 in
Overall Length      :      2-3/16 in
Pitch Diameter      :      9 in
Pressure Angle      :      20 deg
Type      :      Type 17
