Browning® 1214931 BRONCS3R54
  1. pin-int

Browning® 1214931 BRONCS3R54

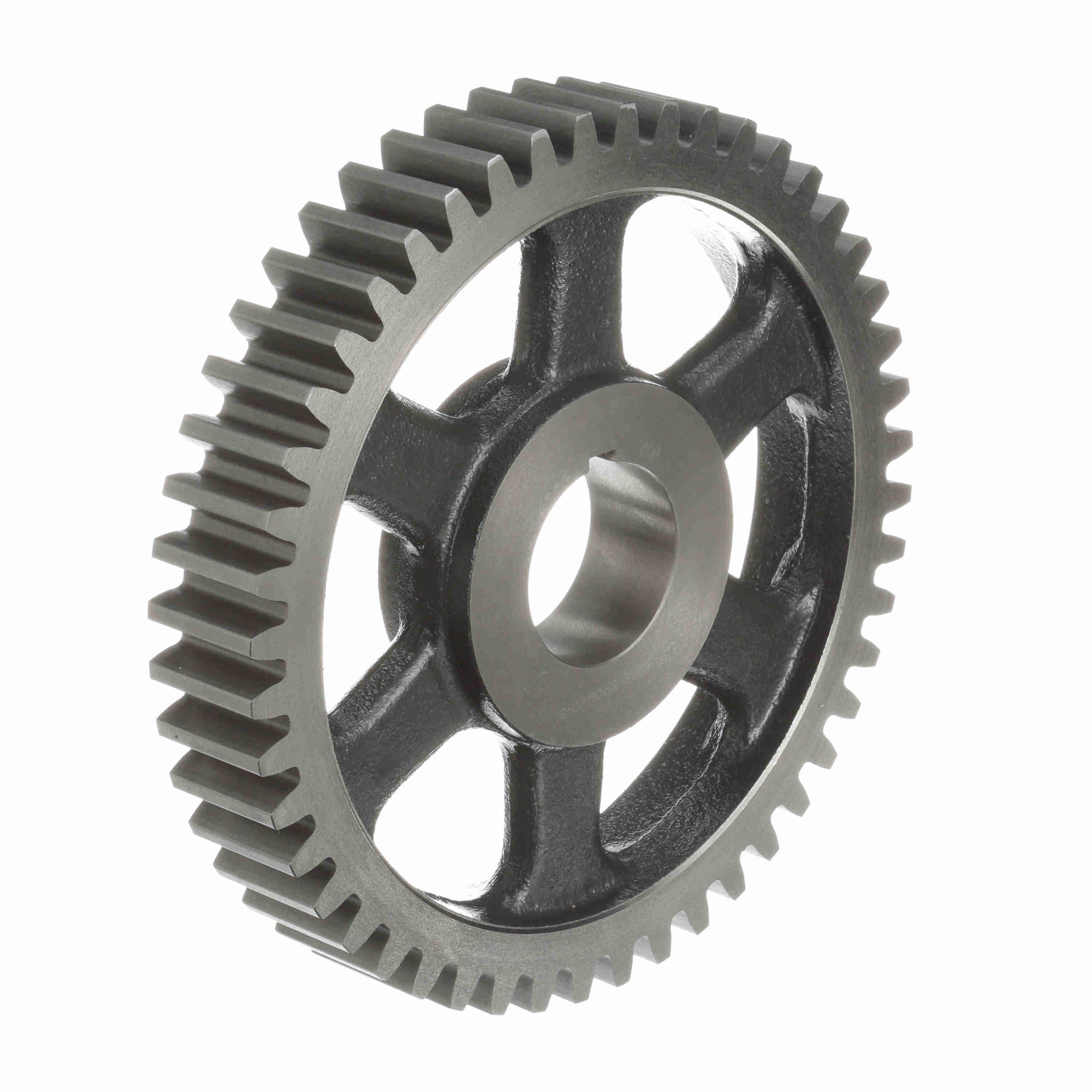

Browning® 1214931 Type 18 Spur Gear With Type R1 Split Taper® Bushing, 3 Diametral Pitch, 14.5 deg Pressure Angle, 3 in W Face, 54 Teeth, 18 in Dia Pitch, 1-1/8 to 3-3/4 in Dia Bore, Cast Iron

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONCS3R54
  • Alt Part Number: NCS3R54
  • MPN: 1214931
  • UPC: 662289166466
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Type 18, 1-1/8 to 3-3/4 in Bore, 18.66 in OD, 1:1 Gear Ratio, 54 Teeth, 3 Diametral Pitch, 18 in Pitch Diameter, 3 in Face Width, 5-3/8 in Diameter Hub, 1/8 in Hub Projection, 3-5/32 in Overall Length, 14.5 deg Pressure Angle, Cast Iron

Bore Diameter      :      1-1/8 to 3-3/4 in
Diametral Pitch      :      3
Face Width      :      3 in
Gear Ratio      :      1:1
Hub Diameter      :      5-3/8 in
Hub Projection      :      1/8 in
Material      :      Cast Iron
Number of Teeth      :      54
Outside Diameter      :      18.66 in
Overall Length      :      3-5/32 in
Pitch Diameter      :      18 in
Pressure Angle      :      14.5 deg
Type      :      Type 18
  • Helical Gears are quieter than spur gears and give maximum smoothness on parallel shafts
