Browning® 1214477 BRONSS5P20

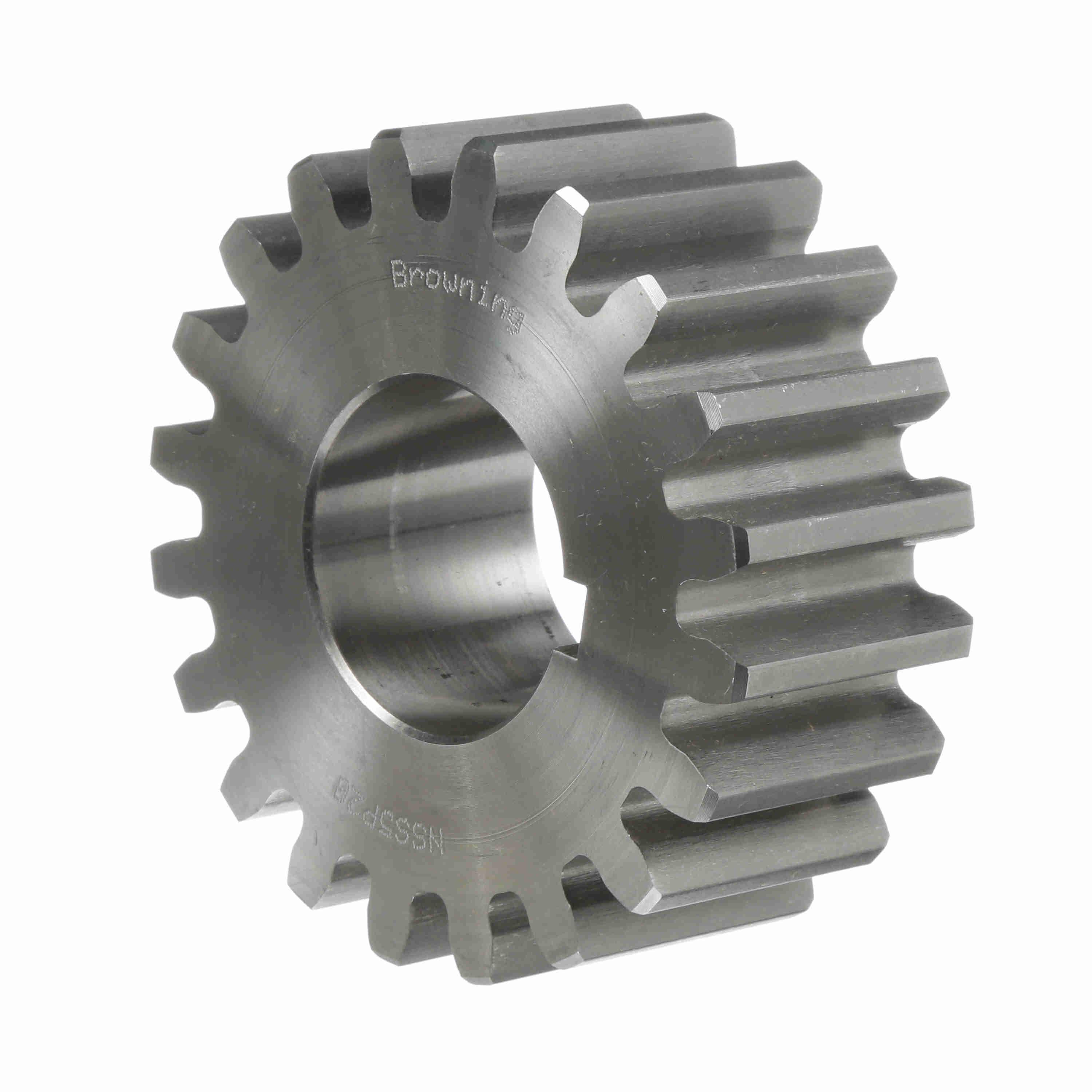

Browning® 1214477 Type 11 Spur Gear With Type P1 Split Taper® Bushing, 5 Diametral Pitch, 14.5 deg Pressure Angle, 1-3/4 in W Face, 20 Teeth, 4 in Dia Pitch, 1/2 to 1-3/4 in Dia Bore, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRONSS5P20
- Alt Part Number: NSS5P20
- MPN: 1214477
- UPC: 662289115969
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
Browning® Spur Gear, Type 11, 1/2 to 1-3/4 in Bore, 4.4 in OD, 1:1 Gear Ratio, 20 Teeth, 5 Diametral Pitch, 4 in Pitch Diameter, 1-3/4 in Face Width, 3 in Diameter Hub, 5/8 in Hub Projection, 2-5/8 in Overall Length, 14.5 deg Pressure Angle, 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in Keyway, Steel
| Bore Diameter | : | 1/2 to 1-3/4 in |
| Diametral Pitch | : | 5 |
| Face Width | : | 1-3/4 in |
| Gear Ratio | : | 1:1 |
| Hub Diameter | : | 3 in |
| Hub Projection | : | 5/8 in |
| Keyway Size | : | 1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in |
| Material | : | Steel |
| Number of Teeth | : | 20 |
| Outside Diameter | : | 4.4 in |
| Overall Length | : | 2-5/8 in |
| Pitch Diameter | : | 4 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Type 11 |
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
- Less expensive
- Without hardened teeth
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
