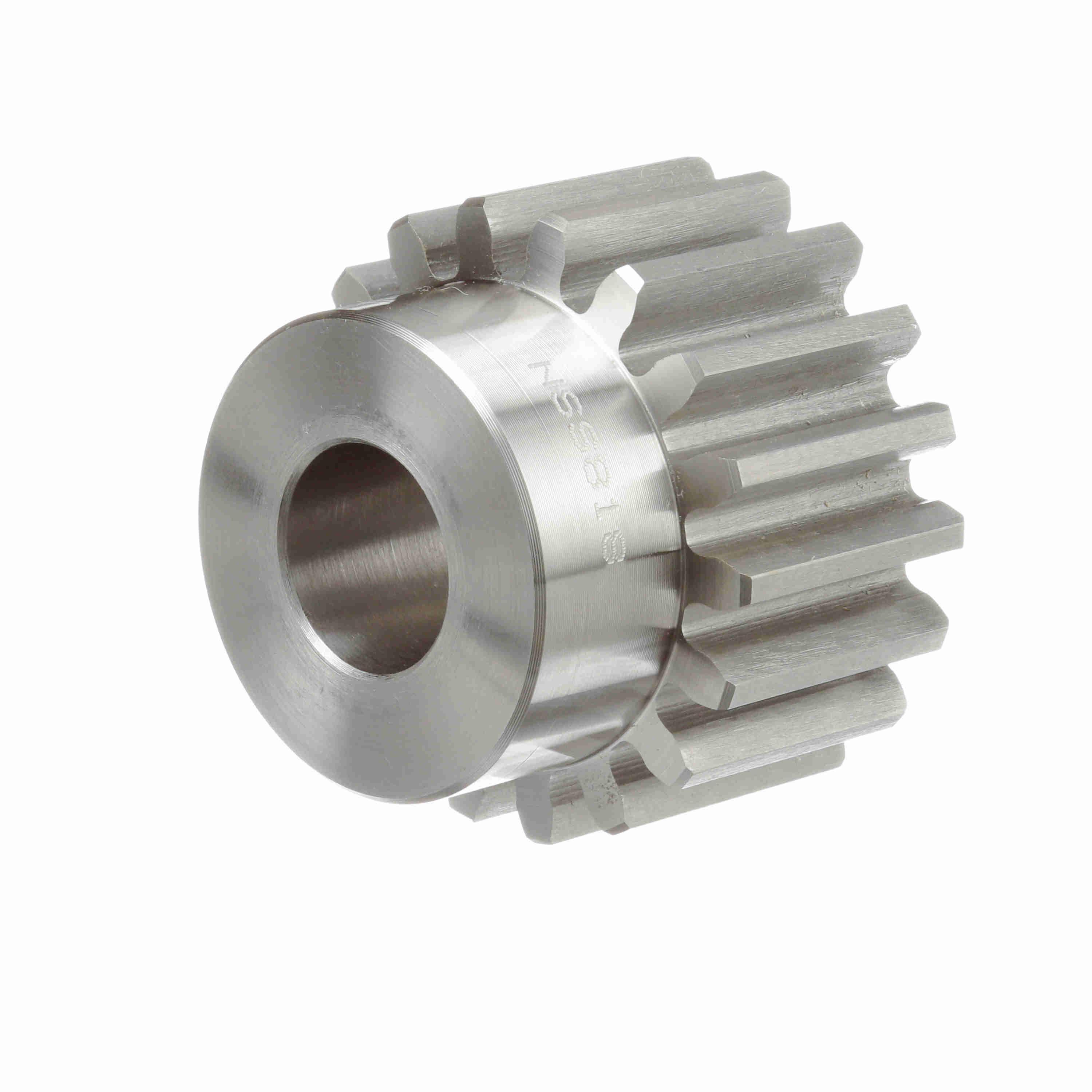

Browning® 1212331 Minimum Plain Bore Type 2 Spur Gear, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 18 Teeth, 2-1/4 in Dia Pitch, 7/8 to 1-1/8 in Dia Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONSS818
  • Alt Part Number: NSS818
  • MPN: 1212331
  • UPC: 662289213689
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Minimum Plain Bore Type 2, 7/8 to 1-1/8 in Bore, 2-1/2 in OD, 1:1 Gear Ratio, 18 Teeth, 8 Diametral Pitch, 2-1/4 in Pitch Diameter, 1-1/4 in Face Width, 1-7/8 in Diameter Hub, 3/4 in Hub Projection, 2 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      7/8 to 1-1/8 in
Diametral Pitch      :      8
Face Width      :      1-1/4 in
Gear Ratio      :      1:1
Hub Diameter      :      1-7/8 in
Hub Projection      :      3/4 in
Material      :      Steel
Number of Teeth      :      18
Outside Diameter      :      2-1/2 in
Overall Length      :      2 in
Pitch Diameter      :      2-1/4 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore Type 2
  • Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
  • Designed to increase output, reduce costs and avoid specials
  • Minimum bore spur gears are provided from stock to allow for simple modifications
  • Without hardened teeth
  • Browning Gears are rated in accordance with AGMA standards
  • When you think Special Gears - Think Browning
