Browning® 1210848 BRONSS20100
  1. pin-int

Browning® 1210848 BRONSS20100

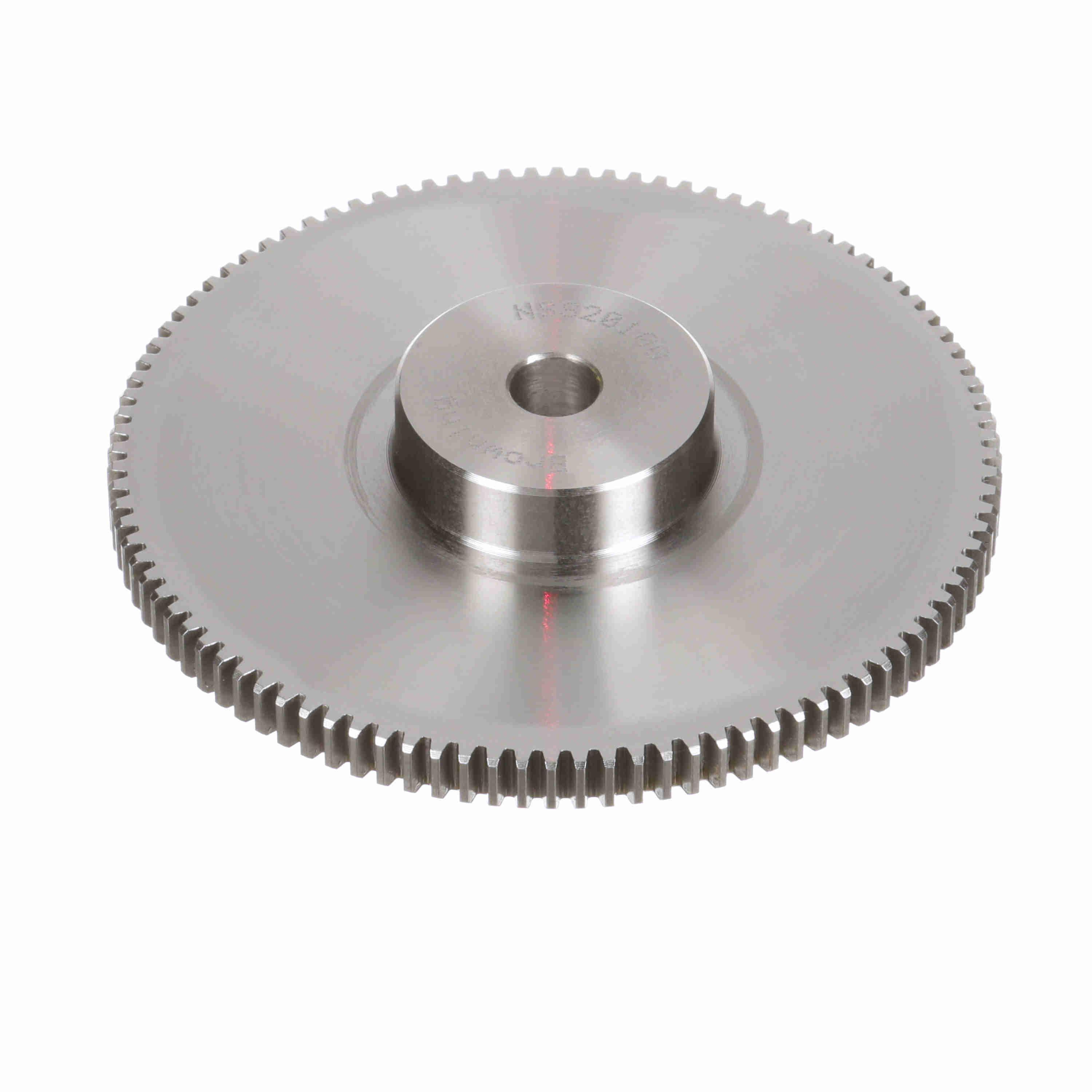

Browning® 1210848 Minimum Plain Bore Spur Gear, 20 Diametral Pitch, 14.5 deg, 3/8 in W Face, 100 Teeth, 5 in Dia Pitch, 1/2 in Dia Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONSS20100
  • Alt Part Number: NSS20100
  • MPN: 1210848
  • UPC: 662289162031
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Minimum Plain Bore, 1/2 in Bore Dia, 5.1 in Outside Dia, 100 Teeth, 20 Diametral Pitch, 5 in, 3/8 in Face Width, 1-13/16 in Hub Dia, 1/2 in Hub Projection, 7/8 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      1/2 in
Diametral Pitch      :      20
Face Width      :      3/8 in
Hub Diameter      :      1-13/16 in
Hub Projection      :      1/2 in
Material      :      Steel
Number of Teeth      :      100
Outside Diameter      :      5.1 in
Overall Length      :      7/8 in
Pitch Diameter      :      5 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore
  • Browning® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
  • Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
  • Designed to increase output, reduce costs and avoid specials
  • Minimum bore spur gears are provided from stock to allow for simple modifications
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_3426020_Catalog.pdf
