Browning® 1210673 BRONSS2032

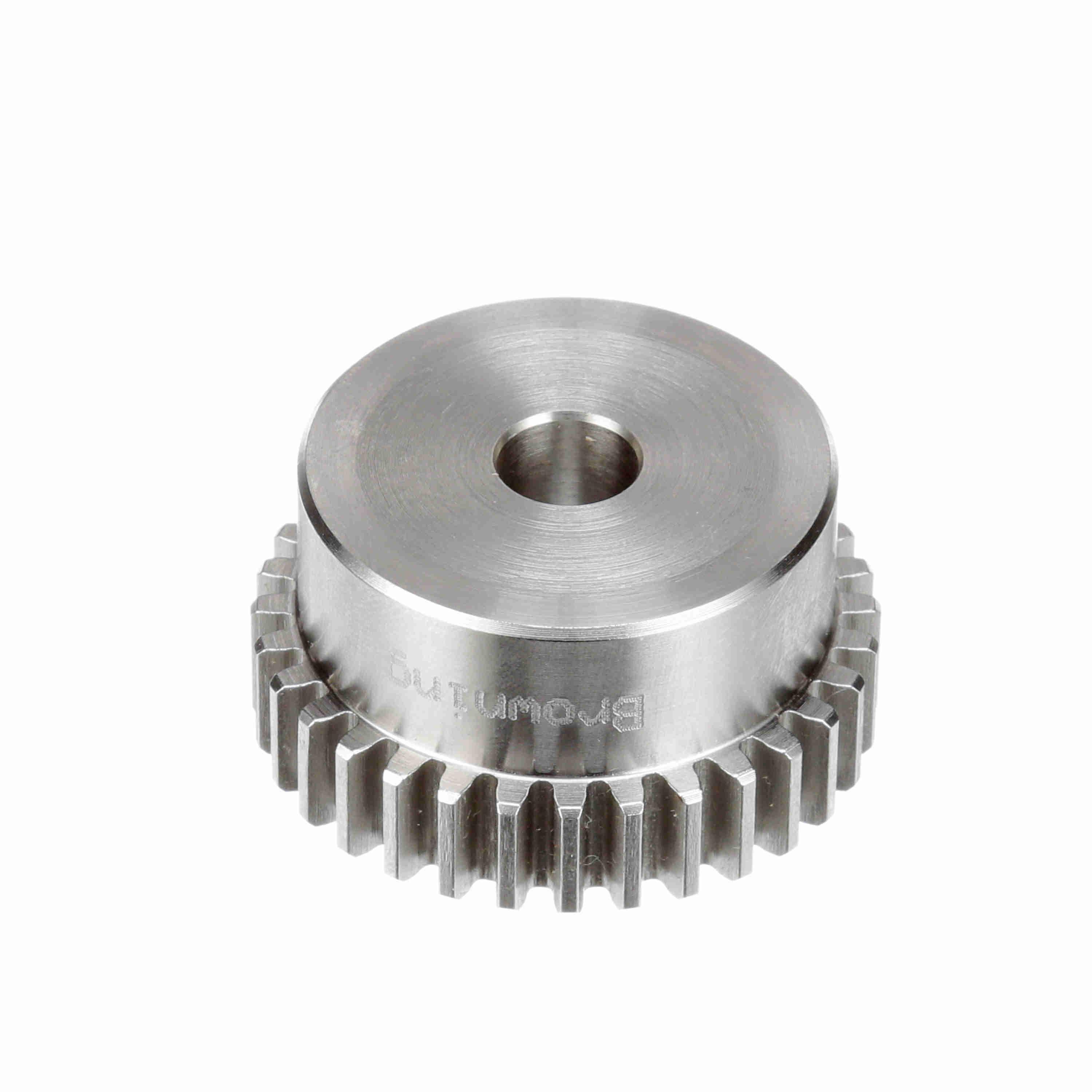

Browning® 1210673 Minimum Plain Bore Type 2 Spur Gear, 20 Diametral Pitch, 14.5 deg Pressure Angle, 3/8 in W Face, 32 Teeth, 1.6 in Dia Pitch, 3/8 to 3/4 in Dia Bore, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRONSS2032
- Alt Part Number: NSS2032
- MPN: 1210673
- UPC: 662289101917
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
Browning® Spur Gear, Minimum Plain Bore Type 2, 3/8 to 3/4 in Bore, 1.7 in OD, 1:1 Gear Ratio, 32 Teeth, 20 Diametral Pitch, 1.6 in Pitch Diameter, 3/8 in Face Width, 1.438 in Diameter Hub, 1/2 in Hub Projection, 7/8 in Overall Length, 14.5 deg Pressure Angle, Steel
| Bore Diameter | : | 3/8 to 3/4 in |
| Diametral Pitch | : | 20 |
| Face Width | : | 3/8 in |
| Gear Ratio | : | 1:1 |
| Hub Diameter | : | 1.438 in |
| Hub Projection | : | 1/2 in |
| Material | : | Steel |
| Number of Teeth | : | 32 |
| Outside Diameter | : | 1.7 in |
| Overall Length | : | 7/8 in |
| Pitch Diameter | : | 1.6 in |
| Pressure Angle | : | 14.5 deg |
| Type | : | Minimum Plain Bore Type 2 |
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Without hardened teeth
- Browning Gears are rated in accordance with AGMA standards
- When you think Special Gears - Think Browning
