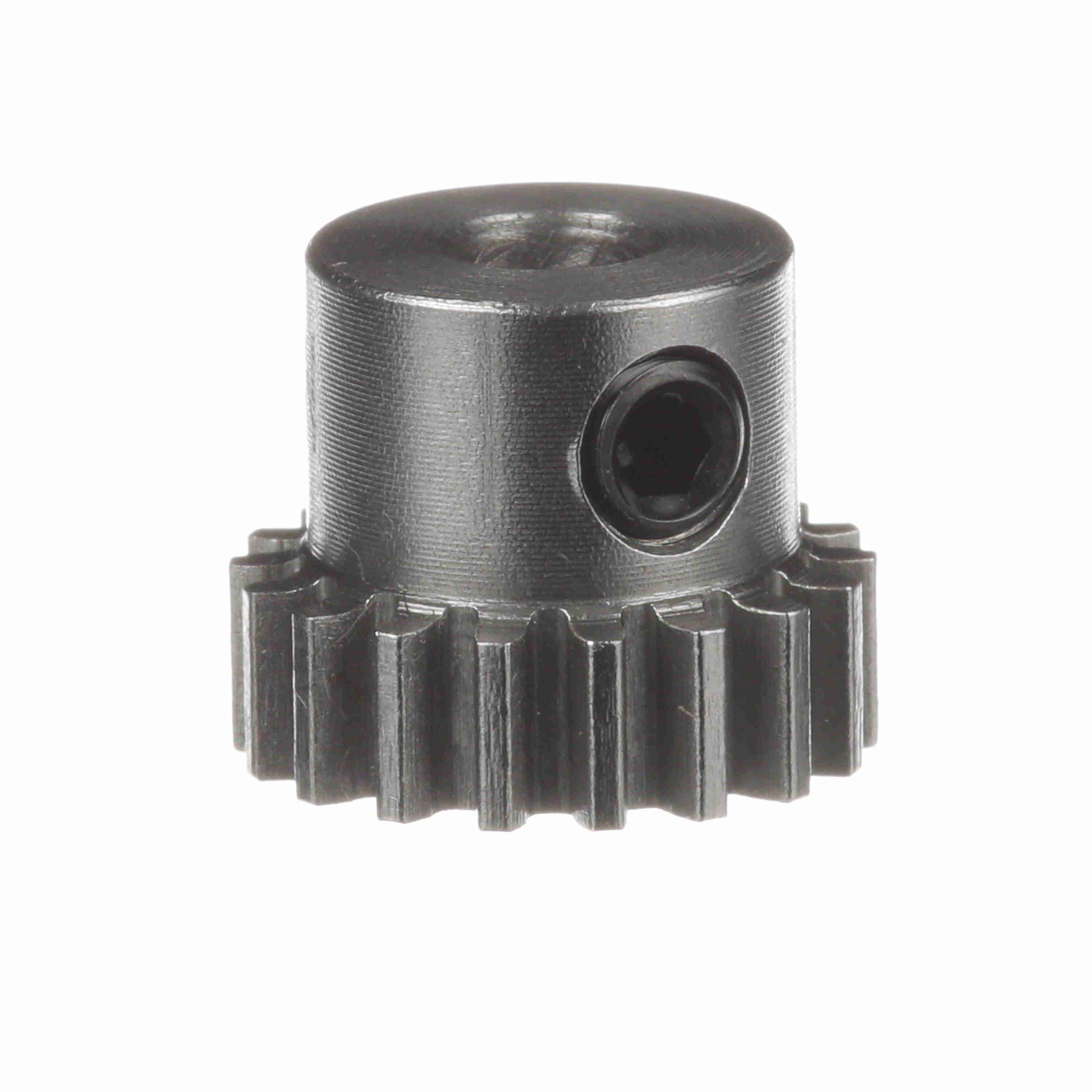

Browning® 1209998 BRONSS3218

Browning® 1209998 Minimum Plain Bore Spur Gear, 32 Diametral Pitch, 14.5 deg, 3/16 in W Face, 18 Teeth, 0.562 in Dia Pitch, 3/16 in Dia Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONSS3218
  • Alt Part Number: NSS3218
  • MPN: 1209998
  • UPC: 662289121199
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Minimum Plain Bore, 3/16 in Bore Dia, 0.62 in Outside Dia, 18 Teeth, 32 Diametral Pitch, 0.562 in, 3/16 in Face Width, 15/32 in Hub Dia, 5/16 in Hub Projection, 1/2 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      3/16 in
Diametral Pitch      :      32
Face Width      :      3/16 in
Hub Diameter      :      15/32 in
Hub Projection      :      5/16 in
Material      :      Steel
Number of Teeth      :      18
Outside Diameter      :      0.62 in
Overall Length      :      1/2 in
Pitch Diameter      :      0.562 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore
