Browning® 1209956 BRONSS2448A
  1. pin-int

Browning® 1209956 BRONSS2448A

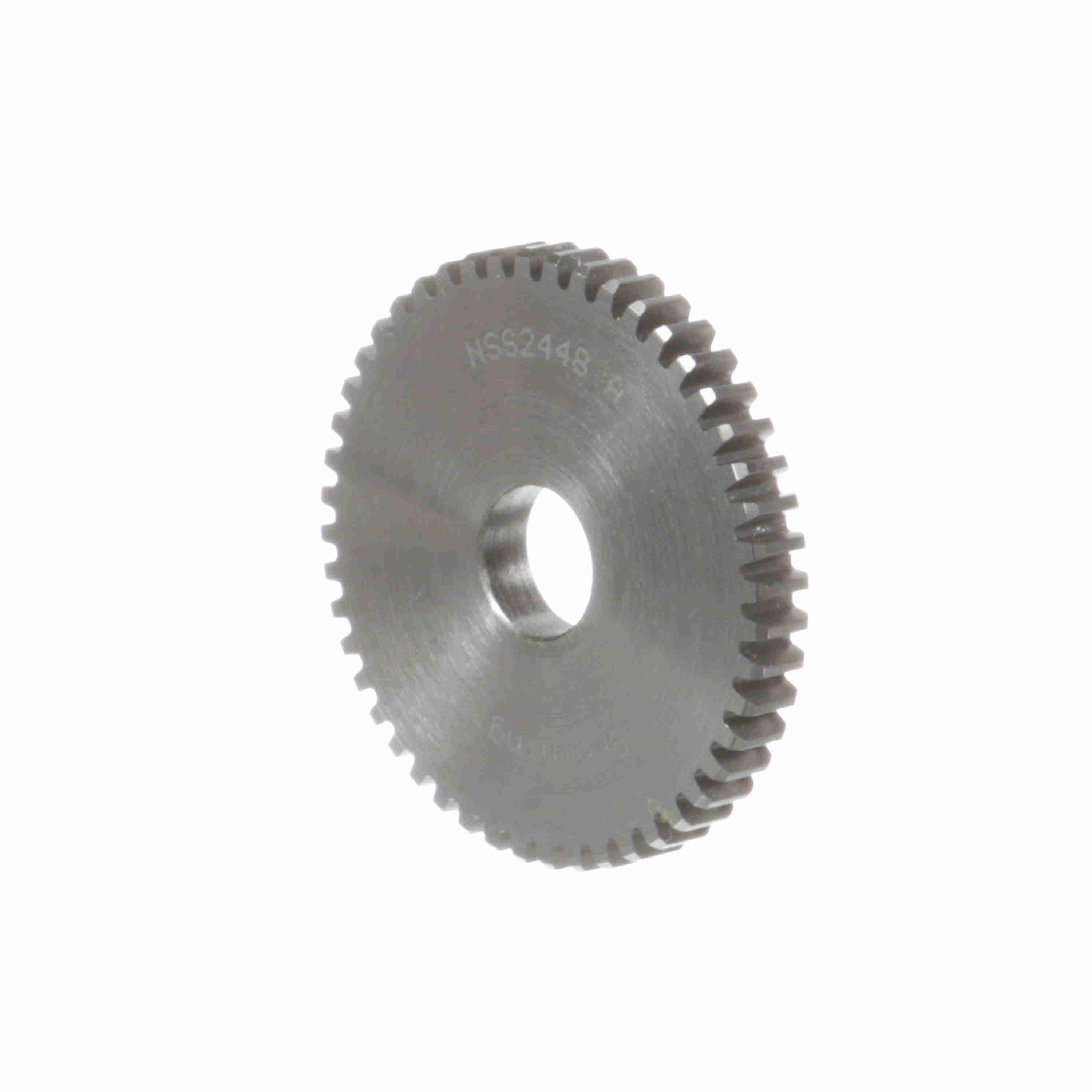

Browning® 1209956 Minimum Plain Bore Type A2 Spur Gear, 24 Diametral Pitch, 14.5 deg Pressure Angle, 1/4 in W Face, 48 Teeth, 2 in Dia Pitch, 1/2 in Dia Bore, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRONSS2448A
  • Alt Part Number: NSS2448A
  • MPN: 1209956
  • UPC: 662289111152
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.

Browning® Spur Gear, Minimum Plain Bore Type A2, 1/2 in Bore, 2.08 in OD, 1:1 Gear Ratio, 48 Teeth, 24 Diametral Pitch, 2 in Pitch Diameter, 1/4 in Face Width, 1/4 in Overall Length, 14.5 deg Pressure Angle, Steel

Bore Diameter      :      1/2 in
Diametral Pitch      :      24
Face Width      :      1/4 in
Gear Ratio      :      1:1
Material      :      Steel
Number of Teeth      :      48
Outside Diameter      :      2.08 in
Overall Length      :      1/4 in
Pitch Diameter      :      2 in
Pressure Angle      :      14.5 deg
Type      :      Minimum Plain Bore Type A2
