Browning® 1188309 BROSHU2HUB

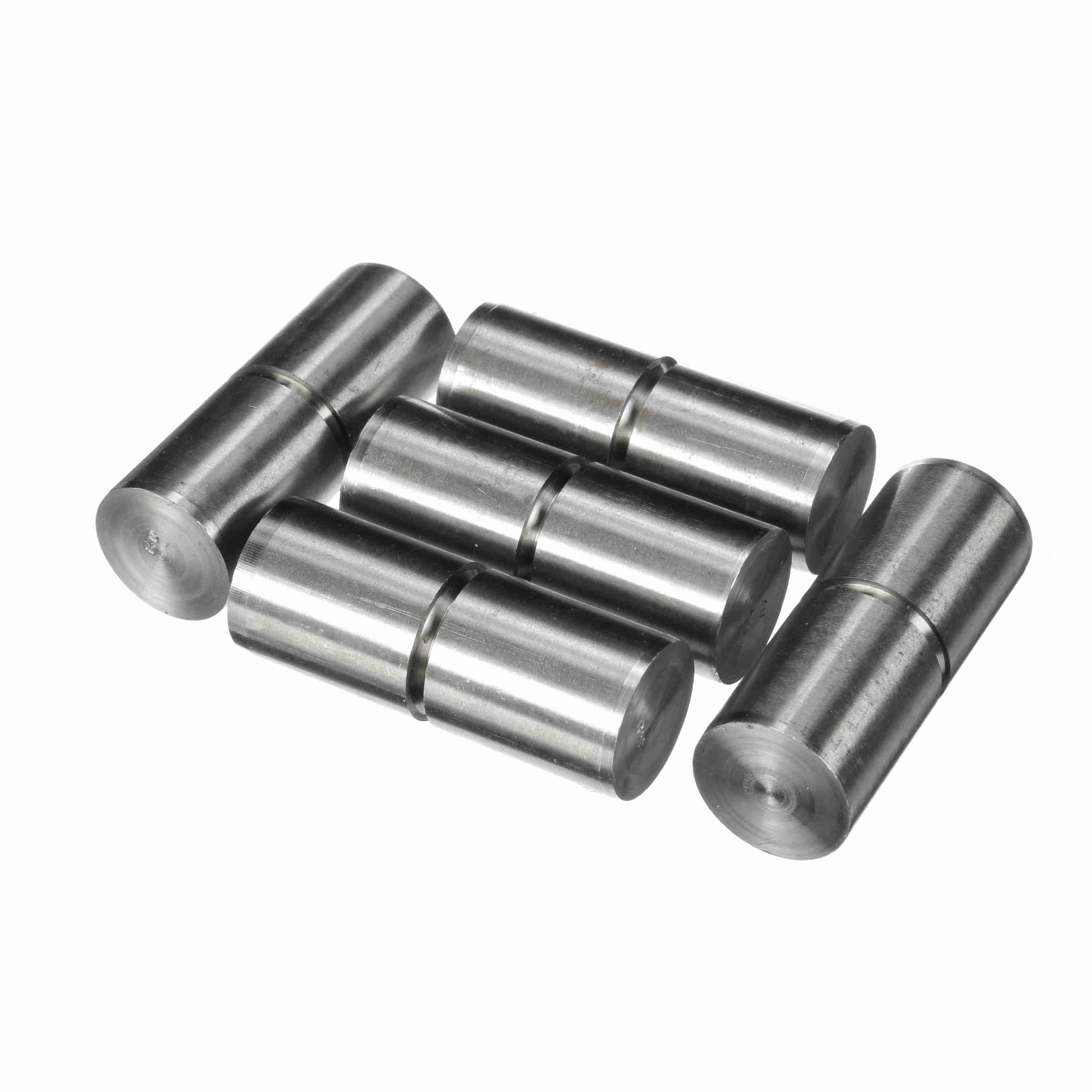

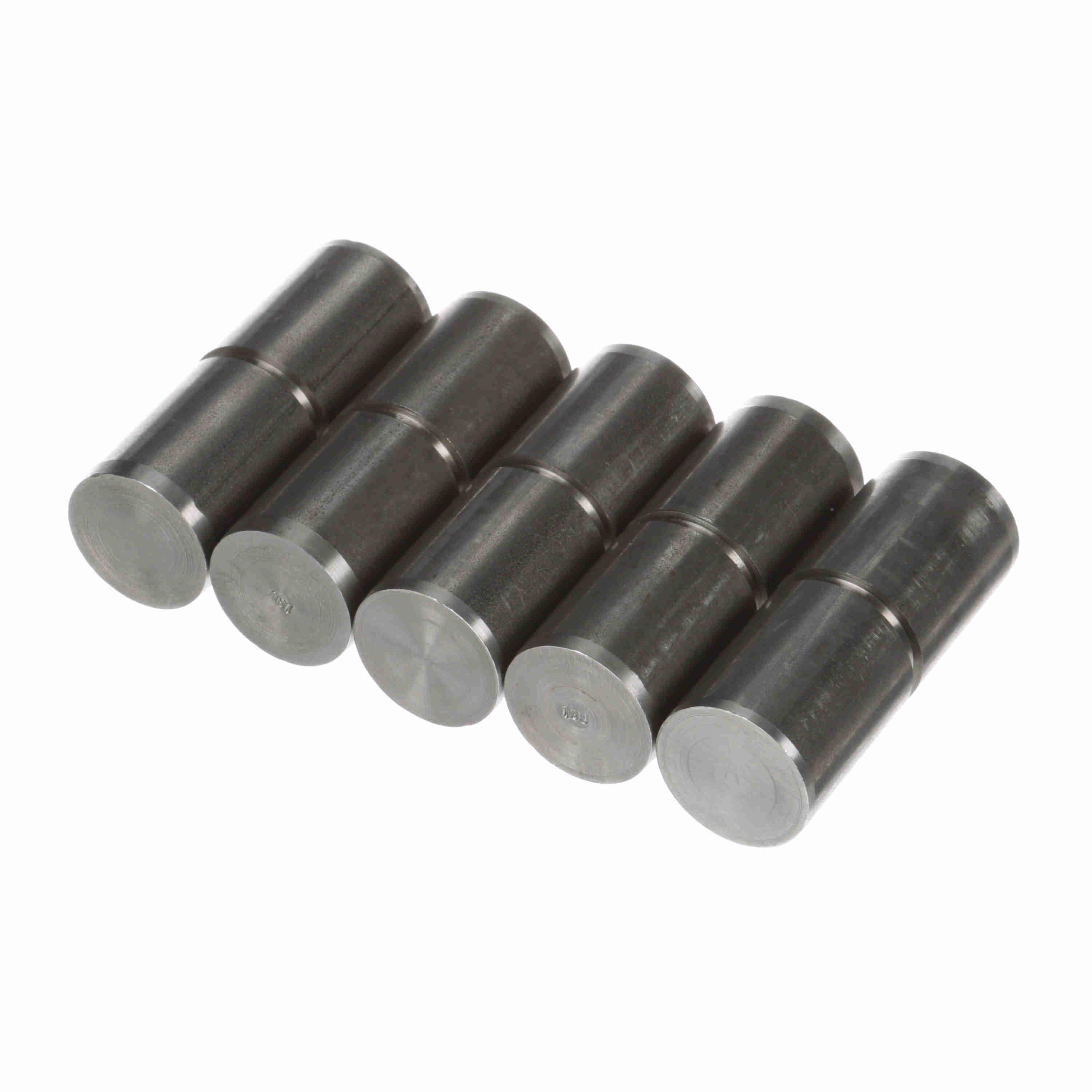

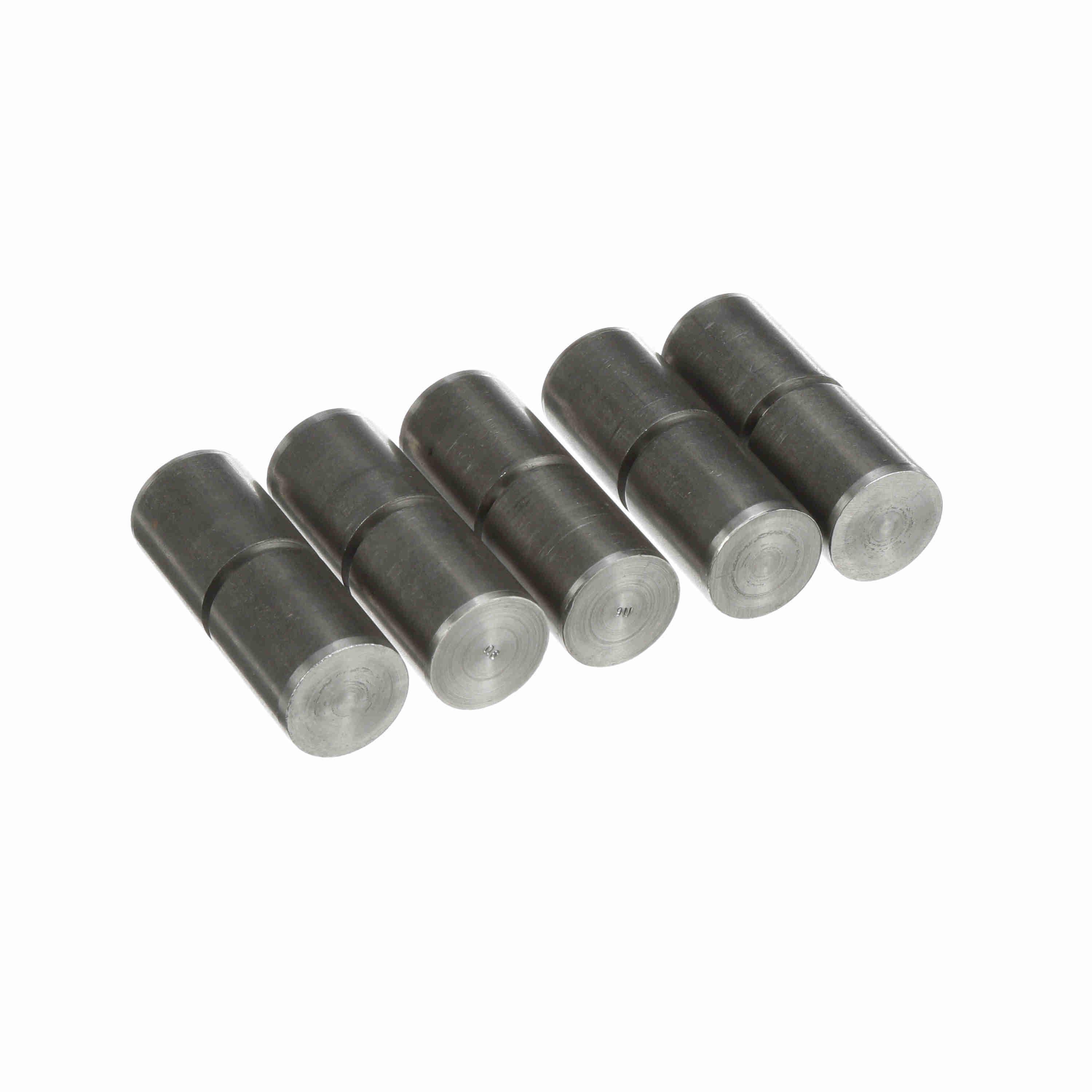

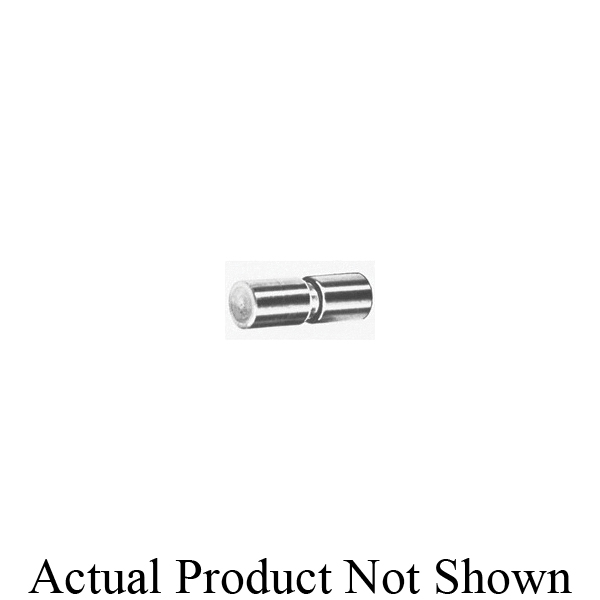

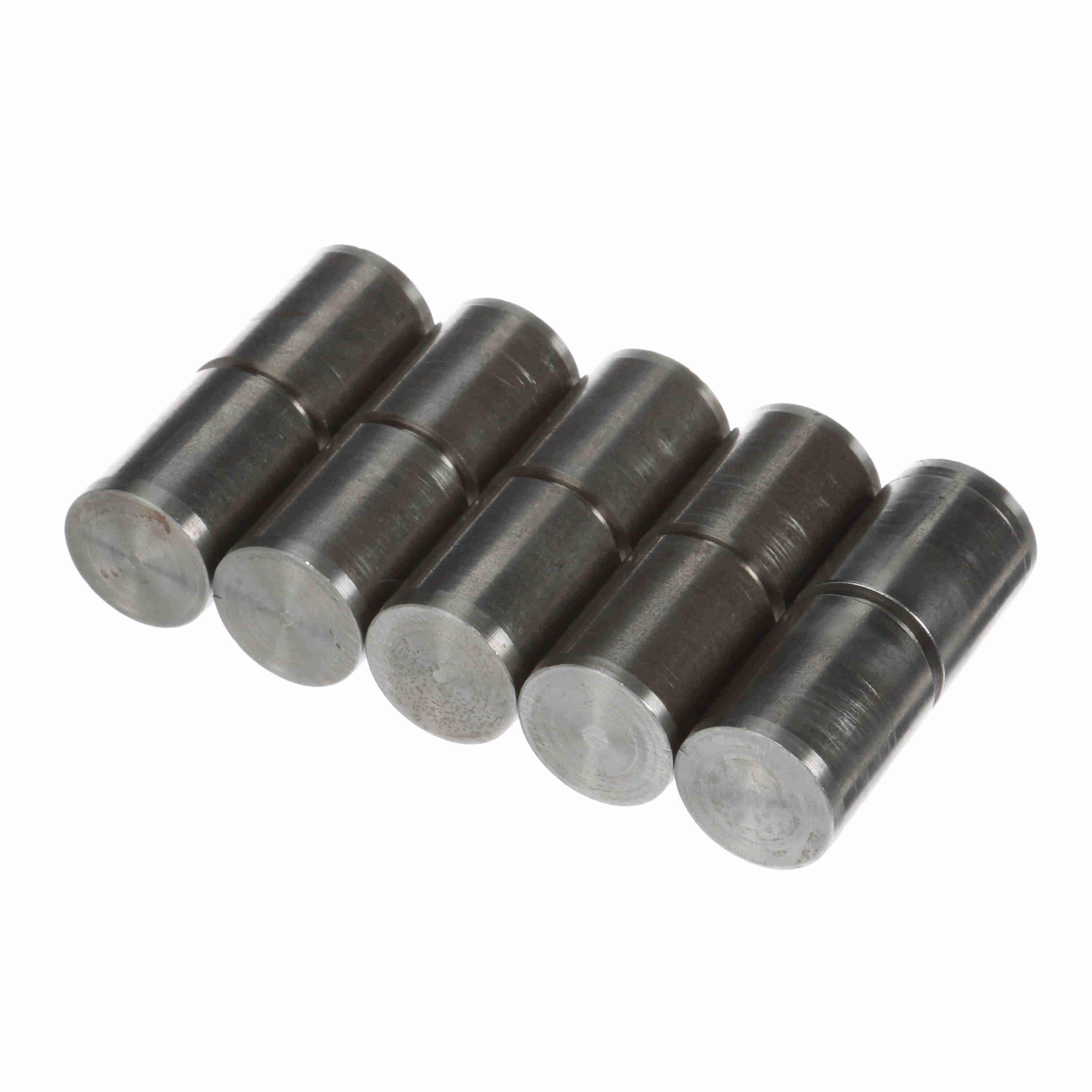

Browning® shear pin hubs are designed to shear a necked pin at a predetermined load. This protects equipment from overloads. Consisting of a hub assembly, a sprocket and shear pin, the shear pin bridges between the sprocket and hub assembly. The shear pin is available in load increments, so the closest one to your application requirements must be chosen. Resetting the shear pin hub is accomplished manually by replacing the shear pin. Best applied to applications where infrequent overloads are encountered. Torque capacity is up to 50720 in-lb.

Browning® Shear Pin Hub, Type 2, 2-7/16 to 5 in Bore, 21 in OD Flange, 10-19/32 in Length Through Bore, 59670 to 258870 in-lb Torque, 7/8 in Bolt, 4 Bolt Holes, Steel

• Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
• Browning shear pin hubs are designed to prevent damage due to an overload or jam by shearing the necked pin at a predetermined load
• Browning shear pin hubs consist of 3 parts - steel sprockets, hub assembly, malleable bushing

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1305093_Installation_Manual.pdf
• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
