Browning® 1178599 BROH100Q24

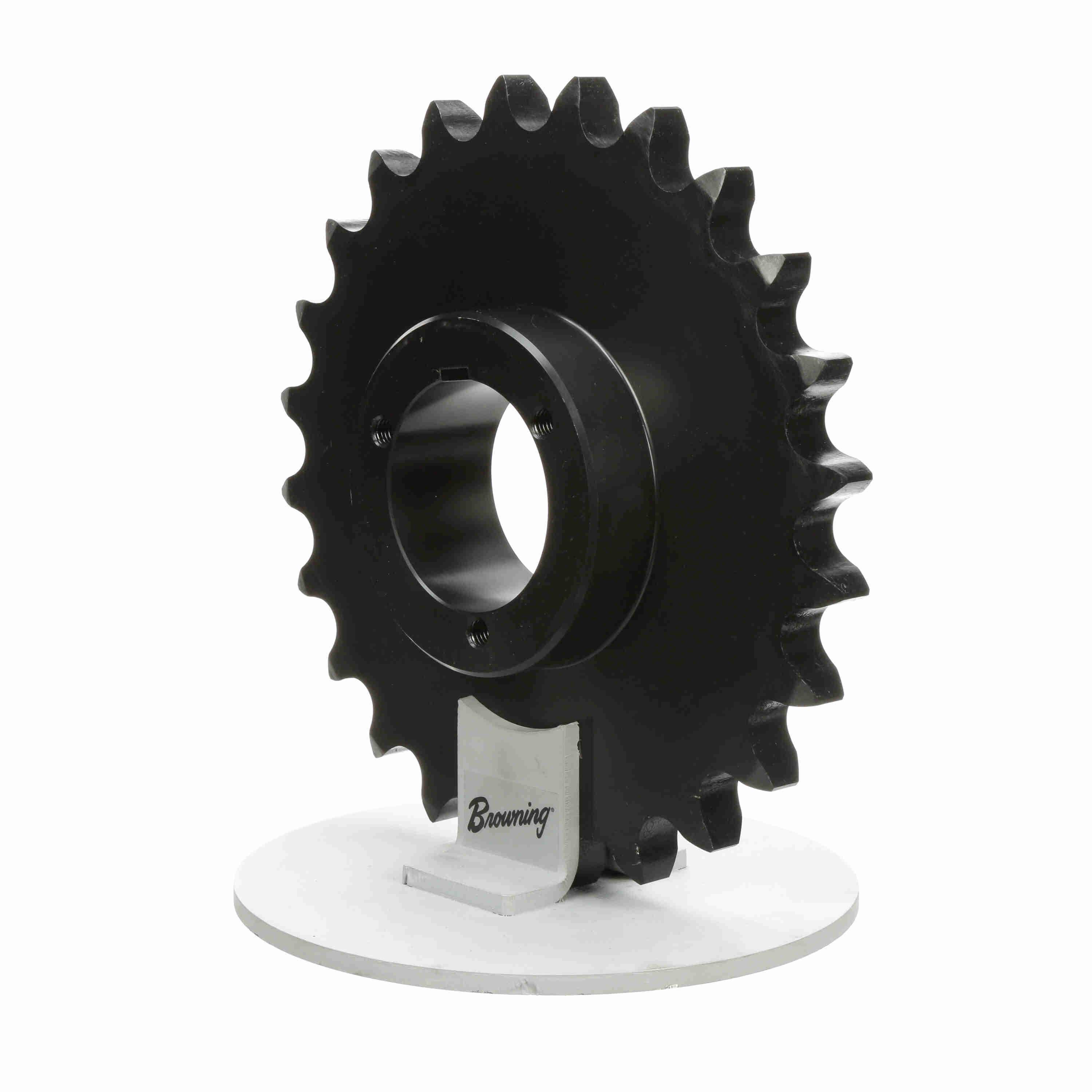

Browning® 1178599 Single Strand Split Taper Bushed Type 4 Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 10.245 in OD, #100 Chain, 24 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROH100Q24
  • Alt Part Number: H100Q24
  • MPN: 1178599
  • UPC: 662289296453
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 3/4 in Bore Dia, 10.245 in Outside Dia, #100 Chain, 24 Teeth, 9.577 in, 4-1/8 in Hub Dia, 2.8281 in Length Through Bore, Steel

Bore Diameter      :      3/4 in
Chain Size      :      #100
Hub Diameter      :      4-1/8 in
Length Through Bore      :      2.8281 in
Material      :      Steel
Number of Teeth      :      24
Outside Diameter      :      10.245 in
Pitch Diameter      :      9.577 in
Type      :      Single Strand Split Taper Bushed Type 4
  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 1-1/4 in pitch ANSI chain
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore
