Browning® 1178003 BROH60P22
  1. pin-int

Browning® 1178003 BROH60P22

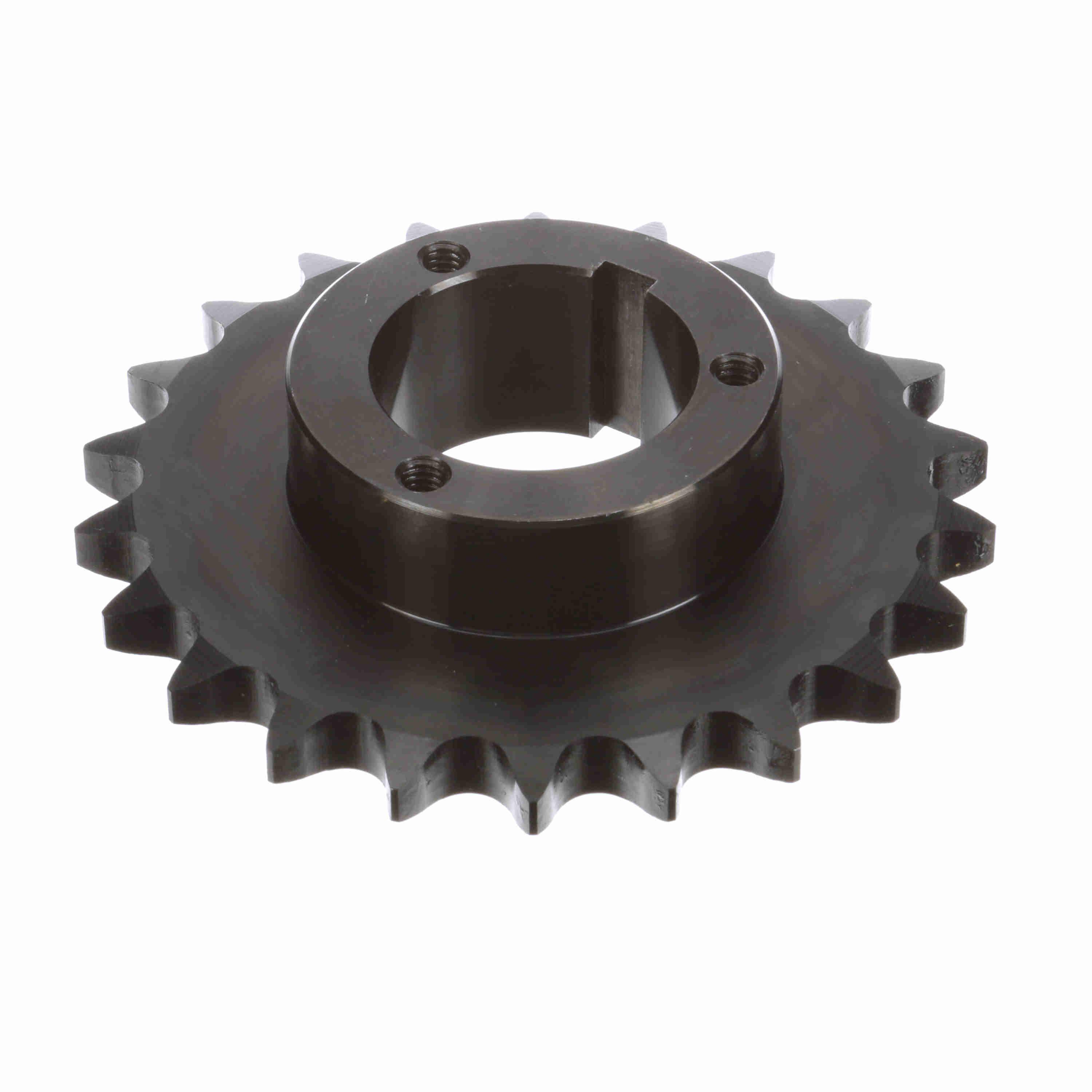

Browning® 1178003 Single Strand Split Taper Bushed Type 4 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 5.666 in OD, #60 Chain, 22 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROH60P22
  • Alt Part Number: H60P22
  • MPN: 1178003
  • UPC: 662289295876
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 1/2 in Bore Dia, 5.666 in Outside Dia, #60 Chain, 22 Teeth, 5.27 in, 3 in Hub Dia, 2.1406 in Length Through Bore, Steel

Bore Diameter      :      1/2 in
Chain Size      :      #60
Hub Diameter      :      3 in
Length Through Bore      :      2.1406 in
Material      :      Steel
Number of Teeth      :      22
Outside Diameter      :      5.666 in
Pitch Diameter      :      5.27 in
Type      :      Single Strand Split Taper Bushed Type 4
  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 3/4 in pitch ANSI chain
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_60Q31_Specification_Sheet.pdf
