Browning® 1177146 BROH40H28
  1. pin-int

Browning® 1177146 BROH40H28

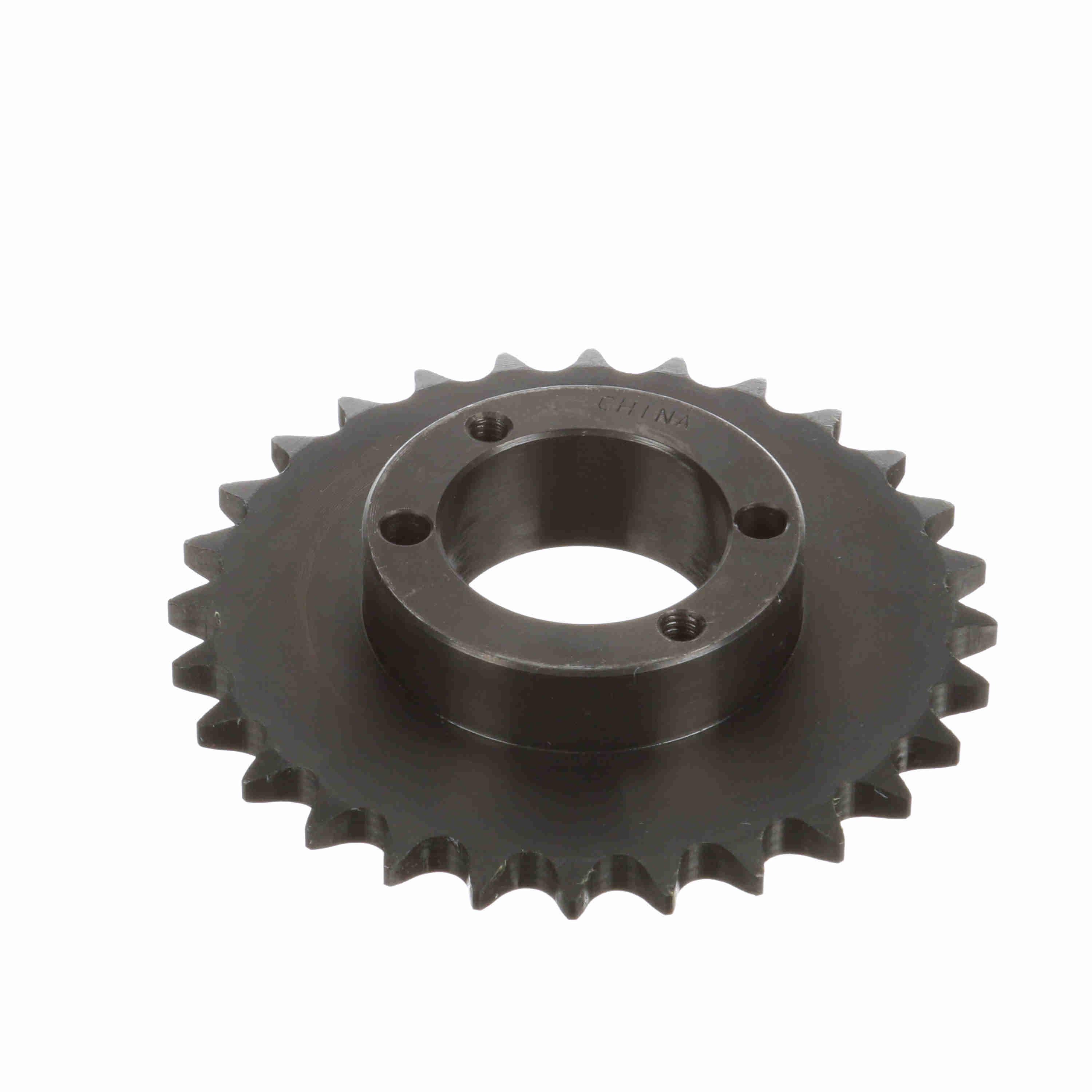

Browning® 1177146 Single Strand Split Taper Bushed Type 3 Roller Chain Sprocket With Hardened Teeth, 3/8 in Dia Bore, 4.738 in OD, #40 Chain, 28 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BROH40H28
  • Alt Part Number: H40H28
  • MPN: 1177146
  • UPC: 662289214860
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 3, 3/8 in Bore Dia, 4.738 in Outside Dia, #40 Chain, 28 Teeth, 4.466 in, 2.494 in Hub Dia, 1.5123 in Length Through Bore, Steel

Bore Diameter      :      3/8 in
Chain Size      :      #40
Hub Diameter      :      2.494 in
Length Through Bore      :      1.5123 in
Material      :      Steel
Number of Teeth      :      28
Outside Diameter      :      4.738 in
Pitch Diameter      :      4.466 in
Type      :      Single Strand Split Taper Bushed Type 3
  • This product has the Browning® exclusive twice the life guarantee
  • Easy installation and removal
  • Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
  • External key higher torque capacity, aligns bolt holes
  • Provides key-to-key drive
  • Double split barrel improved clamping
  • Solid flange true concentricity
  • Longer barrel better support on the shaft
  • For use with 1/2 in pitch ANSI chain
  • Split Taper Bushing are available in popular Inch, Metric and Spline bore
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_40P32_Specification_Sheet.pdf
