Browning® 1176791 BRODS60Q23

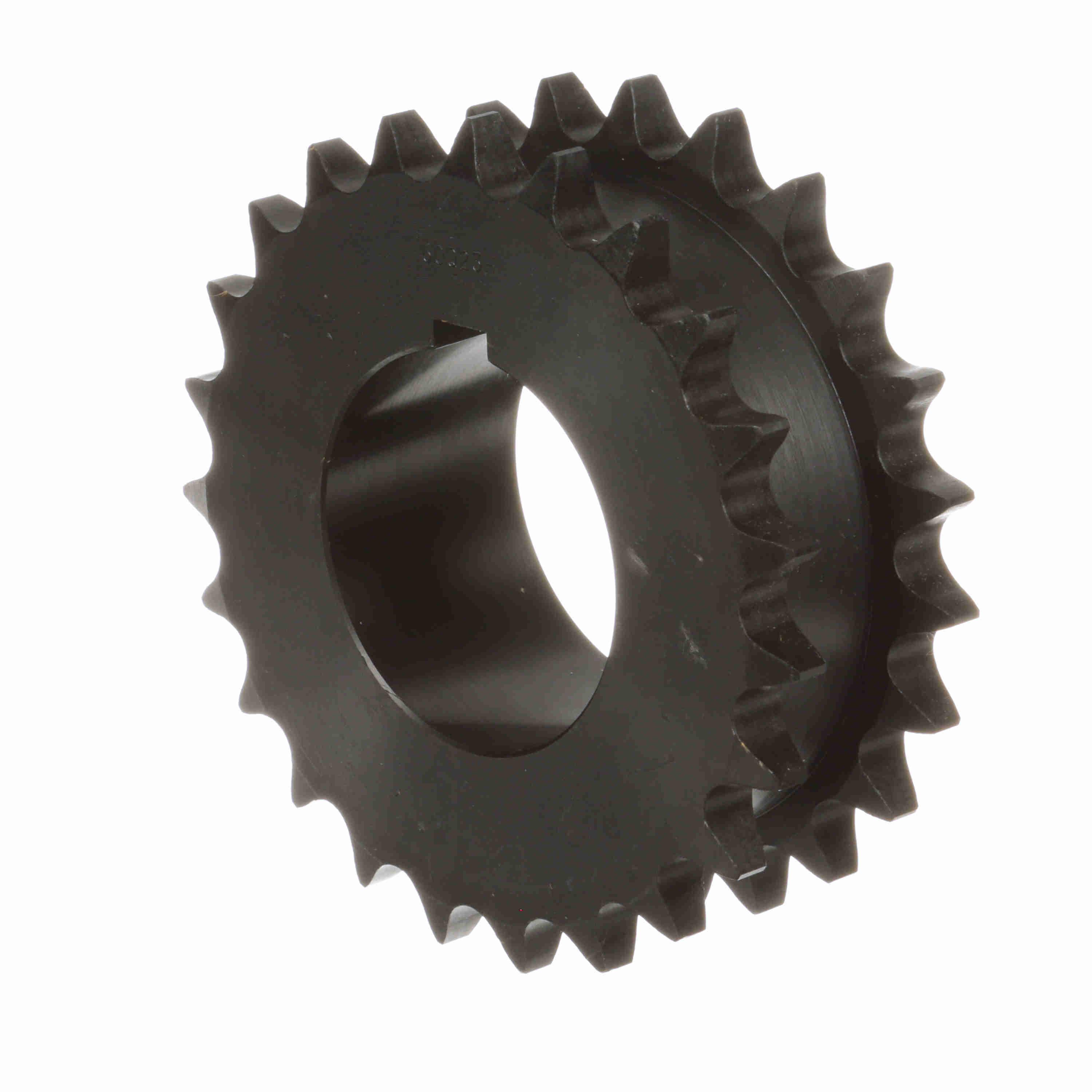

Browning® 1176791 Double Single Strand Type DS-2 Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-11/16 in Dia Bore, 5.907 in OD, 60 Chain, 23 Teeth, 3/4 in Pitch, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRODS60Q23
- Alt Part Number: DS60Q23
- MPN: 1176791
- UPC: 662289148462
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® stock double single sprockets with Split-Taper® bushings are for use with two single strand chains, normally one drive chain and one driven chain as on roll case drives or live roller conveyor drives. They are made of steel, have hardened teeth and are ready to use right off the shelf. No reworking is necessary since they use Browning® Split-Taper® bushings.
Browning® Roller Chain Sprocket, Double Single Strand Type DS-2, 3/4 to 2-11/16 in Bore, 5.907 in OD, 60 Chain, 23 Teeth, 5.508 in Pitch Diameter, 3.0313 in Length Through Bore, Steel
| Bore Diameter | : | 3/4 to 2-11/16 in |
| Chain Size | : | 60 |
| Length Through Bore | : | 3.0313 in |
| Material | : | Steel |
| Number of Teeth | : | 23 |
| Outside Diameter | : | 5.907 in |
| Pitch Diameter | : | 5.508 in |
| Type | : | Double Single Strand Type DS-2 |
- This product has the Browning® exclusive twice the life guarantee
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 3/4 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
Warranty Information
