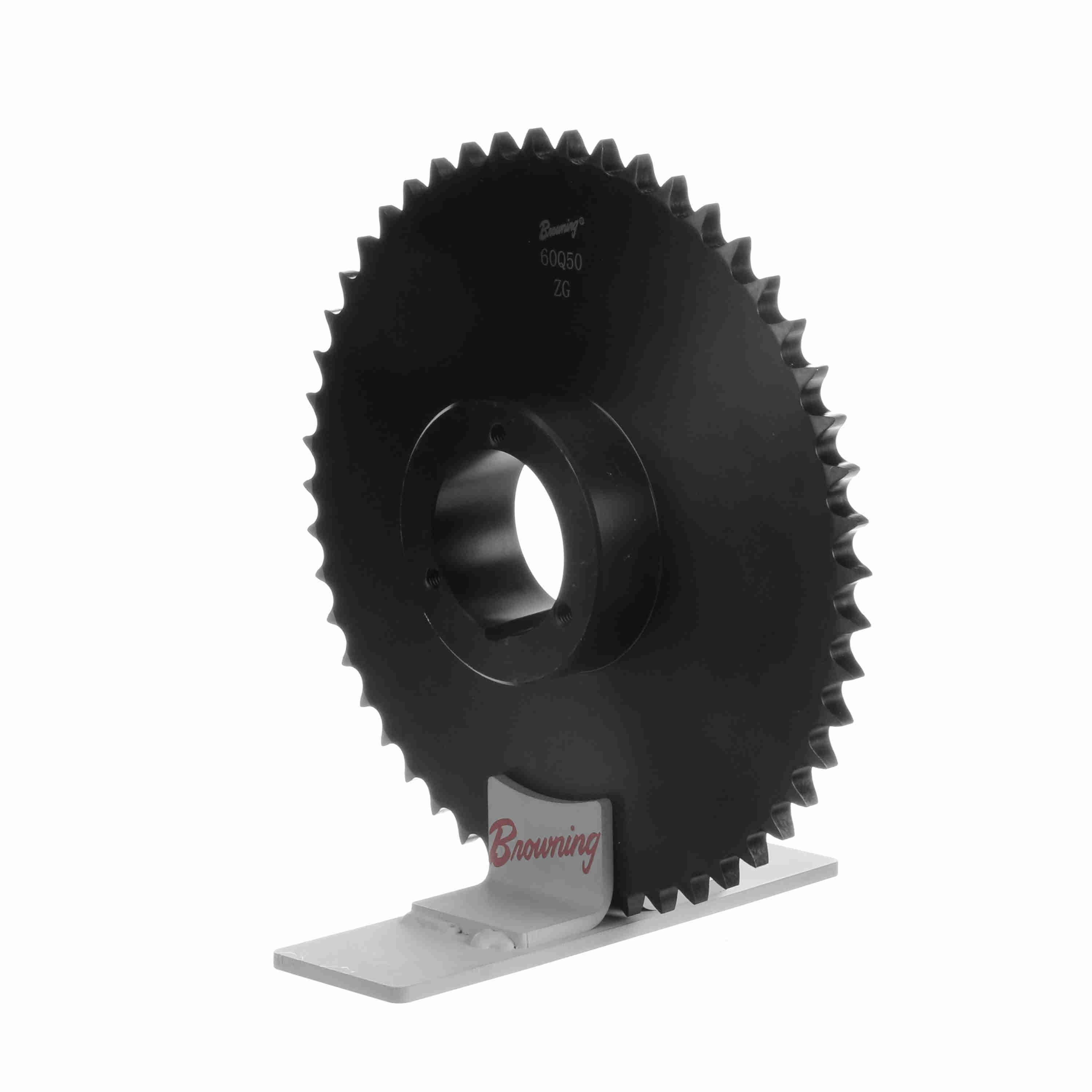

Browning® 1171461 BRO60Q50
Browning® 1171461 Single Strand Roller Chain Sprocket, 3/4 in Dia Bore, 12.371 in OD, #60 Chain, 50 Teeth, 3/4 in Pitch, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BRO60Q50
- Alt Part Number: 60Q50
- MPN: 1171461
- UPC: 662289146369
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand, 3/4 in Bore Dia, 12.371 in Outside Dia, #60 Chain, 50 Teeth, 3/4 in Pitch, 11.944 in, 4-1/8 in Hub Dia, 2-1/2 in Length Through Bore, Type 4 Split Taper Bushing, Steel
| Bore Diameter | : | 3/4 in |
| Bushing Type | : | Type 4 Split Taper |
| Chain Size | : | #60 |
| Hub Diameter | : | 4-1/8 in |
| Length Through Bore | : | 2-1/2 in |
| Material | : | Steel |
| Number of Teeth | : | 50 |
| Outside Diameter | : | 12.371 in |
| Pitch Diameter | : | 11.944 in |
| Pitch | : | 3/4 in |
| Type | : | Single Strand |
- Item Features 01=This product has the Browning® exclusive twice the life guarantee
- Item Features 02=Easy installation and removal
- Item Features 03=External key higher torque capacity, aligns bolt holes
- Item Features 04=Provides key-to-key drive
- Item Features 05=Double split barrel improved clamping
- Item Features 06=Solid flange true concentricity
- Item Features 07=Longer barrel better support on the shaft
- Item Features 08=For use with 3/4 in pitch ANSI chain
- Item Features 09=Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Item Features 10=Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Item Features 11=Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
Specification Sheet
