Browning® 1171404 BRO60Q41
  1. pin-int

Browning® 1171404 BRO60Q41

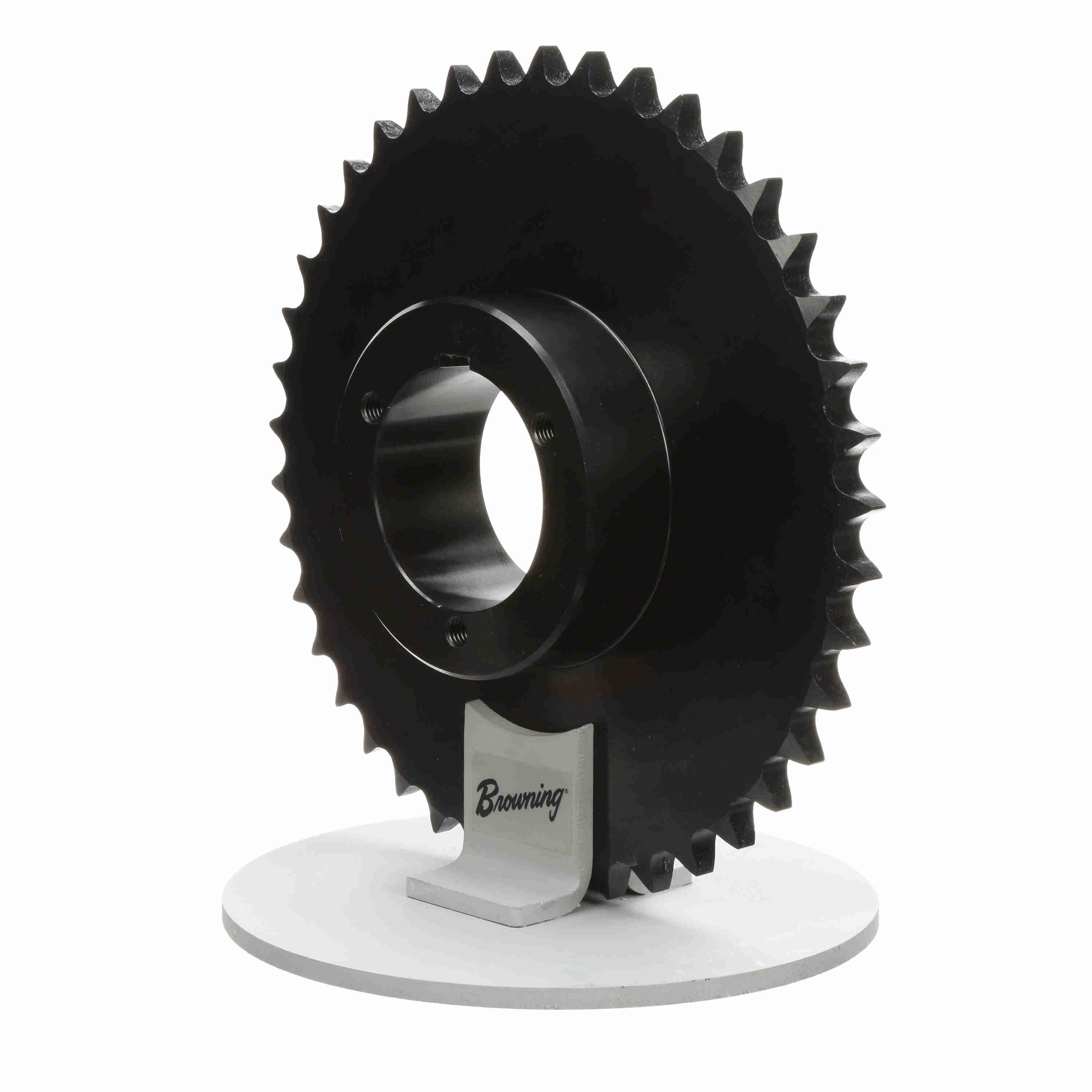

Browning® 1171404 Single Strand Split Taper Bushed Type 4 Roller Chain Sprocket, 3/4 in Dia Bore, 10.219 in OD, #60 Chain, 41 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: BRO60Q41
  • Alt Part Number: 60Q41
  • MPN: 1171404
  • UPC: 662289126378
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Split Taper Bushed Type 4, 3/4 in Bore Dia, 10.219 in Outside Dia, #60 Chain, 41 Teeth, 9.798 in, 4-1/8 in Hub Dia, 2.8281 in Length Through Bore, Steel

Bore Diameter      :      3/4 in
Chain Size      :      #60
Hub Diameter      :      4-1/8 in
Length Through Bore      :      2.8281 in
Material      :      Steel
Number of Teeth      :      41
Outside Diameter      :      10.219 in
Pitch Diameter      :      9.798 in
Type      :      Single Strand Split Taper Bushed Type 4
  • Item Features 01=Split Taper Bushing are available in popular Inch, Metric and Spline bore
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1171420_Catalog.pdf
