Browning® 1128578 MORH50103/4
  1. pin-int

Browning® 1128578 MORH50103/4

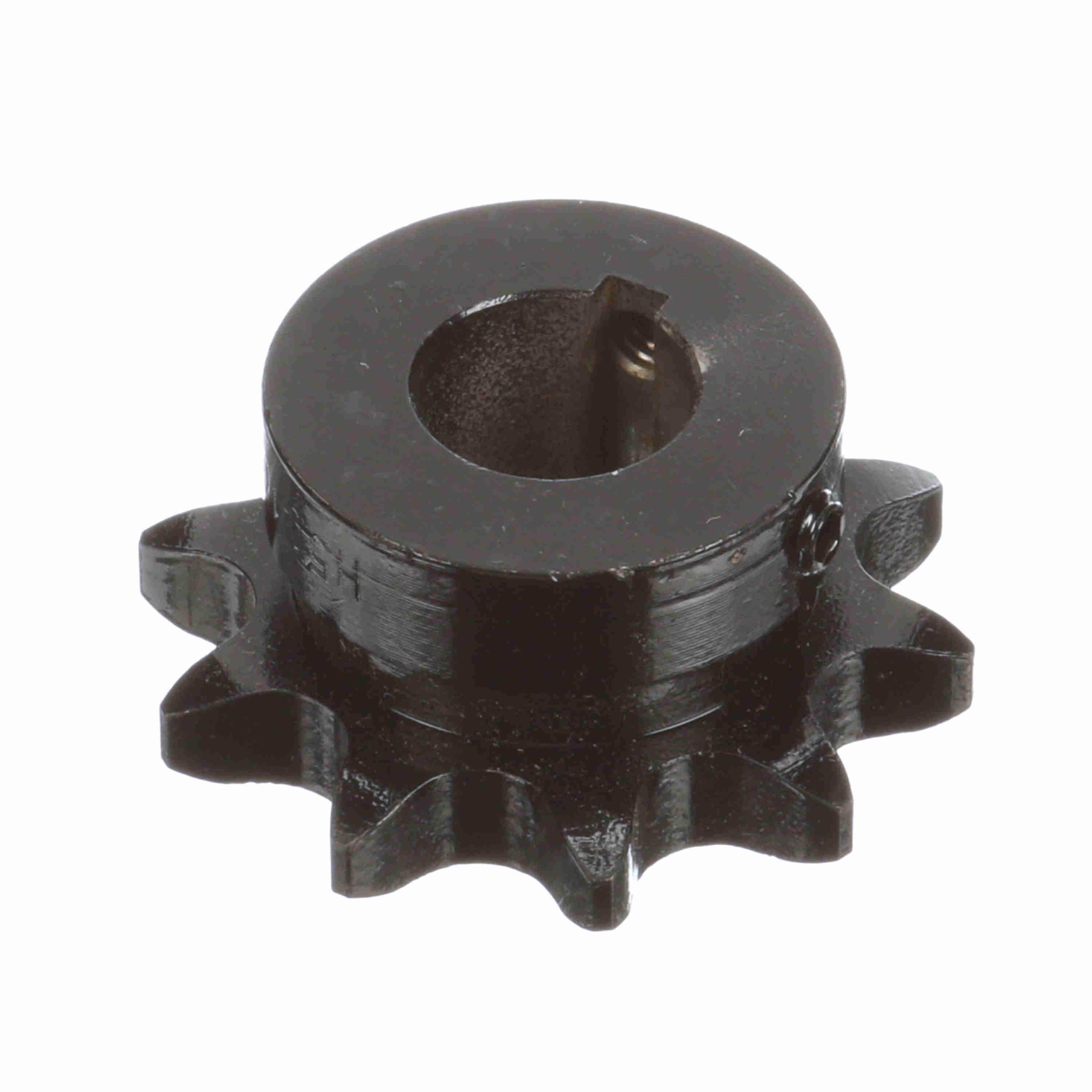

Browning® 1128578 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 3/4 in Dia Bore, 2.3 in OD, #50 Chain, 10 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH50103/4
  • Alt Part Number: H5010X3/4
  • MPN: 1128578
  • UPC: 662289163519
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 3/4 in Bore, 2.3 in OD, #50 Chain, 10 Teeth, 2.023 in Pitch Diameter, 1.5938 in Diameter Hub, 3/16 x 3/32 in Keyway, 1.016 in Length Through Bore, Steel

Bore Diameter      :      3/4 in
Chain Size      :      #50
Hub Diameter      :      1.5938 in
Keyway Size      :      3/16 x 3/32 in
Length Through Bore      :      1.016 in
Material      :      Steel
Number of Teeth      :      10
Outside Diameter      :      2.3 in
Pitch Diameter      :      2.023 in
Type      :      Single Strand Finished Bore Type 1
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 5/8 in pitch ANSI chain
  • Additional setscrew at 90 and 180 deg to keyway
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_H509X58_Specification_Sheet.pdf
