Browning® 1128438 MORH40231

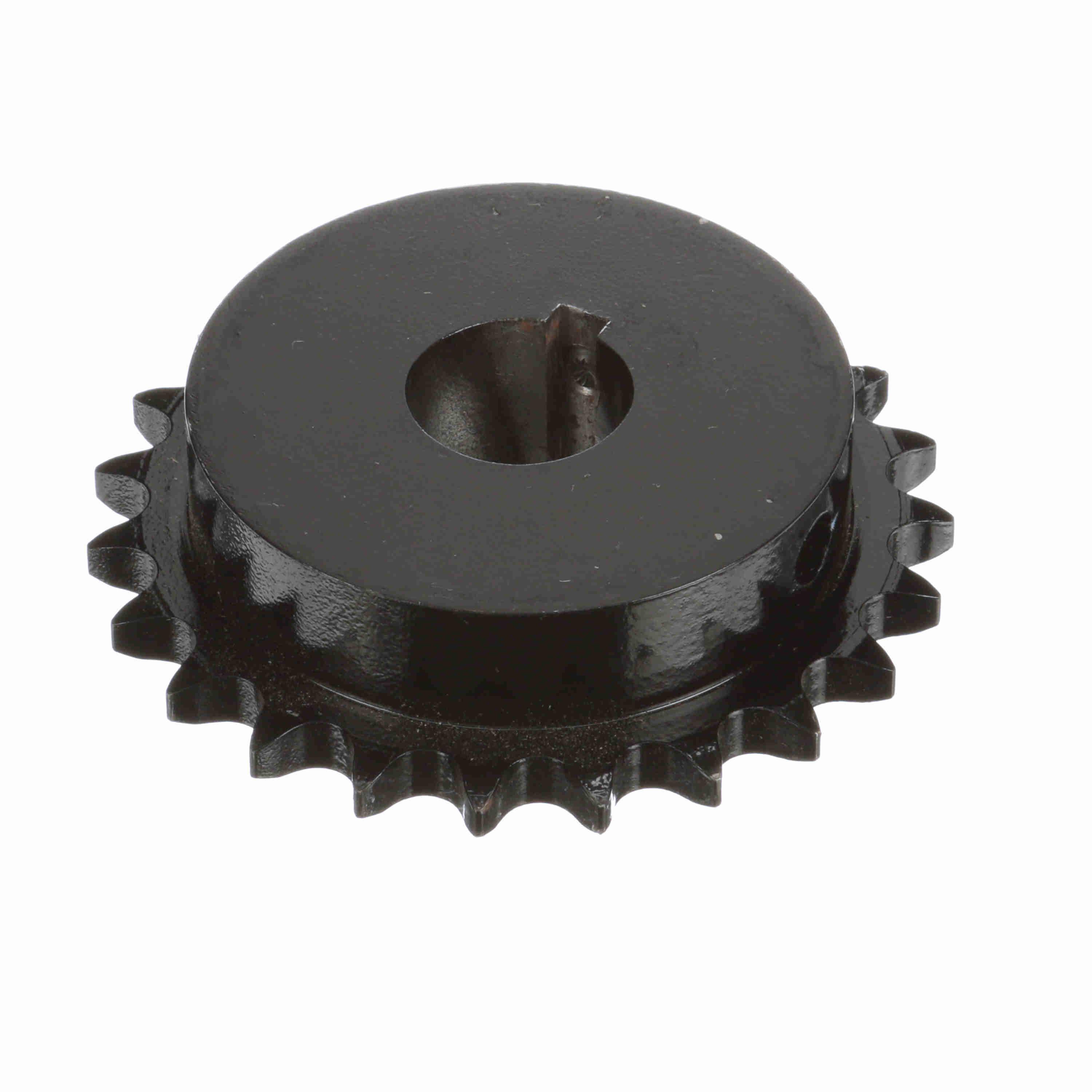

Browning® 1128438 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1 in Dia Bore, 3.94 in OD, #40 Chain, 23 Teeth, 1/2 in Pitch, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: MORH40231
- Alt Part Number: H4023X1
- MPN: 1128438
- UPC: 662289153350
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1 in Bore, 3.94 in OD, #40 Chain, 23 Teeth, 3.672 in Pitch Diameter, 3.016 in Diameter Hub, 1/4 x 1/8 in Keyway, 1 in Length Through Bore, Steel
| Bore Diameter | : | 1 in |
| Chain Size | : | #40 |
| Hub Diameter | : | 3.016 in |
| Keyway Size | : | 1/4 x 1/8 in |
| Length Through Bore | : | 1 in |
| Material | : | Steel |
| Number of Teeth | : | 23 |
| Outside Diameter | : | 3.94 in |
| Pitch Diameter | : | 3.672 in |
| Type | : | Single Strand Finished Bore Type 1 |
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
