Browning® 1128032 MORH40121
  1. pin-int

Browning® 1128032 MORH40121

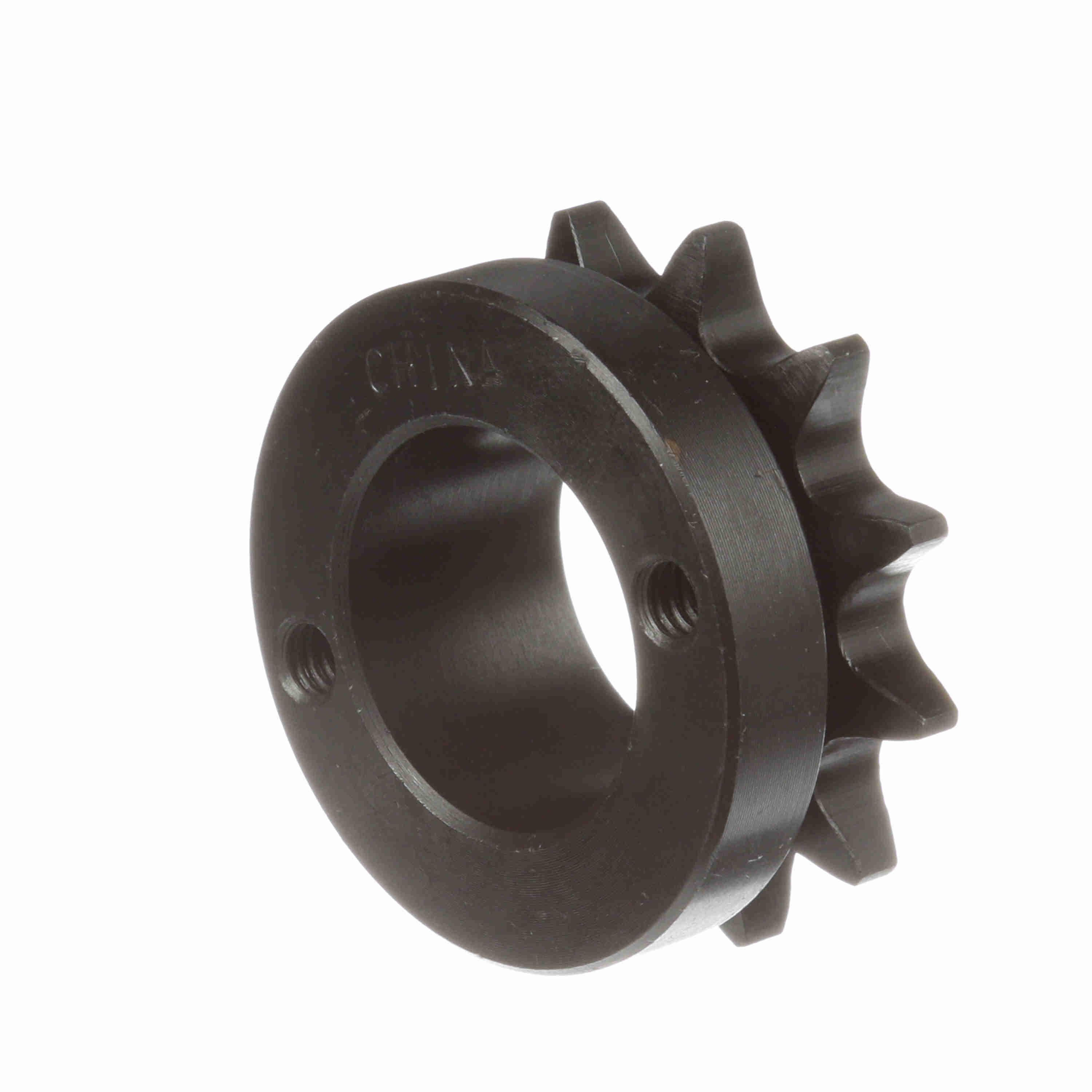

Browning® 1128032 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1 in Dia Bore, 2.166 in OD, #40 Chain, 12 Teeth, 1/2 in Pitch, Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Browning®
  • Part Number: MORH40121
  • Alt Part Number: H4012X1
  • MPN: 1128032
  • UPC: 662289272914
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1 in Bore Dia, 2.166 in Outside Dia, #40 Chain, 12 Teeth, 1/2 in Pitch, 1.932 in, 1.609 in Hub Dia, 1/4 x 1/8 in Keyway, 0.891 in Length Through Bore, Steel

Bore Diameter      :      1 in
Chain Size      :      #40
Hub Diameter      :      1.609 in
Keyway Size      :      1/4 x 1/8 in
Length Through Bore      :      0.891 in
Material      :      Steel
Number of Teeth      :      12
Outside Diameter      :      2.166 in
Pitch Diameter      :      1.932 in
Pitch      :      1/2 in
Type      :      Single Strand Finished Bore Type 1
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 1/2 in pitch ANSI chain
  • Additional setscrew at 90 deg to keyway
  • This Product has the Browning Exclusive Twice the Life Guarantee
  • Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
