Browning® 1090133 BROBX144

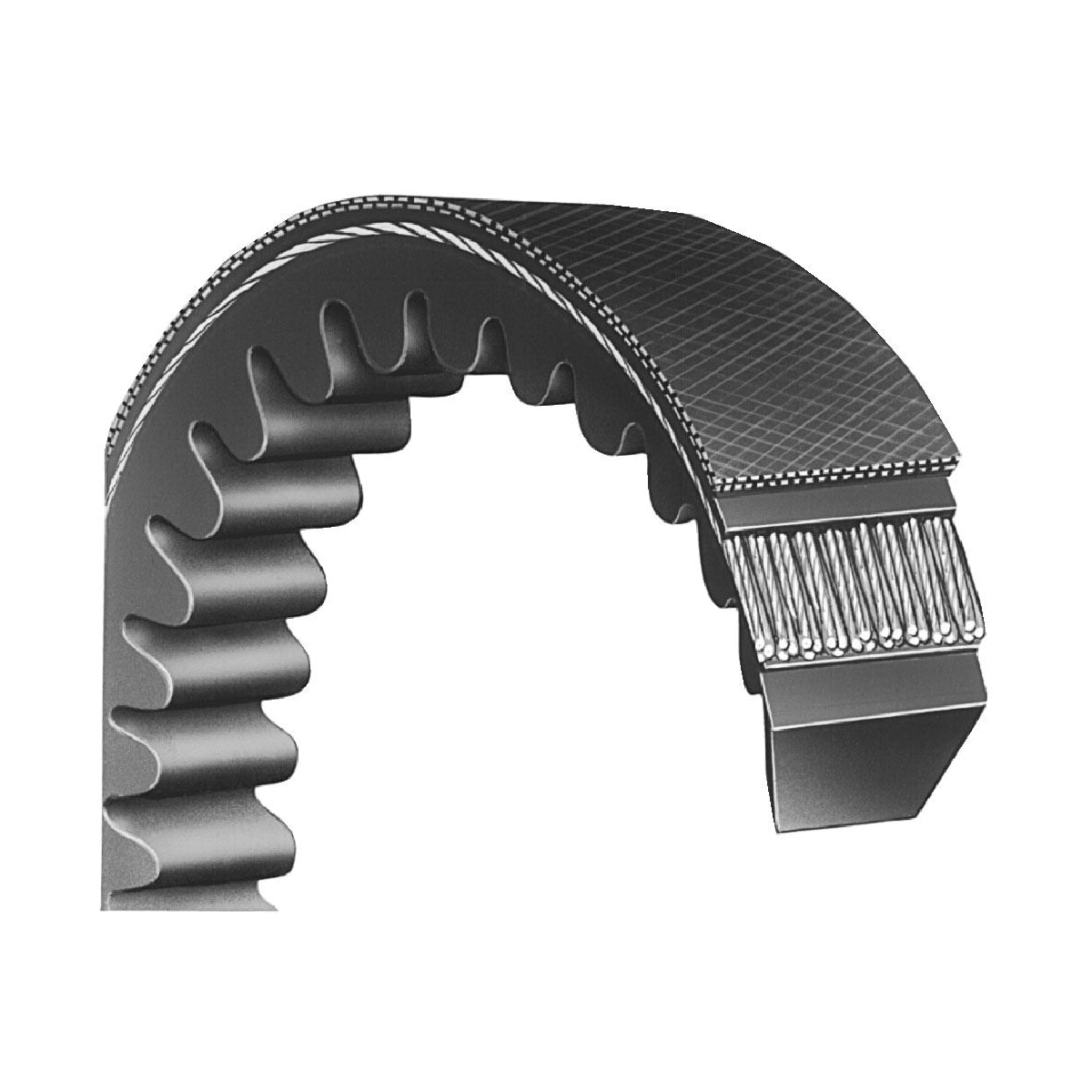

Browning® Gripnotch® 1090133 Cogged V-Belt, BX Section, 21/32 in W Top, 147 in L Outside, 0.41 in THK, EPDM
- Manufacturer: Regal Rexnord
- Brand Name: Browning®
- Part Number: BROBX144
- Alt Part Number: BX144
- MPN: 1090133
- UPC: 662289145393
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Browning® Classical V-Belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.
Browning® Gripnotch® V-Belt, Cogged, BX Section, 21/32 in Top Width, 147 in Outside Length, 0.41 in Thickness, 1 Rib, 230 deg F, EPDM, Nylon Reinforced
| Material | : | EPDM |
| Number of Ribs | : | 1 |
| Outside Length | : | 147 in |
| Reinforced Material | : | Nylon |
| Section Size | : | BX |
| Temperature Range | : | 230 deg F |
| Thickness | : | 0.41 in |
| Top Width | : | 21/32 in |
| Type | : | Cogged |
- EPDM Material provides expanded operating temperature range to -60F degrees to 250F degrees which helps ensure long-life and reliable performance in the moste demanding climates and heat sensitive applications
- Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the "Code 1 in Match belt system on all classical and "358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Assures less vibration and Smoother , quieter performance
- Notched belts provide higher horsepower than wrapped belts
