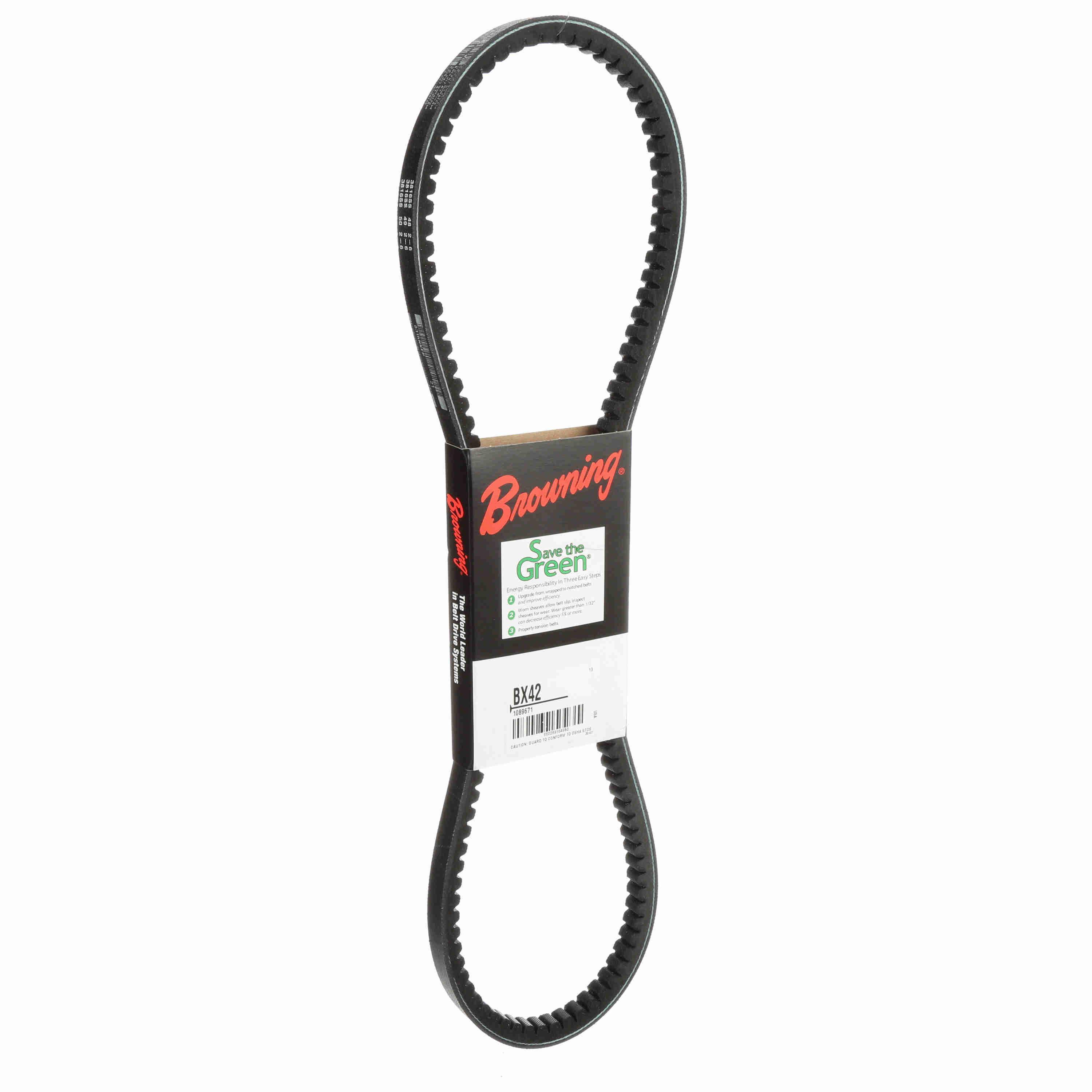

Browning® 1089671 BROBX42

Browning® Classical V-Belts are designed to deliver maximum performance and service life. Classical belts feature single wrap design, which provides greater flexibility when using small diameter sheaves. Classical single wrap V-Belts also have less fabric overlap, which reduces center distance variation and vibration. For energy conscious users, our AX/BX molded notched/cogged V-Belts are up to 3% more efficient than the wrapped designs. Additionally, they are offered in all standard sizes.

Browning® Gripnotch® V-Belt, Cogged, BX Section, 21/32 in Top Width, 45 in Outside Length, 0.41 in Thickness, 1 Rib, 230 deg F, EPDM, Nylon Reinforced

• Precision molded cogs - provide more surface area for heat dissipation and increase belt flexibility
• Browning® notched belts assure longer life when replacing existing wrapped V-belts
• Close belt tolerance - Browning® belts offer the "Code 1" match belt system on all classical and "358" belts, allowing easy selection of just one match number for each belt size
• High tensile cord-specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
• Raw edge sidewalls - improved gripping contract with pulley sidewalls
• Notched belts provide higher horsepower than wrapped belts
• Static conducting
• Oil and heat resistant
• EPDM Material provides expanded operating temperature range to -60F degrees to 250F degrees which helps ensure long-life and reliable performance in the moste demanding climates and heat sensitive applications
• Cooler running means longer life
• This ensures tighter than RMA standards
• Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
• Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
• Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
• No Maintenance Needed, The latest TorqTitan V-Belts need no re-tensioning or maintenance after installation
• Increased Power, With 30 Percent more horsepower, they enable smaller, cost-effective drive designs
• Durable Material, Constructed from EPDM material, they operate reliably in temperatures from -40 deg F to 248 deg F
• Enhanced Grip, Raw-edge sidewalls enhance grip for smoother, quieter performance

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1004910_Installation_Manual.pdf
